Telemecanique

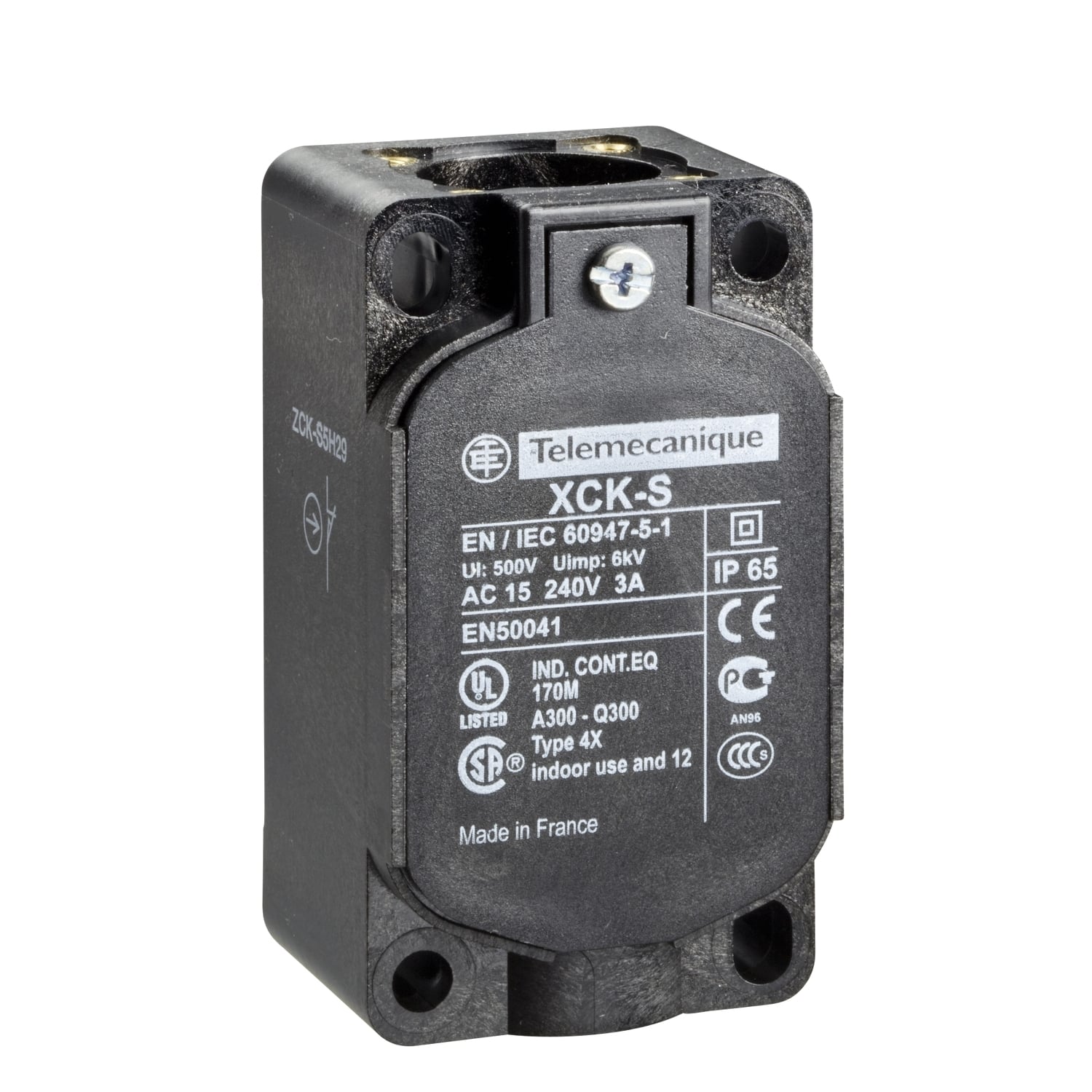

ZCKS1H29 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKS Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP65/IK03 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKS1H29
UPC:
785901497660
Item #:
188517

Availability

Location Available Qty
Available Available to Order
$75.28 each

Limit switch body, Limit switches XC Standard, ZCKS, 1NC+1 NO, snap action, M20

Manuals and Documentation
Catalog Number ZCKS1H29
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKS
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure IP65
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK03,IP65
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879982&lang=en-us
UPC 785901497660
GTIN 03389110973105
Item Type Limit switch body
Size 1.42
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
