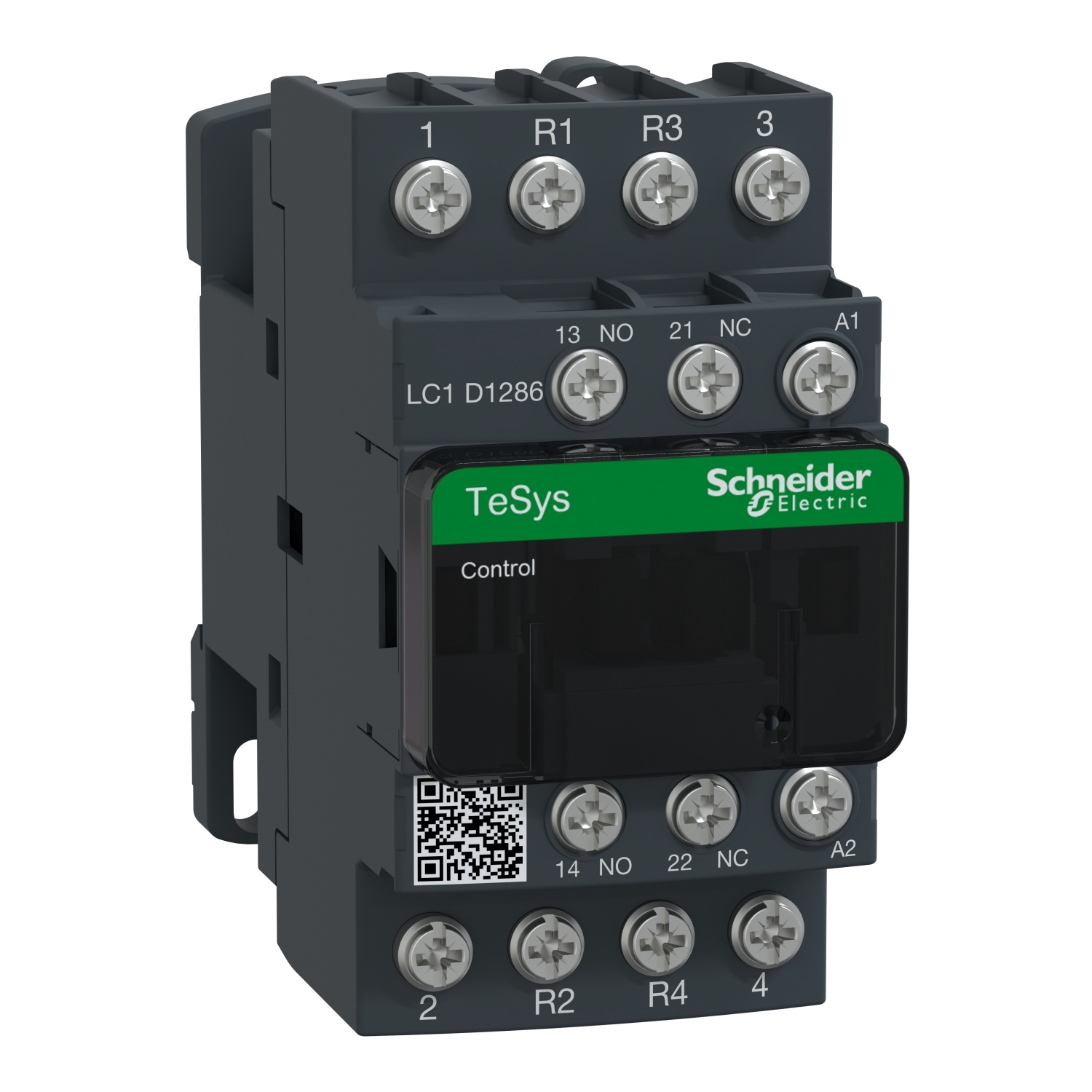

LC1D1286U7 TeSys D Contactor With Safety Cover, 240 V AC V Coil, 25 A, 2NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D1286U7
- Item #:
- 187899
LC1D1286U7 TeSys D Contactor With Safety Cover, 240 V AC V Coil, 25 A, 2NO Contact, 4 Poles
- MFR #:
- LC1D1286U7
- Item #:
- 187899
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 25A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D1286U7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 240 V AC 50/60 Hz |
| Connection | Control circuit: lugs-ring terminals - external diameter: 8 mm;power circuit: lugs-ring terminals - external diameter: 8 mm |
| Contact Configuration | 1 NO + 1 NC;2 NO + 2 NC;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613422&lang=en-us |
| GTIN | 03389110288285 |
| Item Type | Contactor |
