Hubbell Wiring Device - Kellems

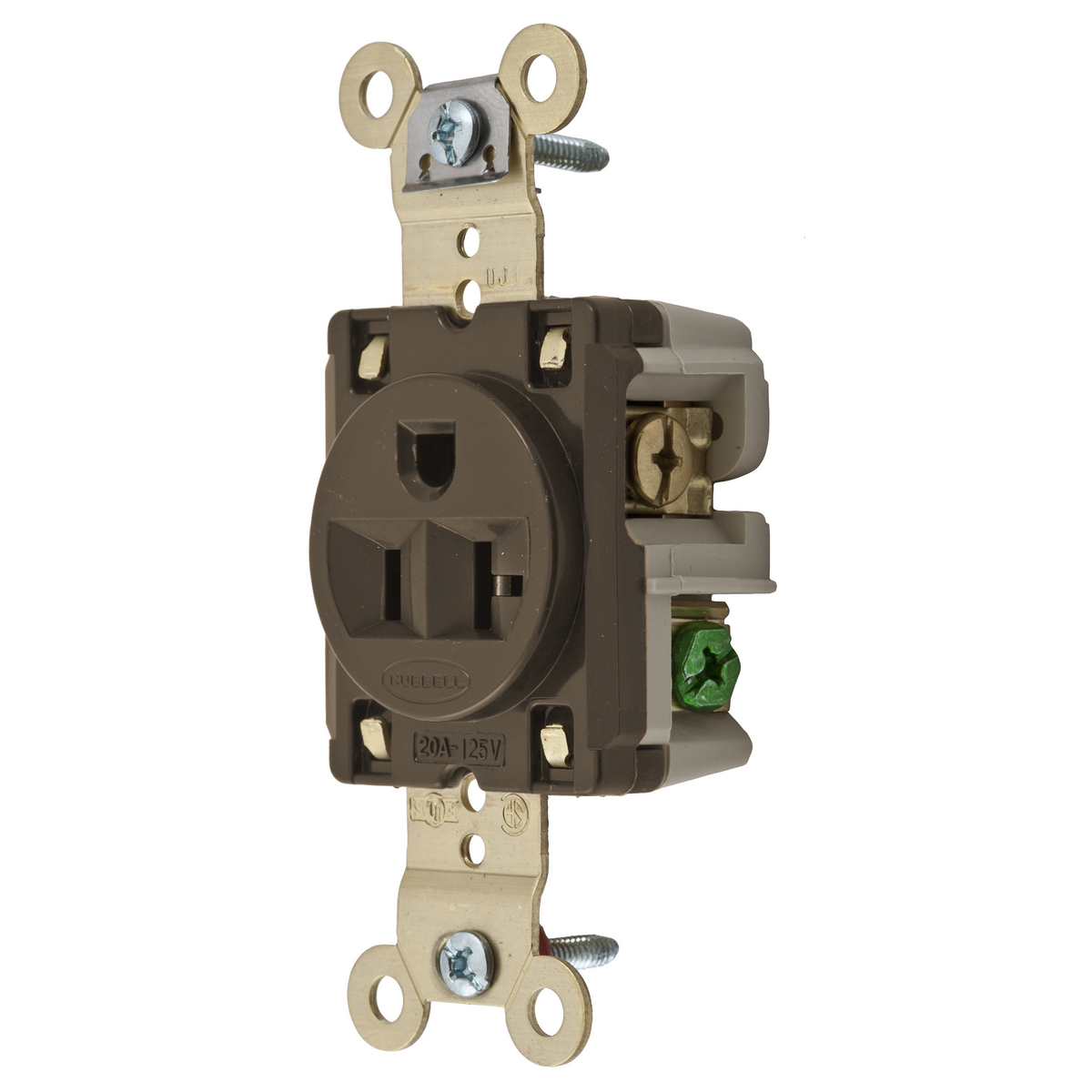

HBL5361 1-Phase Single Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL5361
UPC:
783585013909
Item #:
186491

Availability

Location Available Qty
Available 67 ea
$40.65 each

HBL Extra Heavy Duty Max Industrial Series - Hubbells commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.

Manuals and Documentation
Catalog Number HBL5361
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 20
Application Extra Heavy Duty Specification Grade
Color Brown
Connection Back and Side Wired Screw Terminals
Material Thermoplastic/Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Self Grounding
Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585013909
GTIN 00783585013909
Item Type Single Receptacle
Size 3.28 in x 1.63 in x 1.19 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG to #10 AWG
