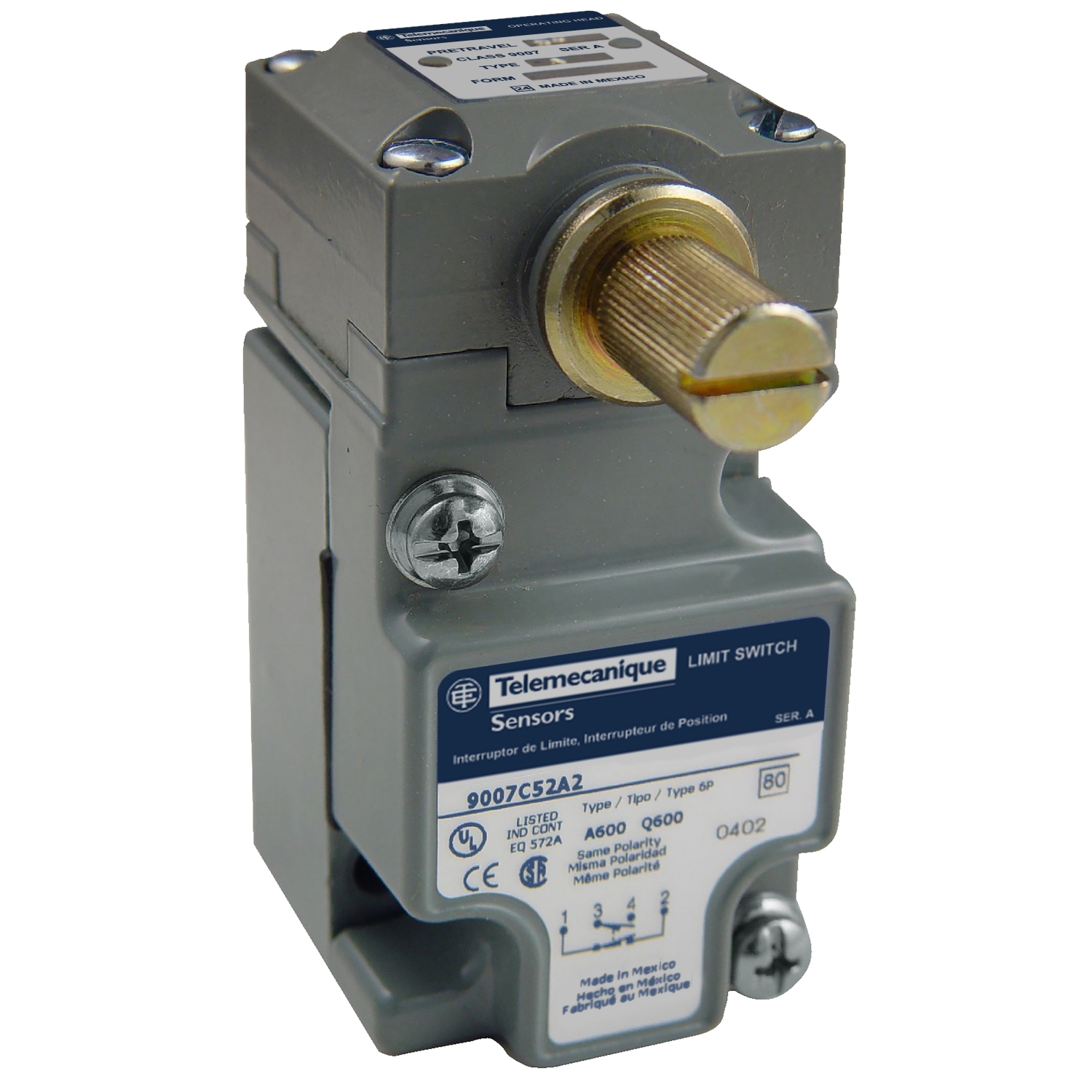

NEMA limit switch, 9007C, maintained contact rotary lever arm head
NEMA limit switch, 9007C, maintained contact rotary lever arm head
| Location | Available Qty |
|---|---|
| Available | Available to Order |
These industrial heavy duty limit switches are applied in almost any environments. This replacement maintained lever arm rotary limit switch head can be used on any of the 9007C bodies types. The limit switch head will actuate the snap action contacts when the lever arm is turned in the clockwise direction. The limit switch head will reset when the lever arm is moved in the counterclockwise direction. This limit switch head is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when properly assembled to a 9007C body. It is also rated IP67. Limit switch head is UL listed and CSA certified. It weighs 0.19kg. It is compatible with 9007C heavy duty metal limit switches. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Manuals and Documentation
- Catalog Number
- 9007C
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- 9007C
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Action
- Lateral approach, 1 direction programmable;CW and CCW;from left and right
- Actuator
- Stay put without operating lever zinc -
- Application
- 9007C
- Standard
- UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED
- UPC
- 785901811992
- GTIN
- 00785901811992
- Item Type
- Limit switch head
- Environmental Conditions
- STANDARD ENVIRONMENT
- Operating Temperature
- -20-185 A Degrees F
