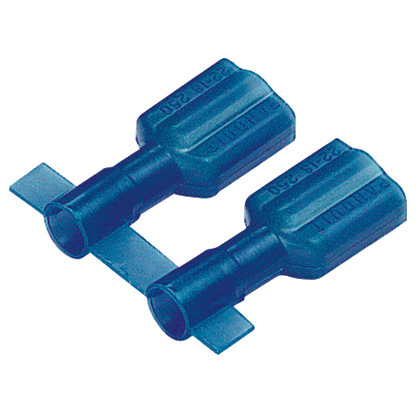

Reel Smart DNF14-206FIB-3K Disconnect, Blue, Nylon, 14-16 AWG
- MFR:
- Panduit
- MFR #:
- DNF14-206FIB-3K
- UPC:
- 074983826957
- Item #:
- 185603
Reel Smart DNF14-206FIB-3K Disconnect, Blue, Nylon, 14-16 AWG
- MFR #:
- DNF14-206FIB-3K
- UPC:
- 074983826957
- Item #:
- 185603
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.3873
each
The vibration resistant female disconnect is made of brass and housed in blue, fully insulated nylon standard receptacle housings. It has a tab size of 0.187/0.205 x 0.020 (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.78 (19.8 mm) long and 0.31 (7.9 mm) wide. The disconnect is tin-plated, has a funnel entry configuration and insulation grip sleeve barrel. It comes in bottled packages of 100.
Manuals and Documentation
| Catalog Number | DNF14-206FIB-3K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983826957 |
| GTIN | 00074983826957 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
