Rittal

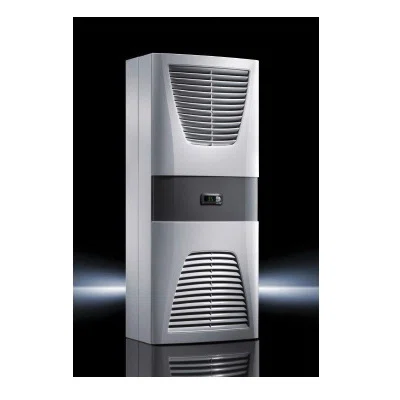

3304540 TopTherm SK Series 3-Phase Cooling Unit, 400/460 V AC, 2.8/2.9 A, 50/60 Hz, NEMA 12/IP34/54 Enclosure, 3070/3343/3753/4265 Btu

MFR:
Rittal
MFR #:
3304540
UPC:
639889000124
Item #:
185366

Availability

Location Available Qty
Available 2 ea
$5,997.70 each

Rittal TopTherm™ Cooling Unit, 3-Phase, Series: SK Series, 400/460 V AC, 2.8/2.9 A, 0.9/0.98/1.1/1.25 kW Power, 50/60 Hz Frequency, 3070/3343/3753/4265 Btu Capacity, NEMA 12/IP34/54 Enclosure, e-Comfort Controller Control, Plug-In Terminal Strip Connection, 10 to 55 deg C, Wall Mounting, Sheet Steel, Light Gray, 37 in H x 16 in W x 10 in D Dimensions

Manuals and Documentation

Features

  • Energy efficient blue e wall mounted cooling units in output categories from 1000 to 1500 W with integral e-comfort controller
  • RiNano coating on the condenser and electrical condensate evaporation as standard
  • 1.1 kW at 50 Hz (L35), 1.25 kW at 60 Hz (L35), 0.98 kW at 50 Hz (L35 L50), 0.9 kW at 60 Hz (L35 L50)
  • 2.8 A at 50 Hz, 2.9 A at 60 Hz
  • 3753 Btu at 50 Hz (L35), 4265 Btu at 60 Hz (L35), 3343 Btu at 50 Hz (L35 L50), 3070 Btu at 60 Hz (L35 L50)
Manufacturer Part Number 3304540
Brand Rittal
Manufacturer Rittal
UPC 639889000124
Amperage Rating 2.8/2.9 A
Color Light Gray
Dimensions 37 in H x 16 in W x 10 in D
Enclosure Type NEMA 12/IP34/54
Material Sheet Steel
Mounting Type Wall
Series SK Series
Temperature Rating 10 to 55 deg C
Type 3-Phase
Voltage Rating 400/460 V AC
Alternative Part Number 8725826
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals RoHS Compliant | UL/cUL Recognized | TUV Approved | CSA Certified | EAC Certified | IEC 60529 | DIN EN 14511
Includes Nano Coated Condenser, Integral Electric Condensate Evaporation, Wired Ready for Connection (Plug-In Terminal Strip), Drilling Template, Fasteners
Capacity Range 3070/3343/3753/4265
Connection Type Plug-In Terminal Strip
Control Type e-Comfort Controller
Frequency Rating 50/60 Hz
Power Rating 0.9/0.98/1.1/1.25
