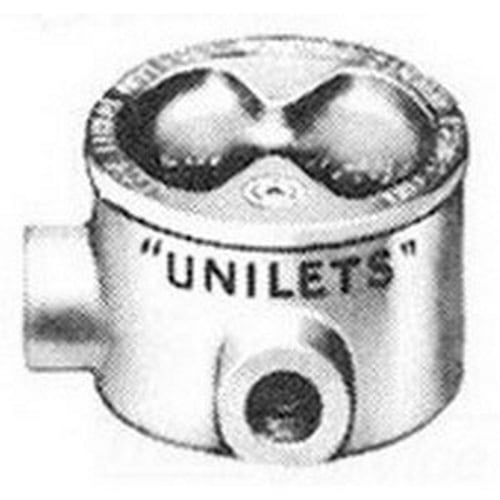

Type L Conduit Body with Cover, 3/4 inch, Malleable Iron Body/Copper-Free Aluminum Cover, Zinc Electroplated
MFR: Appleton Electric
MFR #: GRHL75
UPC: 781381439602
Item #: 184689
Type L Conduit Body with Cover, 3/4 inch, Malleable Iron Body/Copper-Free Aluminum Cover, Zinc Electroplated
MFR #: GRHL75
UPC: 781381439602
Item #: 184689
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$188.53
each
UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRHL Hub, Cubic Capacity: 13.8 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.63 IN, Nema R
Manuals and Documentation
Features
- Accurately tapped, tapered hub threads
- Smooth, rounded integral bushing
- General purpose wiring
- Allow connections for branch runs
- UL listed
- Catalog Number
- GRHL75
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Metal Conduit
- Cable Entry
- (2) 3/4 IN GRHL Hub
- Cubic Capacity
- 13.8 CU IN
- Knockouts
- No
- Material
- Malleable Iron
- Special Features
- Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Internally threaded body with externally threaded covers; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
- Standard
- UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381439602
- GTIN
- 00781381439602
- Item Type
- Outlet Box
- Length
- 5.0000
- Length UOM
- Inch
- Width
- 4.8000
- Width UOM
- Inch
- Height
- 4.1000
- Height UOM
- Inch
- Weight
- 2.630
- Weight UOM
- Pounds
- Size
- 3/4
