Discontinued
Appleton

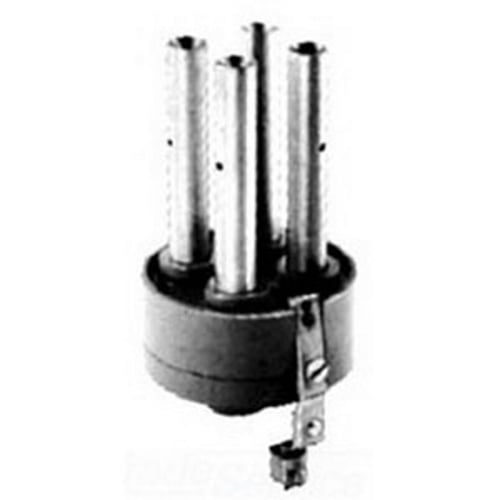

API20044 Powertite 3-Phase Grounding Style 1 Pin and Sleeve Plug Interior, 600/250 VAC/VDC, 200 A, 4 Poles, 4 Wires

MFR:
Appleton Electric
MFR #:
API20044
UPC:
781381131513
Item #:
18439

Availability

Location Available Qty
Available Available to Order

Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum)

Manuals and Documentation

Features

  • Discontinued
Catalog Number API20044
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For ARI20044 Receptacle
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number of Poles 4
Number of Wires 4
Phase 3
Special Features Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381131513
GTIN 00781381131513
Item Type Grounding Style 1 Plug
Environmental Conditions Temperature Rating: -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
