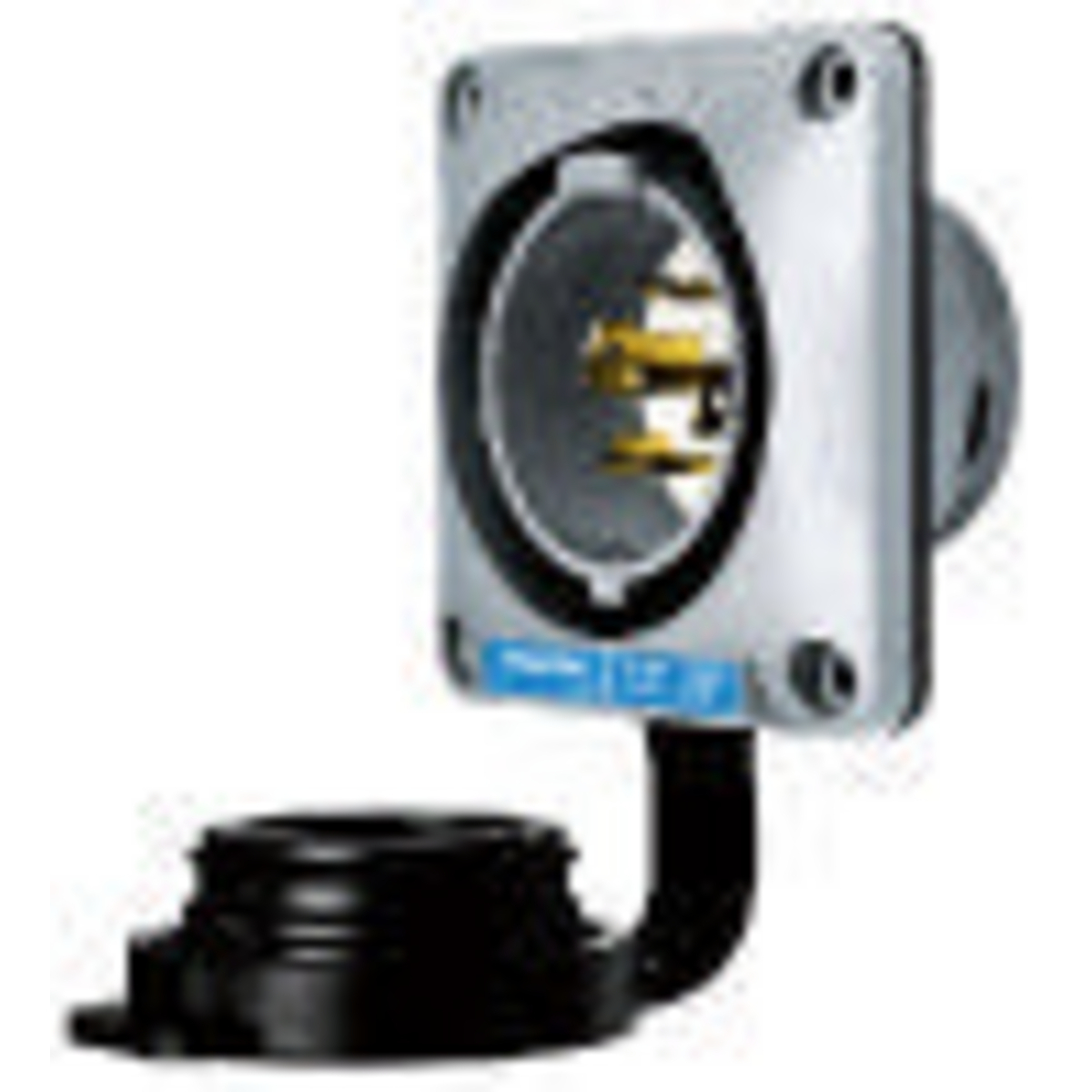

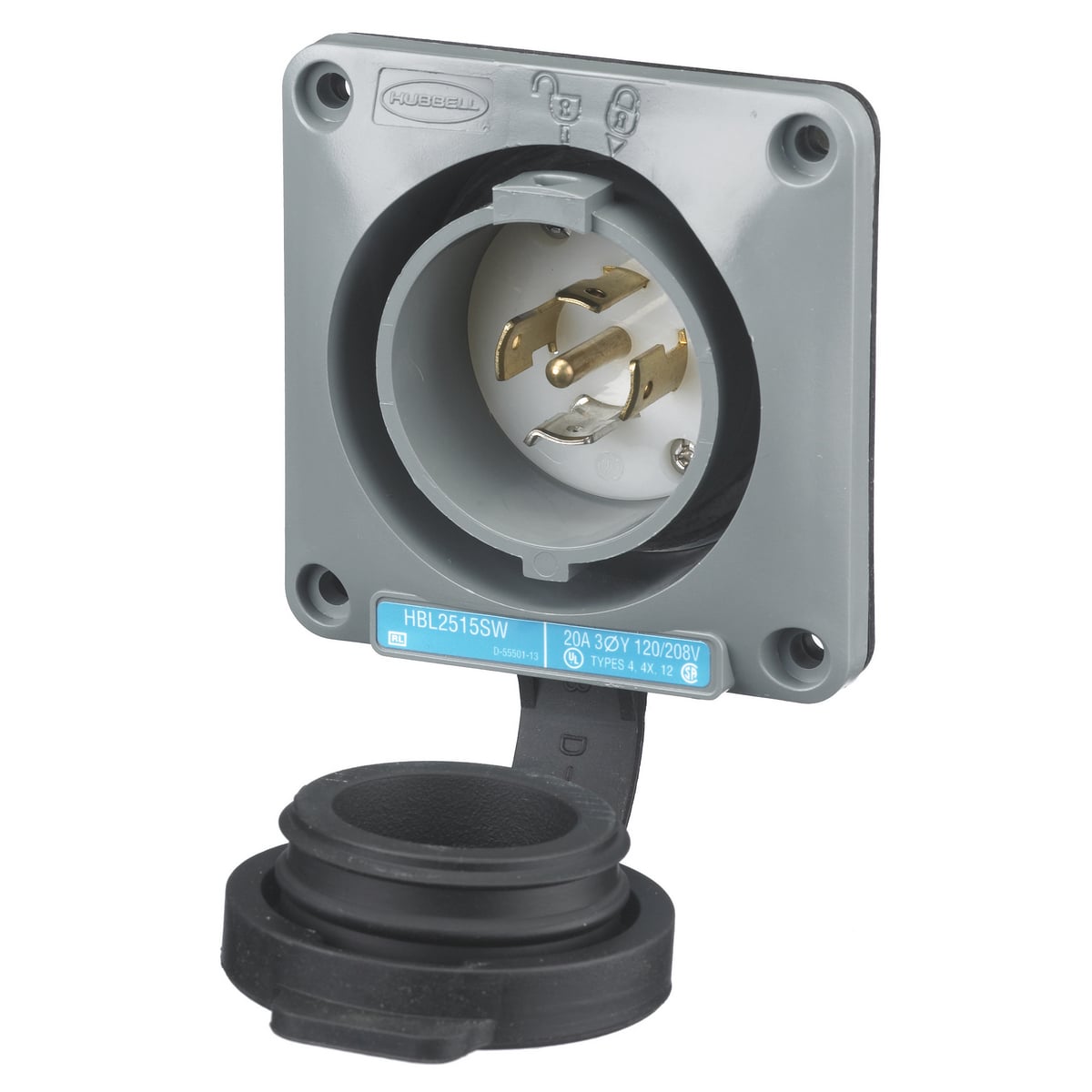

HBL2515SW 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount Locking Flanged Inlet, 120/208 V AC, 20 A, 4 Poles, 5 Wires, Gray/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2515SW
- UPC:
- 783585231563
- Item #:
- 184323
HBL2515SW 3-Phase Grounding Standard Single Shrouded Watertight Screw Mount Locking Flanged Inlet, 120/208 V AC, 20 A, 4 Poles, 5 Wires, Gray/White
- MFR #:
- HBL2515SW
- UPC:
- 783585231563
- Item #:
- 184323
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$147.08
each
Manuals and Documentation
| Catalog Number | HBL2515SW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Extra Heavy Duty Industrial |
| Color | Gray; White |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Thermoplastic |
| Mounting | Screw |
| NEMA Rating | 1 |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Special Features | Shrouded Watertight Construction |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| UPC | 783585231563 |
| GTIN | 00783585231563 |
| Item Type | Flanged Inlet |
| Size | 3.75 in x 3.75 in x 2.44 in |
| Environmental Conditions | Watertight |
| Voltage Rating | 3 Phase WYE 120/208 |
| Wattage | 4,160 W |
| Wire Size | #16 AWG to #8 AWG |
