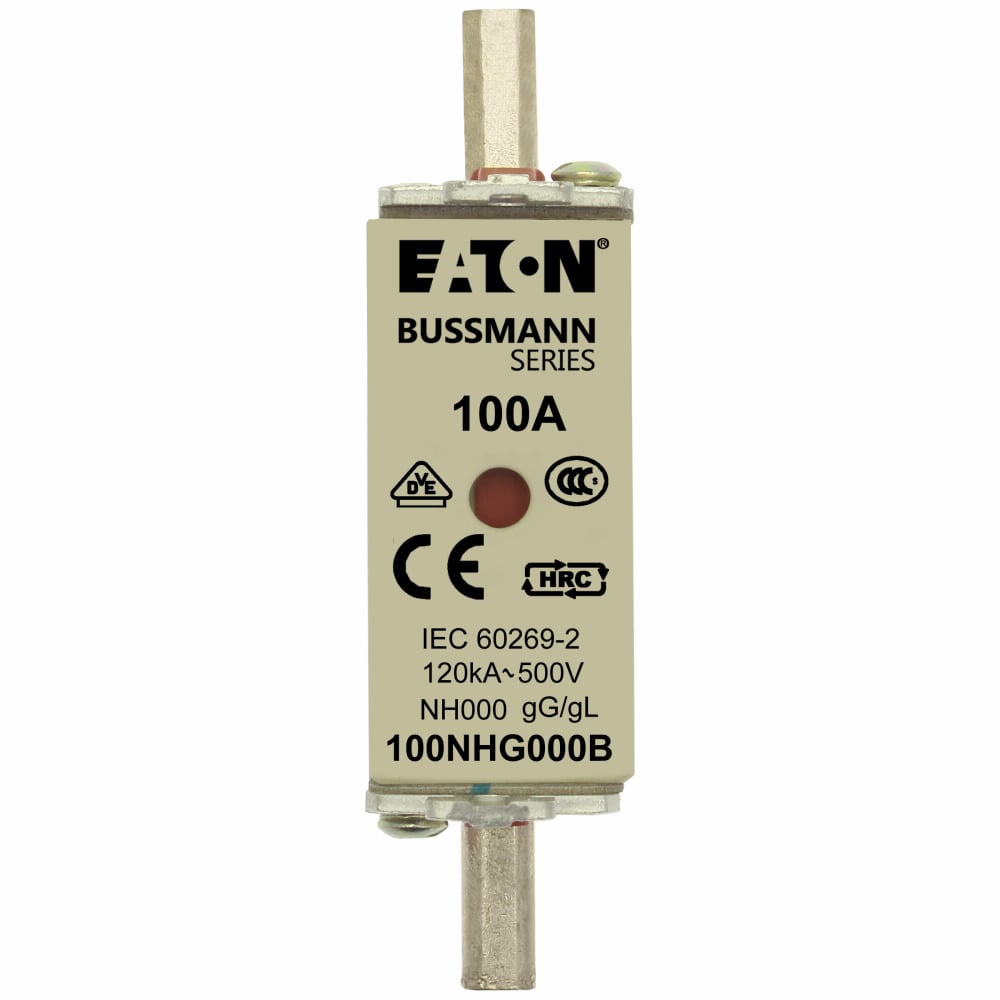

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 100A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, square-body with knife blade contact, Metal plated copper contact plat-100NHG000B
- MFR:
- Eaton Bussmann
- MFR #:
- 100NHG000B
- UPC:
- 051712625869
- Item #:
- 18399
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 100A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, square-body with knife blade contact, Metal plated copper contact plat-100NHG000B
- MFR #:
- 100NHG000B
- UPC:
- 051712625869
- Item #:
- 18399
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$99.32
each
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Manuals and Documentation
| Catalog Number | 100NHG000B |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | India |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs|Ind Facilities & Factories - Facility: Safety and Security Systems|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Ind Facilities & Factories - Facility: Power Distribution and Control|Elec Assemblies, Panels & EOEM - Panel Builders|Elec Assemblies, Panels & EOEM - Control Panels for Machines|Elec Assemblies, Panels & EOEM - Elec Assemblies/Panels/EOEMs - Aftermarket |
| Connection | Blade end |
| Frequency Rating | 45 To 62 Hz |
| Interrupt Rating | 120 kAIC |
| Material | Ceramic body |
| Special Features | Live gripping lug |
| Standard | DIN 43620 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,DIN 43620 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Conformité RoHS,CE-merket,Marquage CE,RoHS-kompatibel,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE |
| UPC | 051712625869 |
| GTIN | 00051712625869 |
| Item Type | Low voltage NH fuse |
| Weight UOM | Grams |
| Size | 78.5 mm Length X 21 mm Width |
| Voltage Rating | 500 V |
