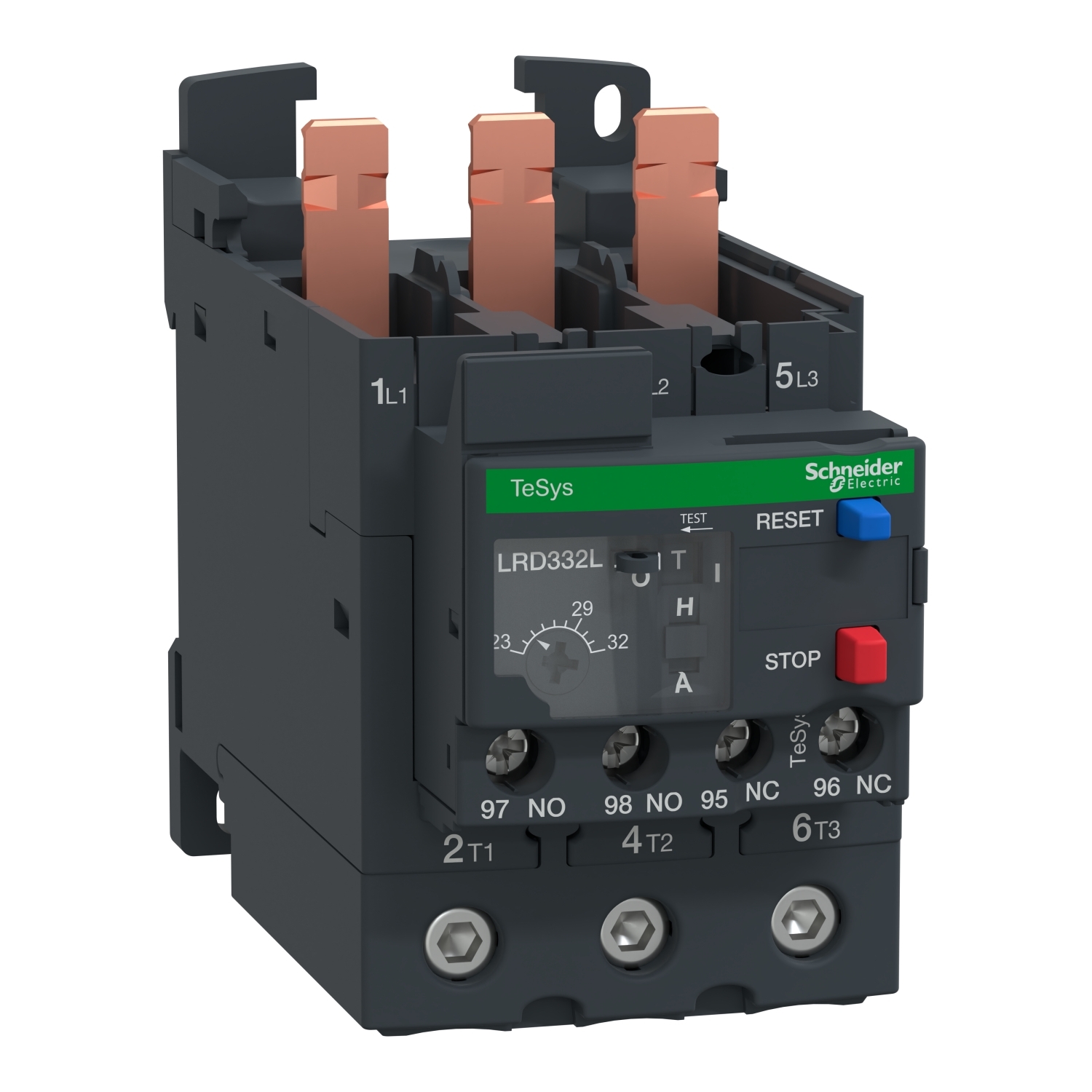

LRD332L TeSys LRD Bi-Metallic LRD Thermal Overload Relay, 23 to 32 A, 1NO-1NC 1 Form A/1 Form B Contac
- MFR:
- Schneider Electric
- MFR #:
- LRD332L
- Item #:
- 183790
LRD332L TeSys LRD Bi-Metallic LRD Thermal Overload Relay, 23 to 32 A, 1NO-1NC 1 Form A/1 Form B Contac
- MFR #:
- LRD332L
- Item #:
- 183790
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 20, for protection of 3-phase motors 15kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | LRD332L |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6969253&lang=en-us |
| GTIN | 03389119215558 |
