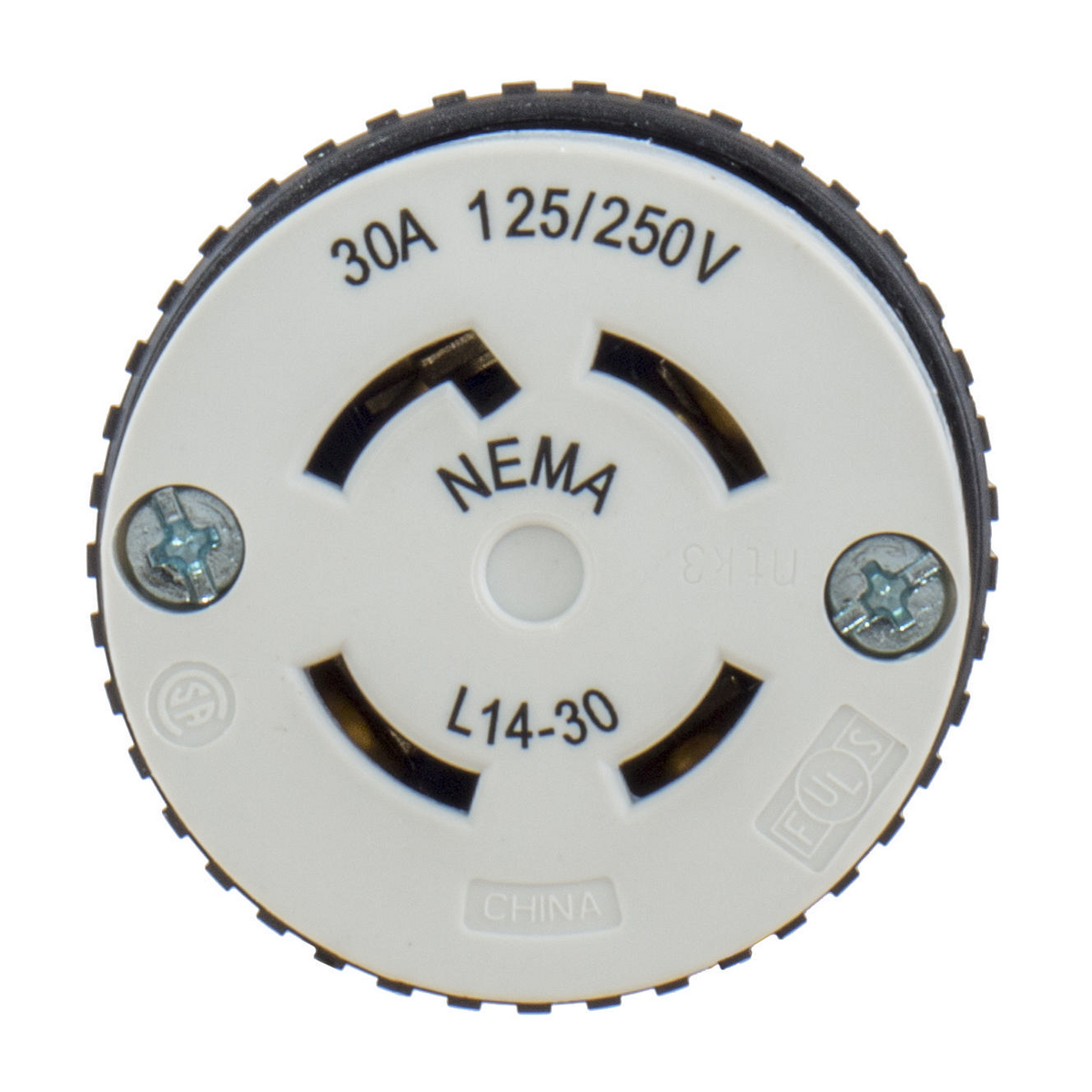

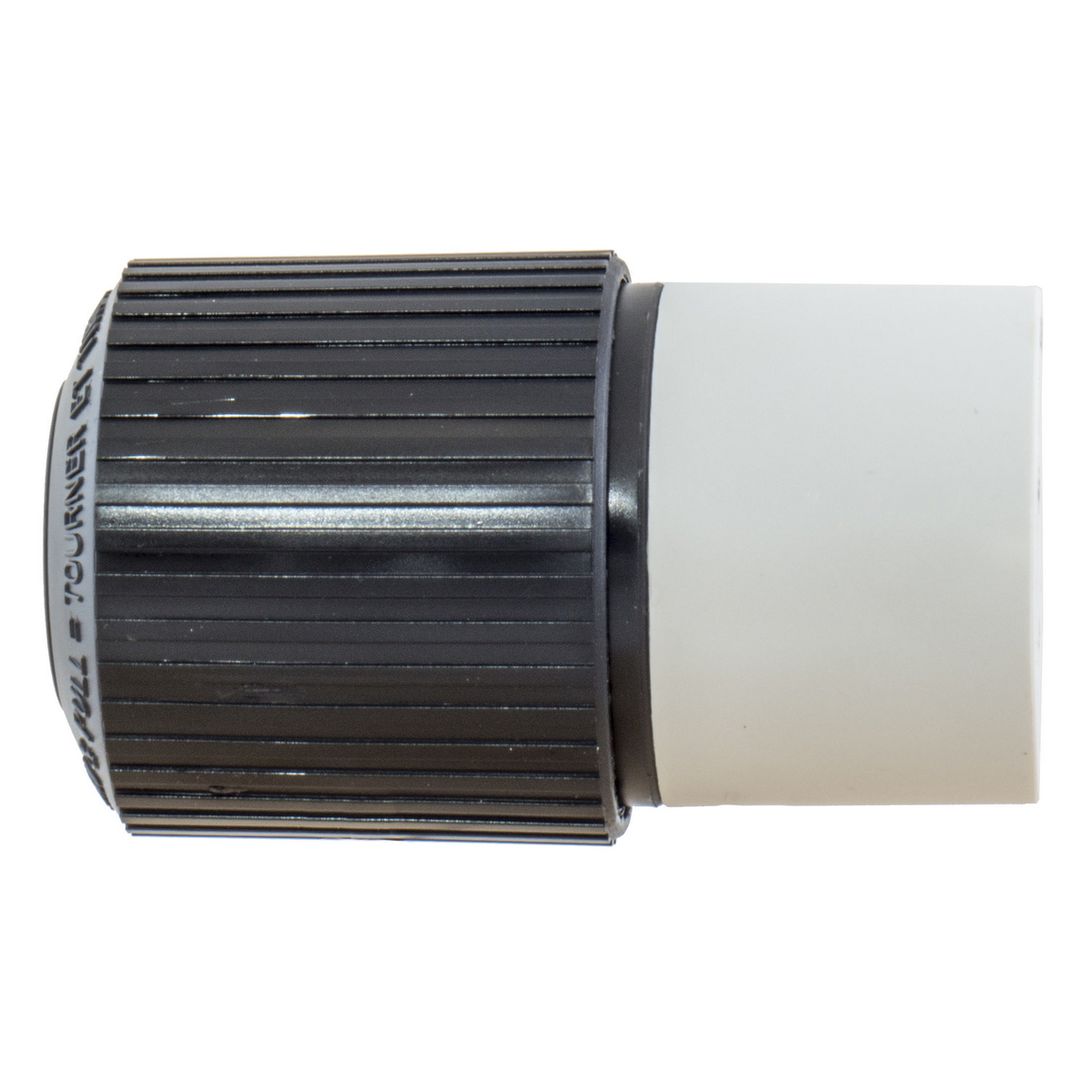

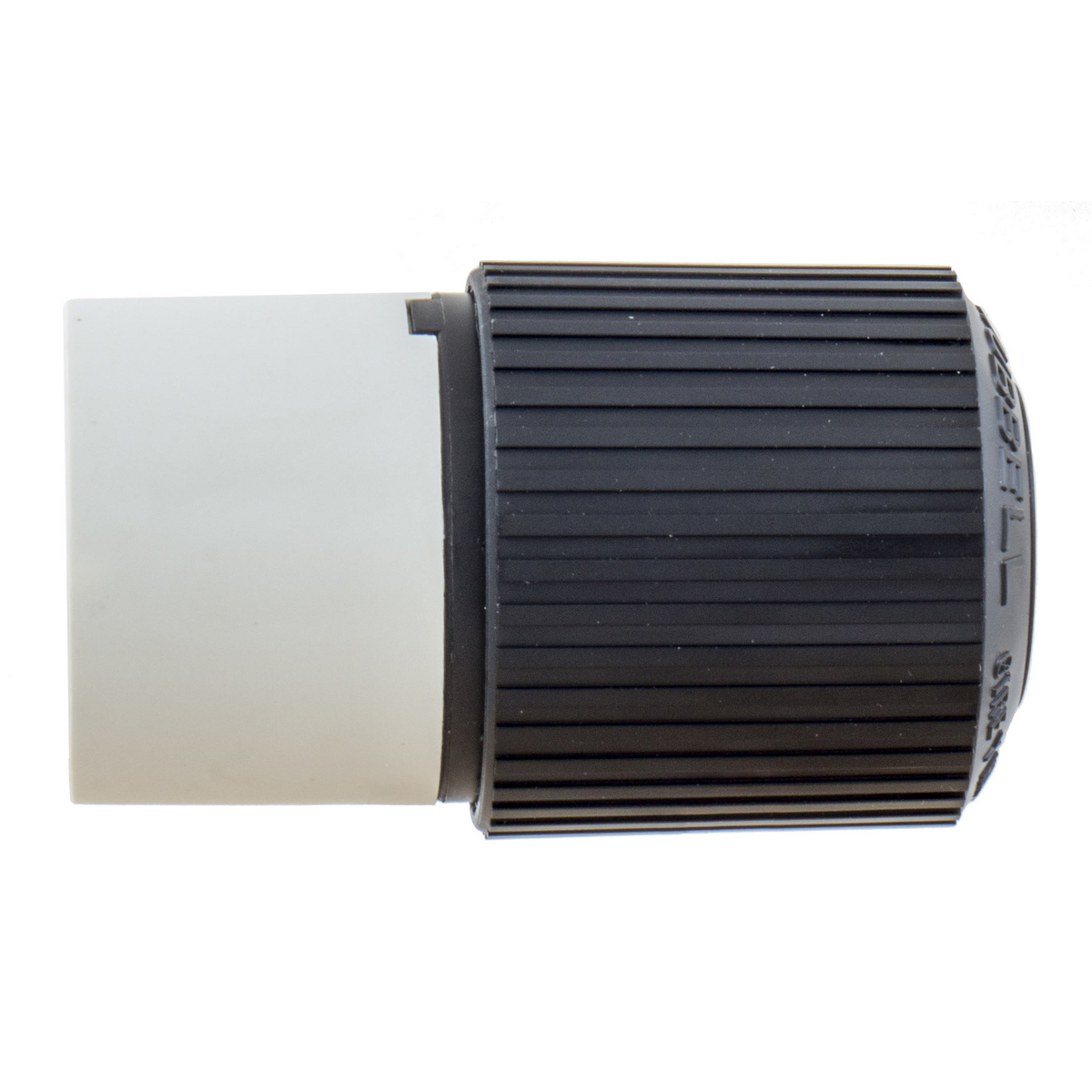

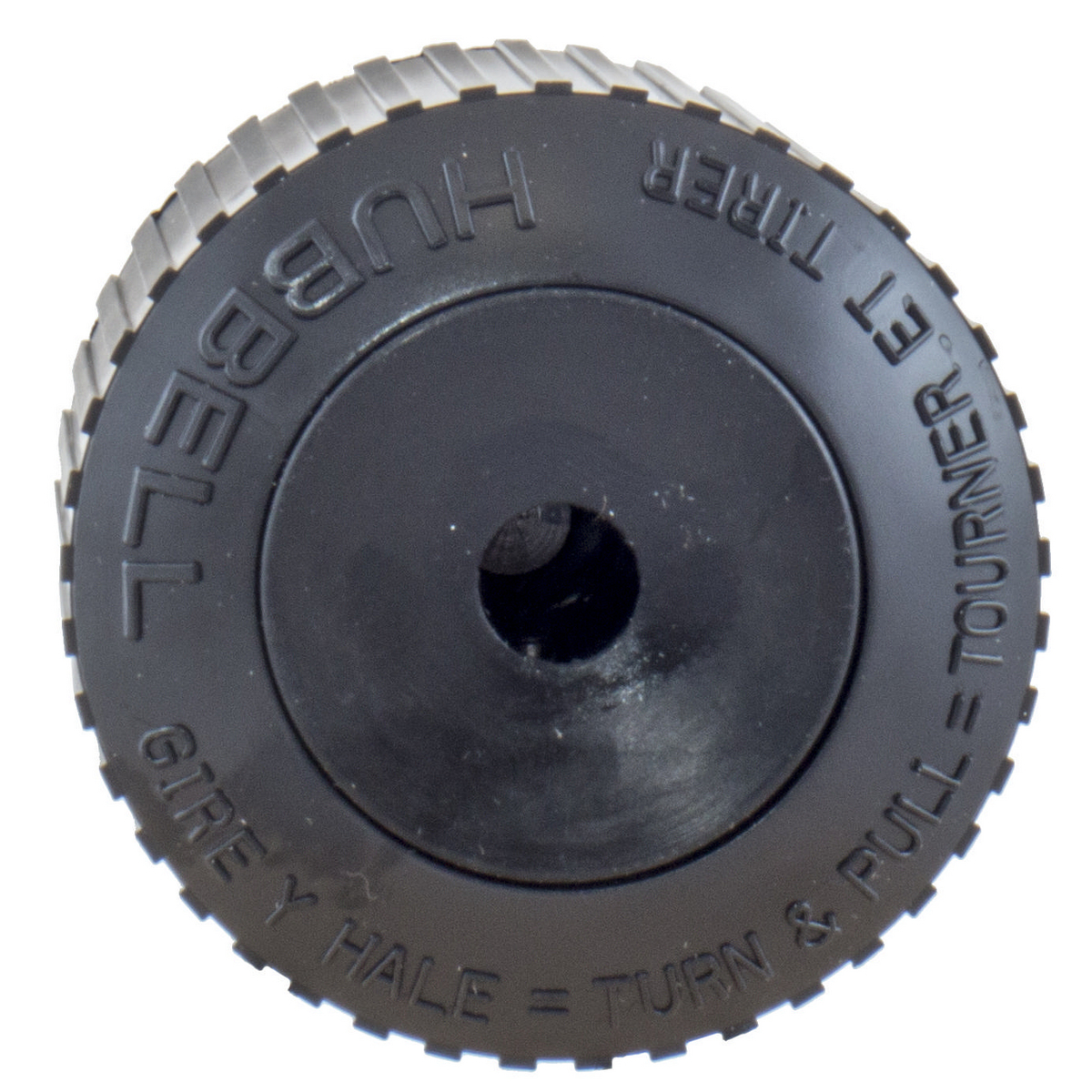

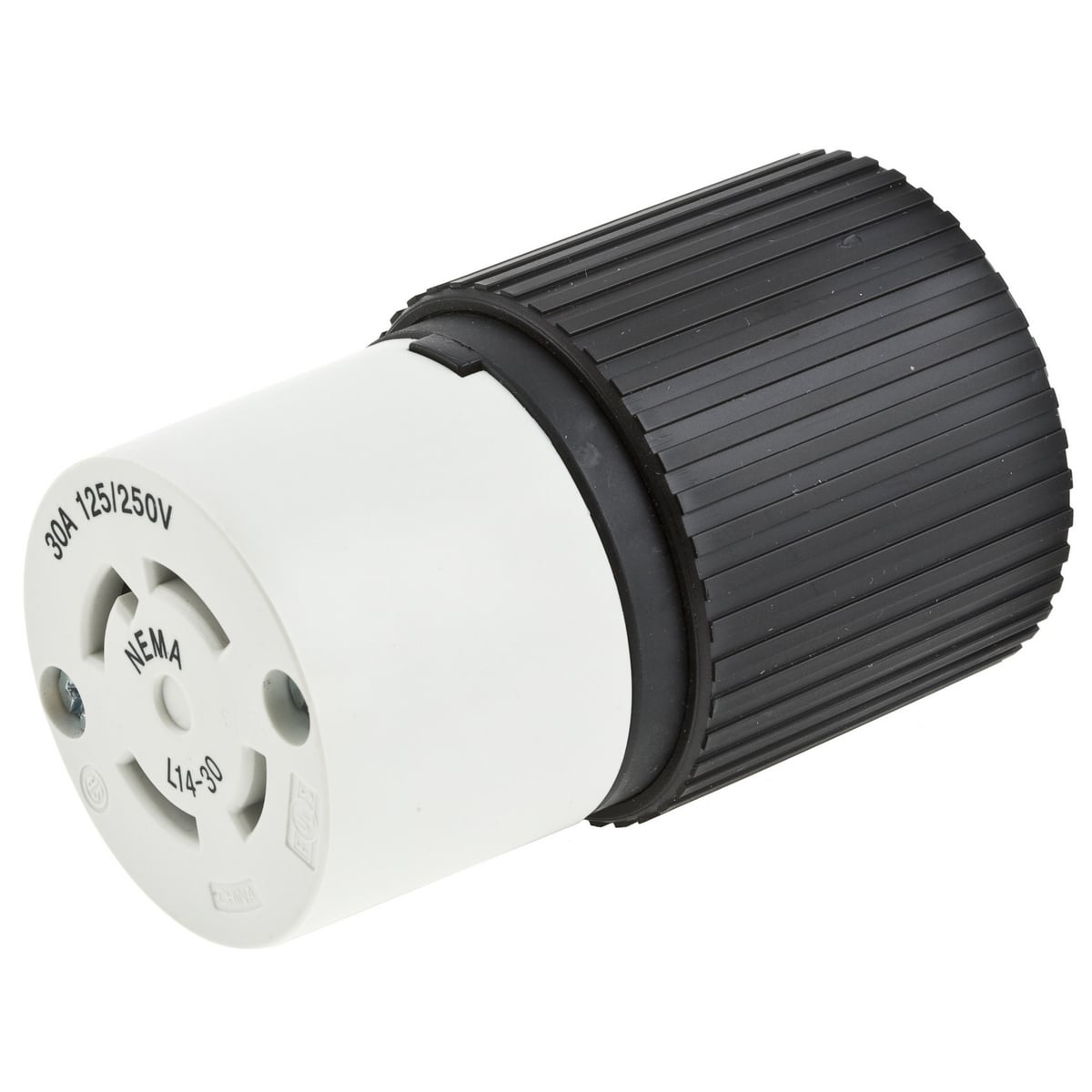

L1430C Female Grounding Heavy Duty Cord Mount Connector, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- L1430C
- UPC:
- 783585650067
- Item #:
- 183227
L1430C Female Grounding Heavy Duty Cord Mount Connector, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black/White
- MFR #:
- L1430C
- UPC:
- 783585650067
- Item #:
- 183227
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
$160.12
each
Manuals and Documentation
| Catalog Number | L1430C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Heavy Duty |
| Color | Black; White |
| Conductor Range | #12 AWG to #8 AWG |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Standard Product |
| Standard | NEMA WD1 and WD5, UL498 |
| UPC | 783585650067 |
| GTIN | 00783585650067 |
| Item Type | Hubbell Pro |
| Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125/250 |
| Cross Reference Products | AHL1430C |
