BURNDY

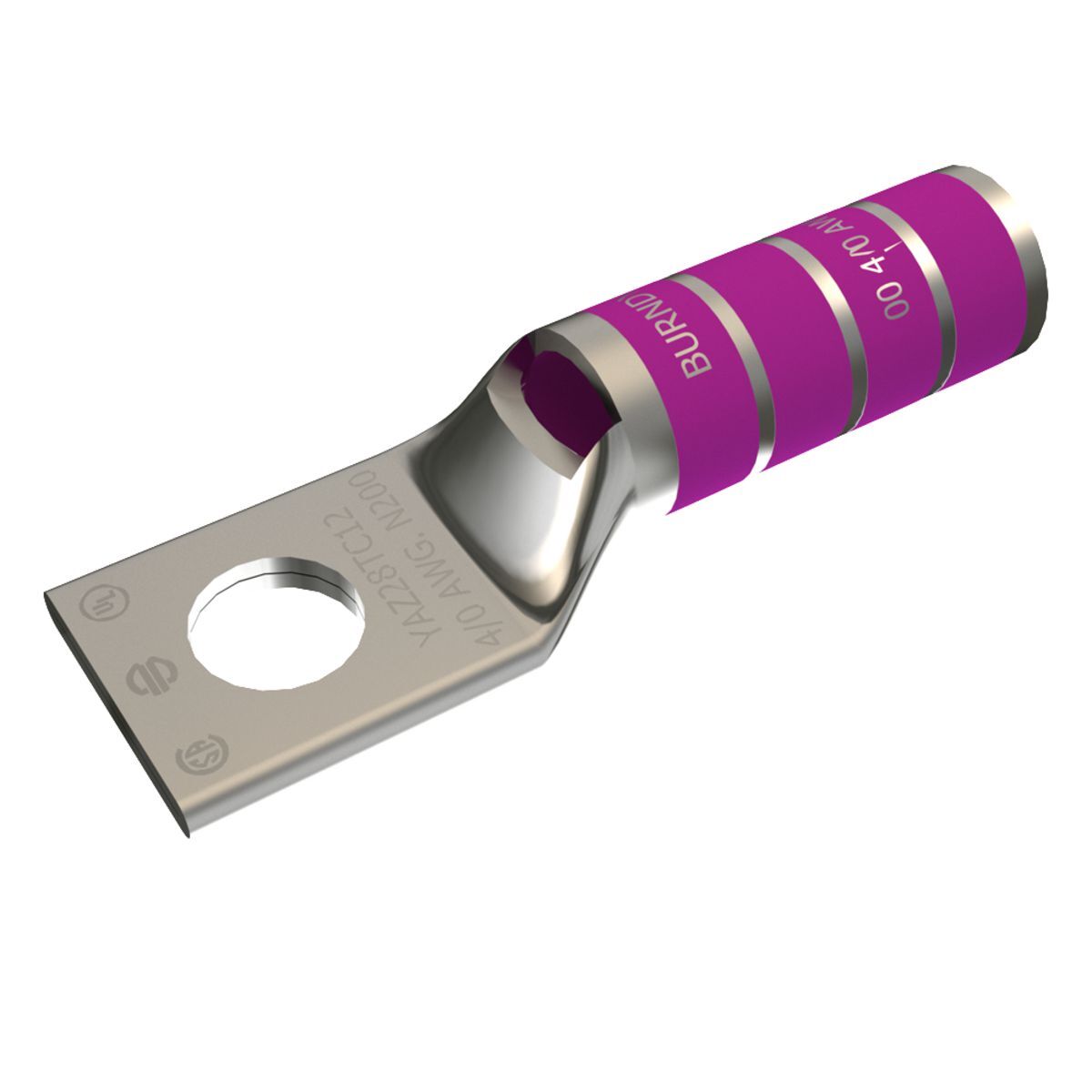

YAZ28TC38 1-Hole Uninsulated Compression Lug With Inspection Window, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 3/8 in Stud, Tin Plated Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YAZ28TC38
UPC:
781810234488
Item #:
183175

Availability

Location Available Qty
Available Available to Order
$37.99 each
Manuals and Documentation
Catalog Number YAZ28TC38
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Termination
Material COPPER
Special Features Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1-11/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Die Index: 15, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4)
Standard UL 486A-486B
UPC 781810234488
GTIN 00781810234488
Item Type Long Barrel, Skive, Tin Plated
Voltage Rating 35
