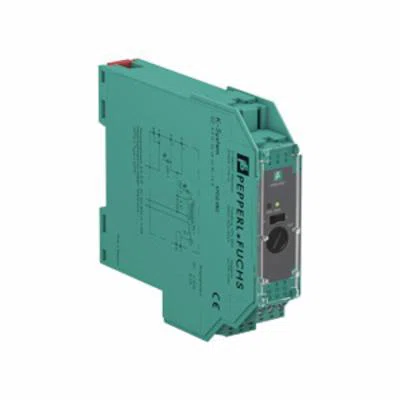

KFD2-EB2 Redundant Power Supply Module, 30 V AC/40 V DC Output, 4 A Output
- MFR:
- Pepperl+Fuchs
- MFR #:
- KFD2-EB2
- Item #:
- 183167
KFD2-EB2 Redundant Power Supply Module, 30 V AC/40 V DC Output, 4 A Output
- MFR #:
- KFD2-EB2
- Item #:
- 183167
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
The power feed module interfaces 24 V DC power to the Power Rail at a maximum current of 4 A. The twin input terminals allow for daisy-chaining of supply (max. 10 A). A green LED on the front of the unit indicates that power is on, and a red LED illuminates during error conditions. In the event of a field wiring or barrier fault from any barrier on the Power Rail, the integral collective error messaging relay alerts the controller via a single discrete I/O point. This relay can be configured as normally open or normally closed. In the sense of functional safety (SIL) the device provides no dangerous failures. Thereby the safe condition of the supplied barrier must be defined as the powerless state. Thus the device will not influence the safety calculation or the SIL value. This device is compatible with all versions of the Power Rail.
Manuals and Documentation
Features
- Interface for power rail
- Used for redundant configuration
- Supply current 4 A
- Replaceable fuse
- Relay contact output, reversible
- LED status indication
- Terminal connection
- 20 to 30 VDC the maximum rated operating voltage of the devices plugged onto the power rail must not be exceeded
- NO contact relay output fault signal
- DIN rail mounting
- IP20 degree of protection
| Manufacturer Part Number | KFD2-EB2 |
| Brand | Pepperl+Fuchs® |
| Manufacturer | Pepperl+Fuchs |
| Dimensions | 0.8 in L x 4.7 in W x 4-1/2 In H |
| Temperature Rating | -20 to 60 deg C Temperature |
| Type | Redundant |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CSA Certified | FM Approval | UL Listed |
| Output Current | 4 A |
| Output Voltage | 30 V AC/40 V DC |
| Power Dissipation | 1 W |
