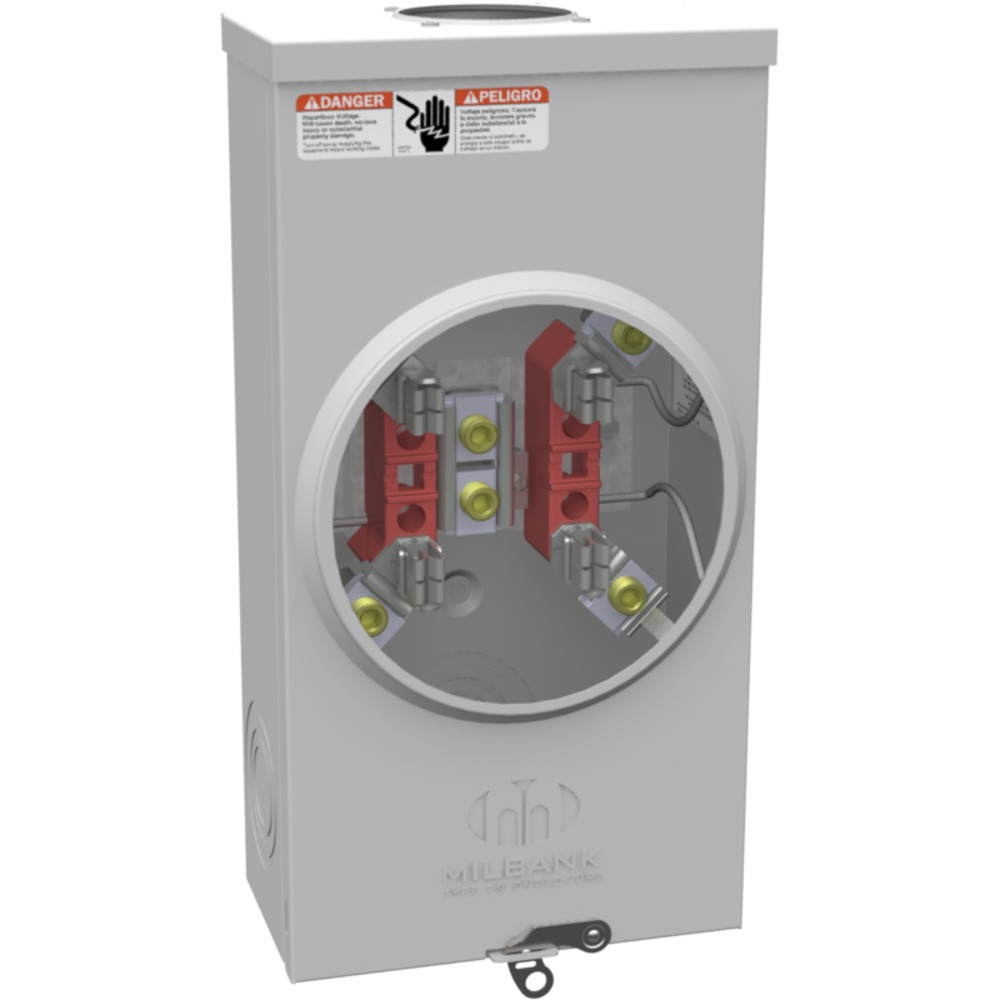

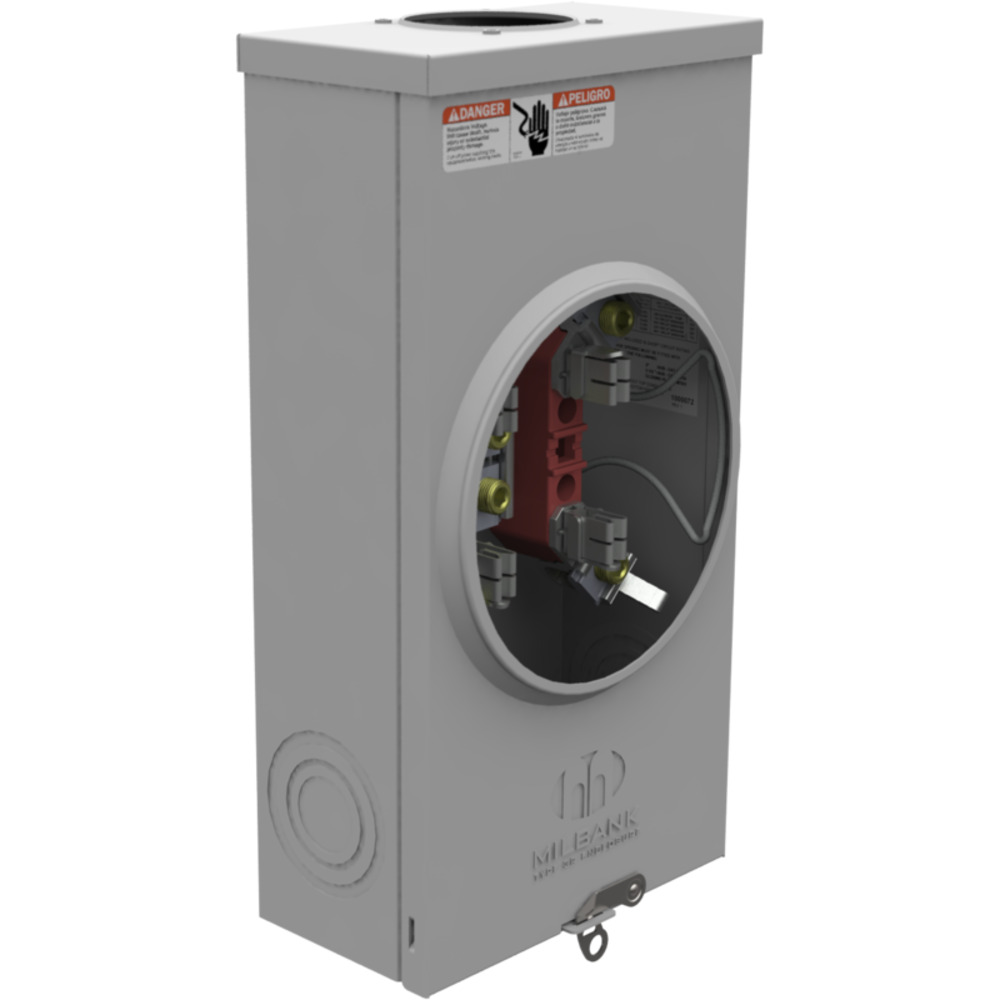

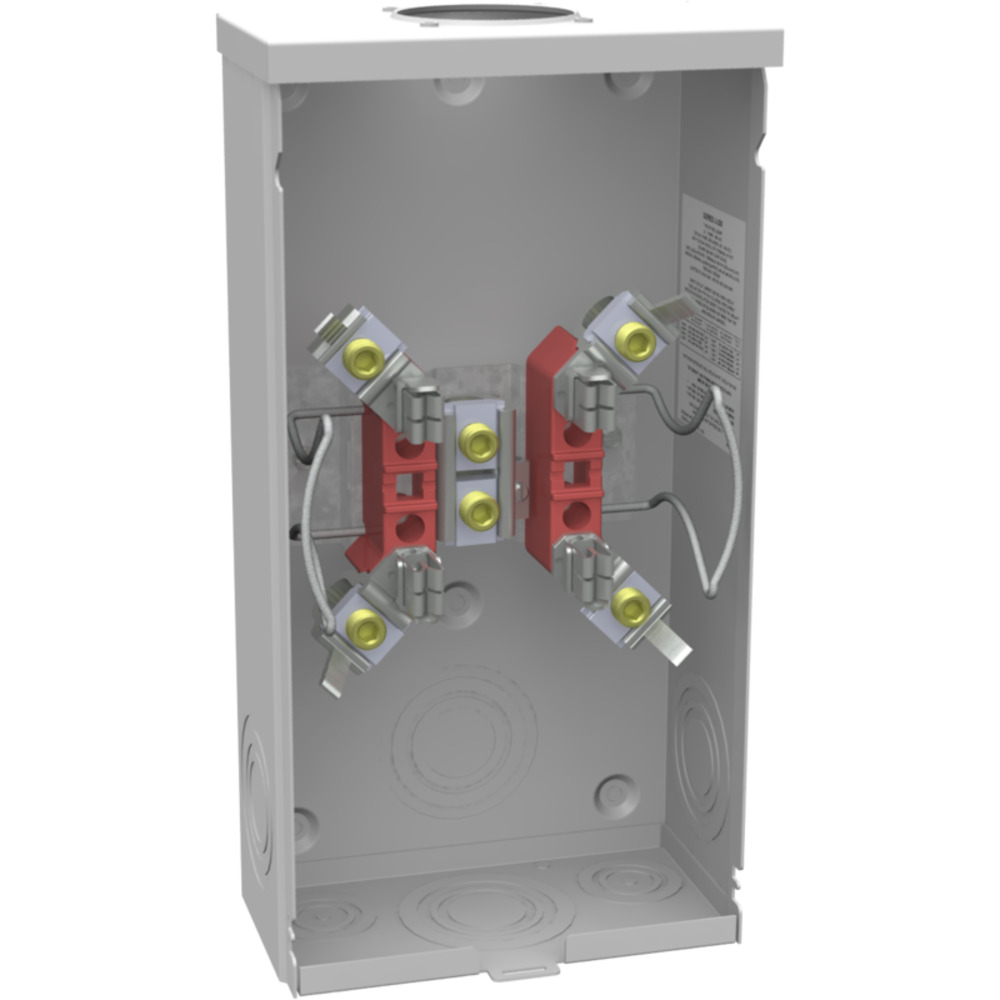

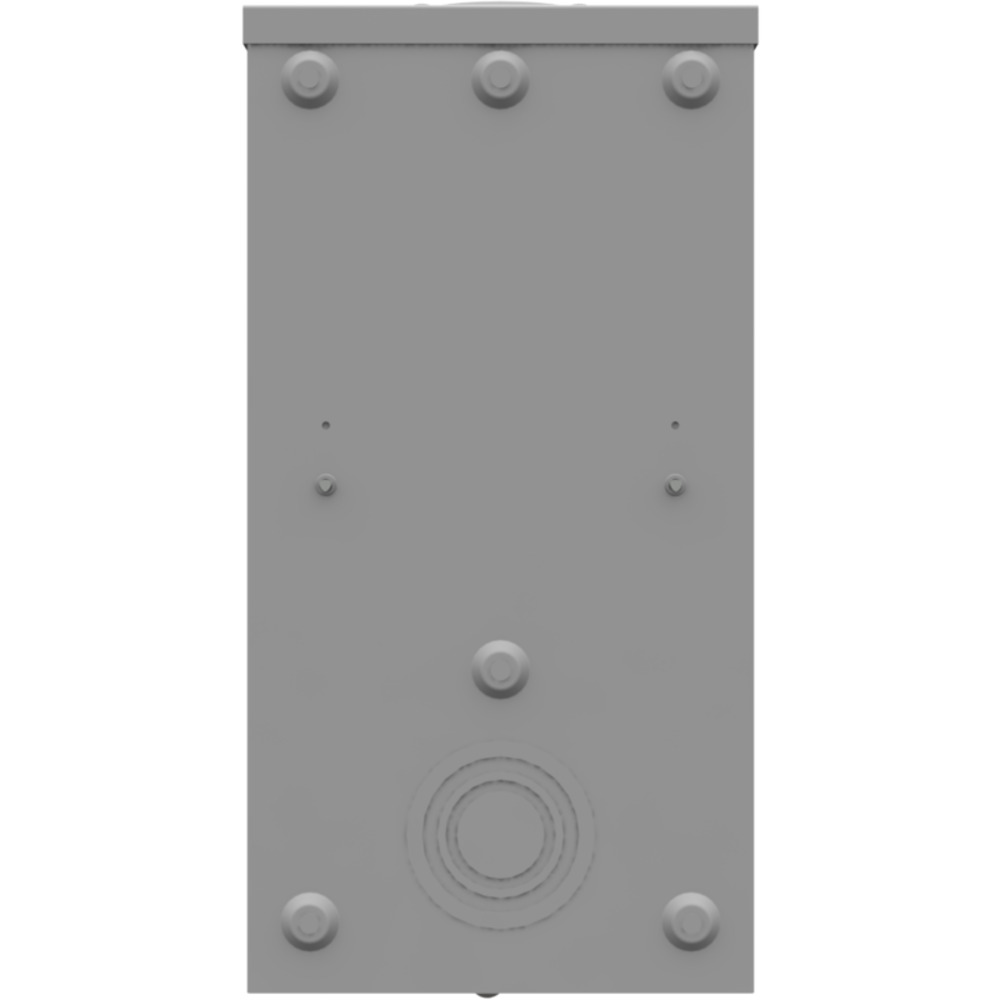

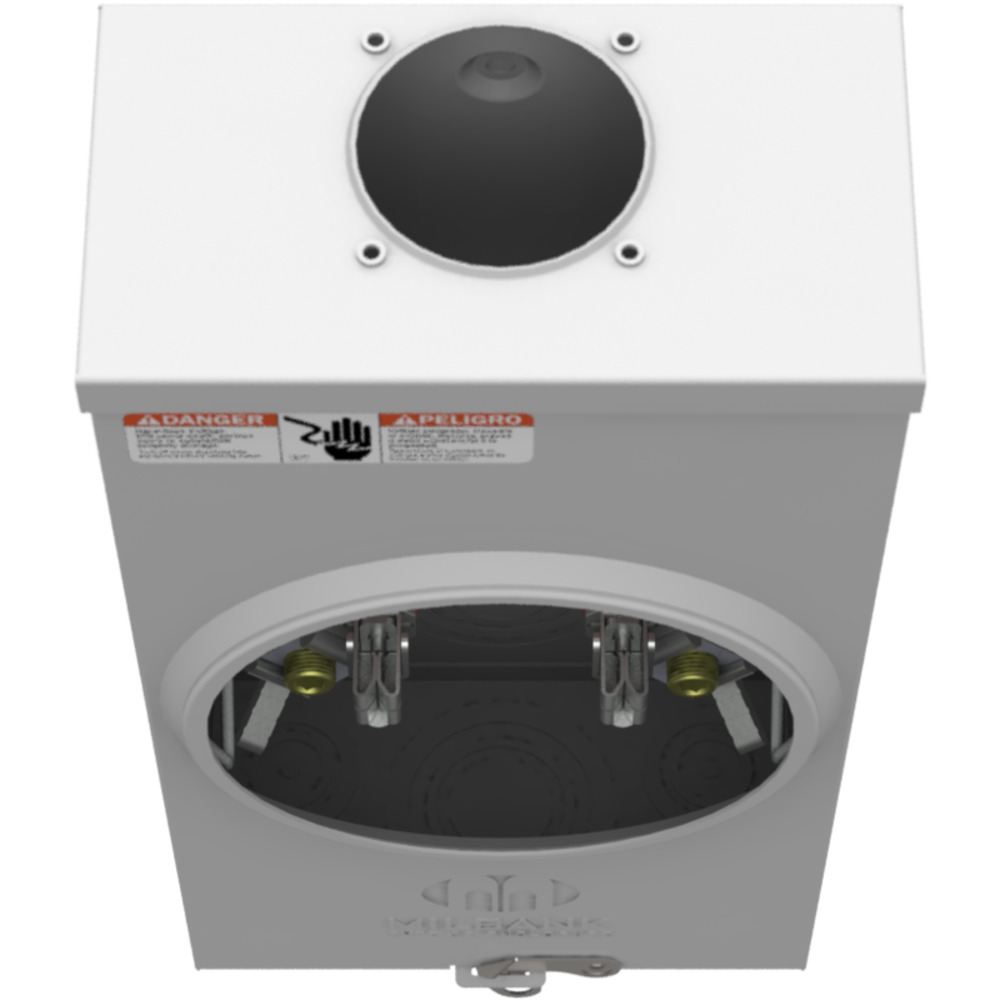

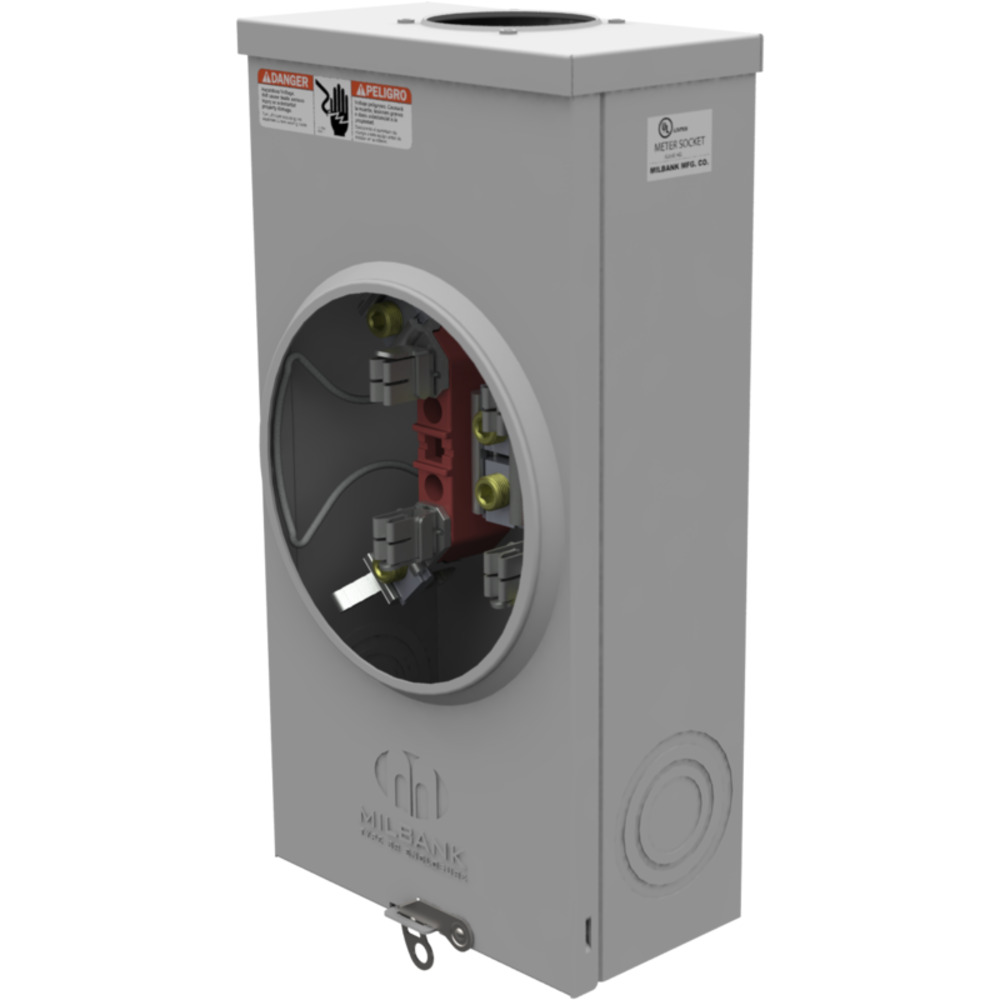

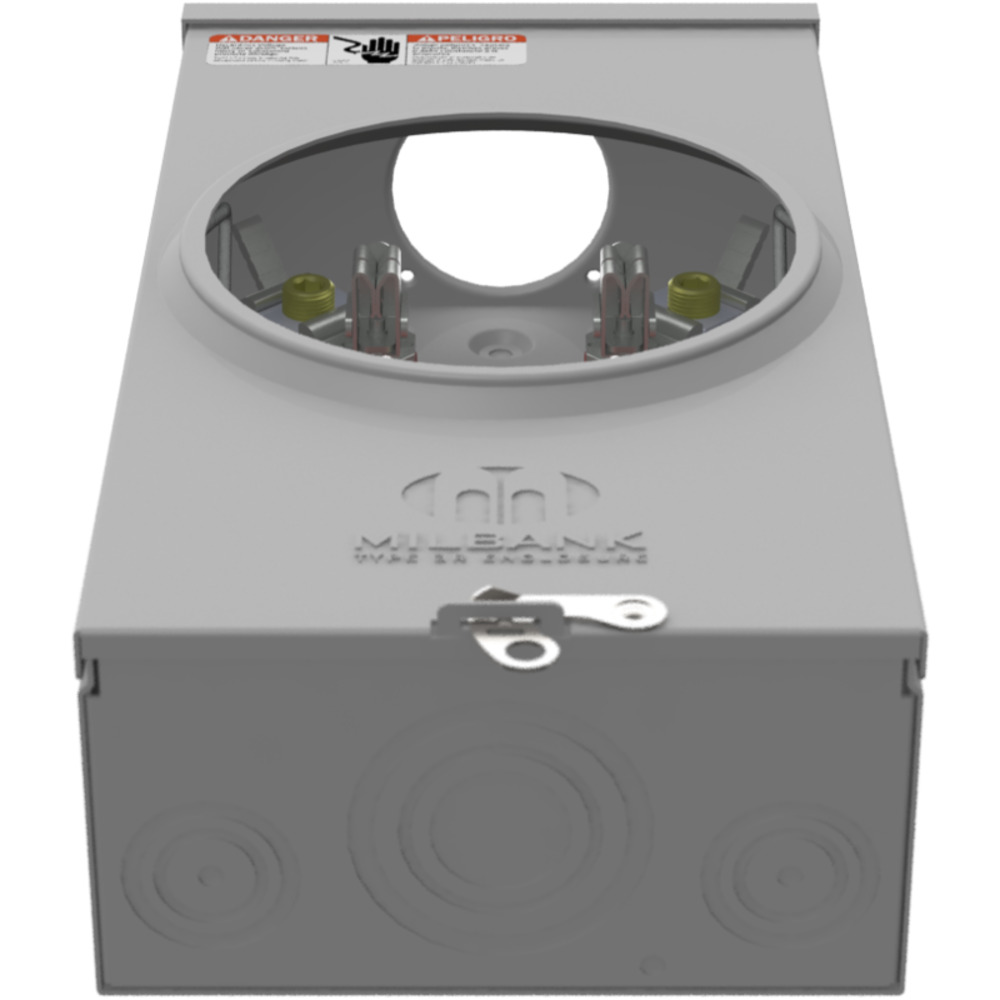

U8949-RL-TG-KK-CECHA Single Position Meter Socket, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, OH, 600V, Triplex
- MFR:
- Milbank
- MFR #:
- U8949-RL-TG-KK-CECHA
- UPC:
- 784572142343
- Item #:
- 182946
U8949-RL-TG-KK-CECHA Single Position Meter Socket, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, OH, 600V, Triplex
- MFR #:
- U8949-RL-TG-KK-CECHA
- UPC:
- 784572142343
- Item #:
- 182946
Availability
| Location | Available Qty |
|---|---|
| Available | 57 ea |
$246.80
each
4 TERM RNGLS SML HUB OPEN TRIPLEX GND HRN BYPS COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
Manuals and Documentation
| Catalog Number | U8949-RL-TG-KK-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket |
| Bypass Type | Horn |
| Cable Entry | Overhead |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572142343 |
| GTIN | 00784572142343 |
| Item Type | Ringless Meter Socket |
| Length | 4.12 |
| Length UOM | Inch |
| Width | 8 |
| Width UOM | Inch |
| Height | 15.5 |
| Height UOM | Inch |
| Size | 4.12L x 8W x 15.5H |
| Terminals | Lay In |
| Voltage Rating | 600 Volts Alternating Current |
