Hubbell Wiring Device - Kellems

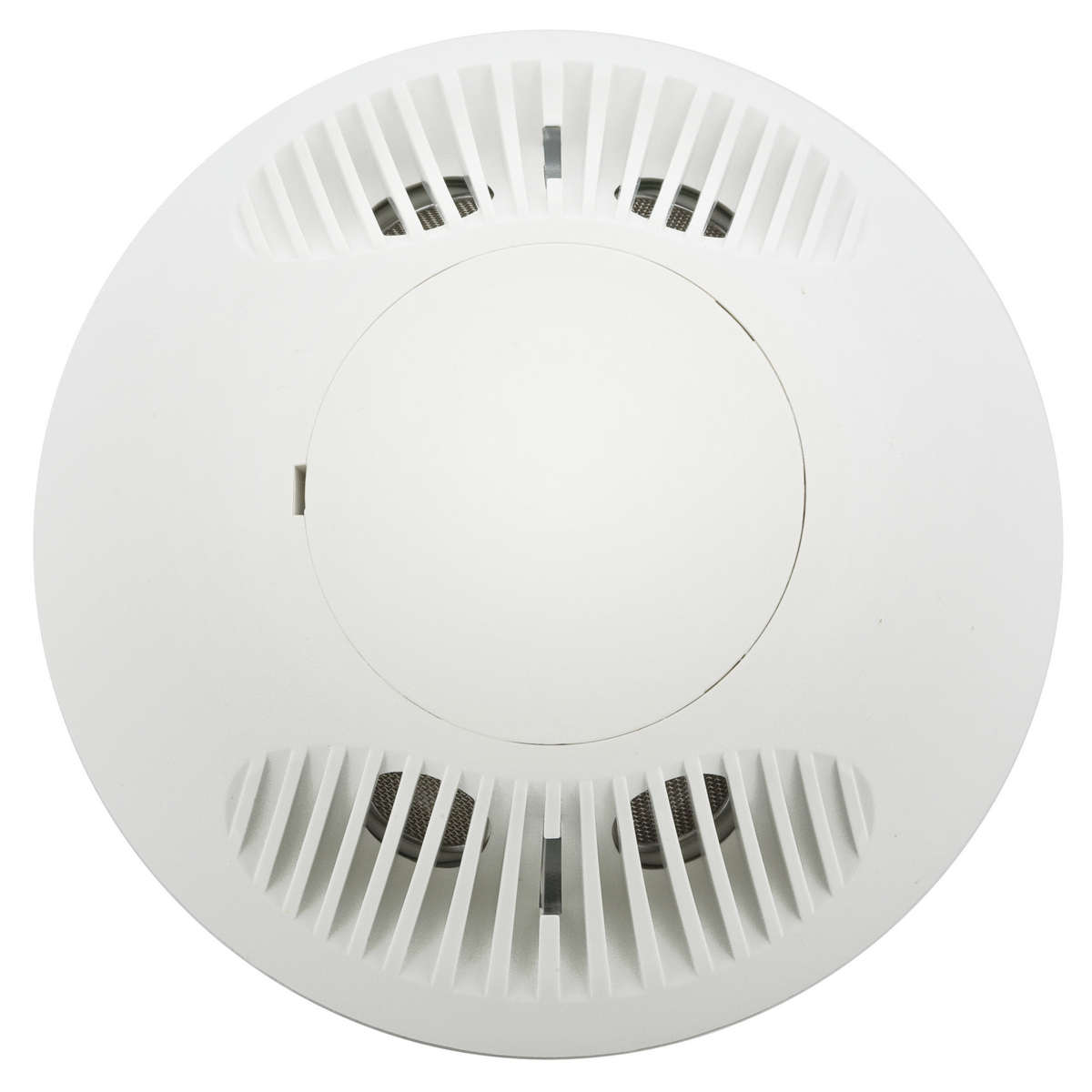

ATU2000CRP Adjustable Adaptive Technology Low Voltage Occupancy Sensor With Photocell and Relay, 24 VDC, Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing

MFR:
Hubbell Wiring Device-Kellems
MFR #:
ATU2000CRP
UPC:
783585392462
Item #:
182576

Availability

Location Available Qty
Available Available to Order
$548.72 each

Ultrasonic (US) technology senses occupancy by bouncing sound waves (32 kHz - 45 kHz) off of objects and detecting a frequency shift between the emitted and reflected sound waves. Movement by a person or object within a space causes a shift in frequency, which the sensor interprets as occupancy. While US occupancy sensors have a limited range, they are excellent at detecting even minor motion such as typing and filing, and they do not require an unobstructed line-of sight. This makes US technology sensors ideal for an application like an office with cubicles or a restroom with stalls.

Manuals and Documentation
Catalog Number ATU2000CRP
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Application Compatible with most LED and CFL
Color White
Connector Wire Leads
Indicator Ultrasonic= Green LED
Mounting Ceiling
Operating Cycles 6,000 Cycles Minimum
Sensing Range 8 to 12 Feet Mounting Height
Sensitivity Adaptive 0 to 100%
Sensor Adaptive Ultrasonic
Special Features With Photocell and Relay
Standard ASHRAE 90.1 Compliant;cULus Listed To UL244A
Supply Voltage 24V DC From Control Unit
UPC 783585392462
GTIN 00783585392462
Item Type Sensors
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Operating Temperature 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Target Size People in
Cross Reference Products OSC20-U0W
