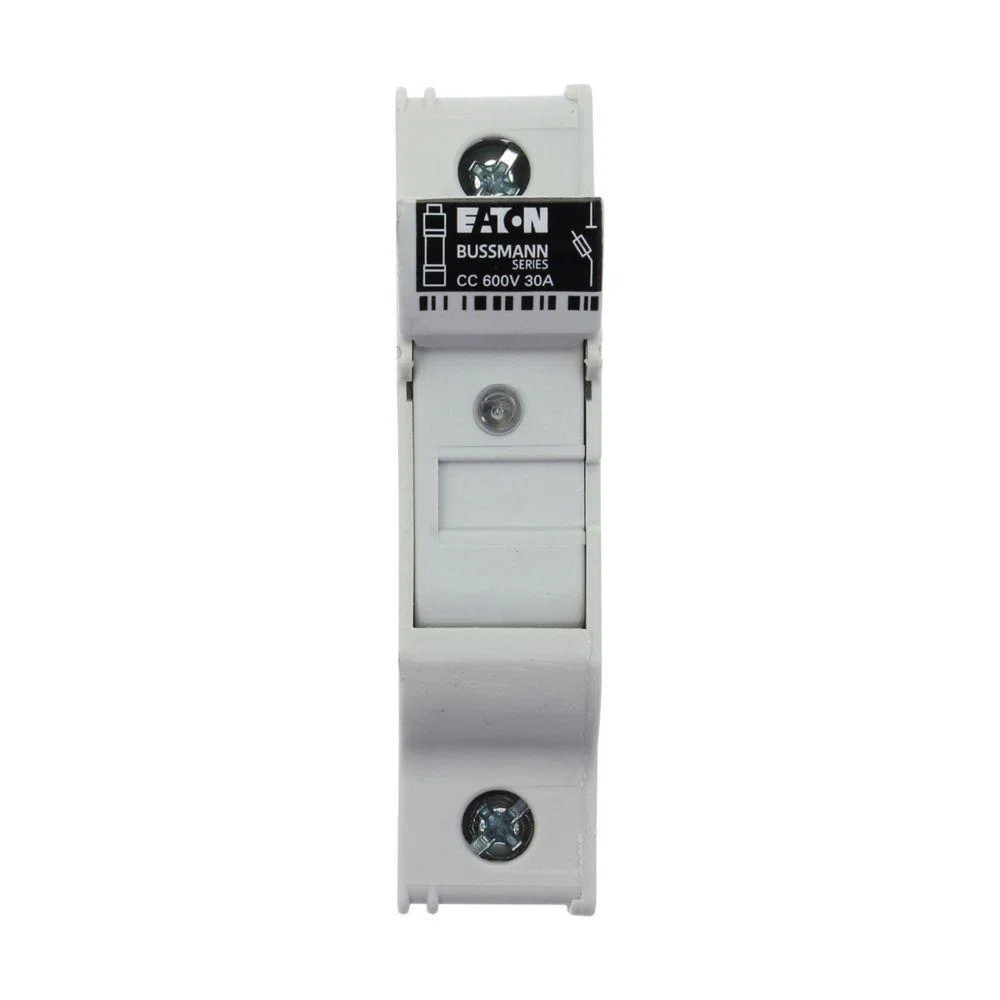

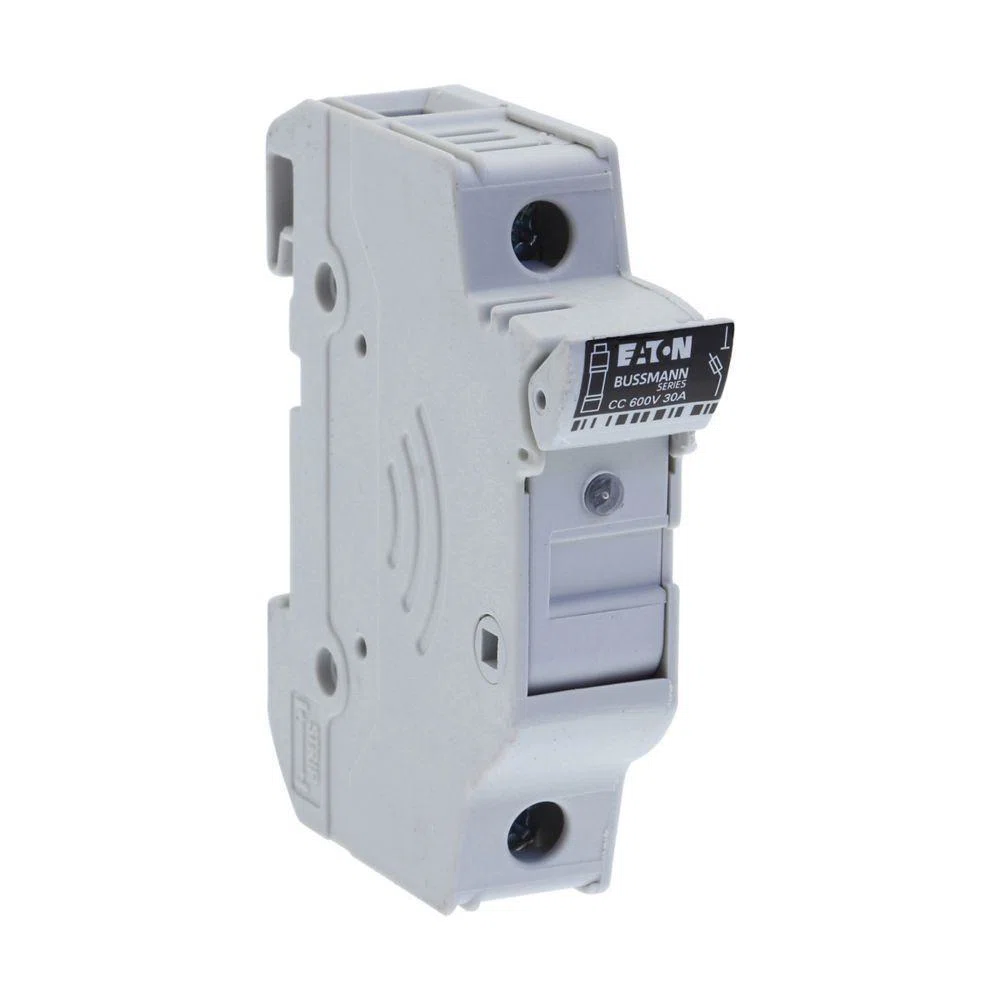

CHCC1DIU Finger Safe Modular Fuse Holder With LED Indicator, 48 V DC, 30 A, 18 to 4 AWG Wire, 1 Pole
- MFR:
- Eaton
- MFR #:
- CHCC1DIU
- UPC:
- 051712362665
- Item #:
- 182498
CHCC1DIU Finger Safe Modular Fuse Holder With LED Indicator, 48 V DC, 30 A, 18 to 4 AWG Wire, 1 Pole
- MFR #:
- CHCC1DIU
- UPC:
- 051712362665
- Item #:
- 182498
Availability
| Location | Available Qty |
|---|---|
| Available | 372 ea |
Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.
Manuals and Documentation
Features
- Withstands 200 kA (RMS Symmetrical) interrupt rating
- Tool less ganging for multiple poles
- Wire strip gauge
- Captive fully backed out Phillips slotted screw
- 18 to 4 AWG copper wire
| Manufacturer Part Number | CHCC1DIU |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712362665 |
| Amperage Rating | 30 A |
| Color | White |
| Dimensions | 0.689 in W x 3.275 in D x 2.909 in H |
| Material | Polyester |
| Mounting Type | DIN Rail |
| Series | CH Series |
| Suitable For Use With | KTK-R, LP-CC and FNQ-R Series CC Fuse |
| Temperature Rating | -20 to 90 deg C |
| Type | Finger Safe Modular |
| Voltage Rating | 48 V DC |
| Alternative Part Number | 11174954 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CCC Certified | CSA 47235 | CSA 6225-01 | RoHS Compliant | UL File No. E14853 | UL Guide IZLT/IZLT2 |
| Application | Electrical Assemblies, Electrical System Applications, Panels and OEMs |
| Class | CC |
| Connection Type | Spade Lug |
| Fuse Diameter | 10 mm |
| Fuse Holder Code | W |
| Fuse Length | 38 mm |
| Number Of Poles | 1 |
| Wire Size | 18 to 4 AWG |
