BLACKBURN MECHANICAL

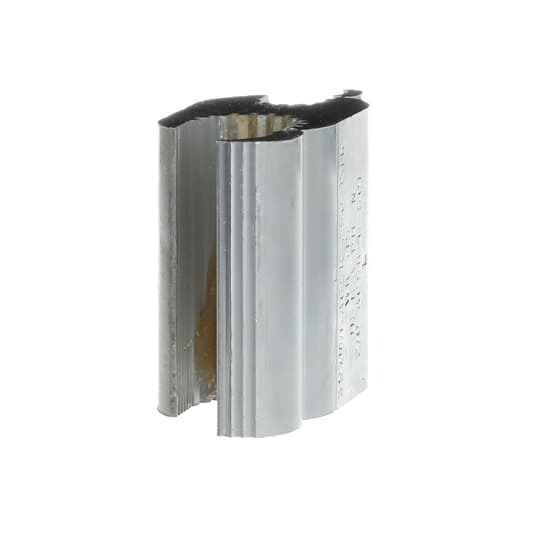

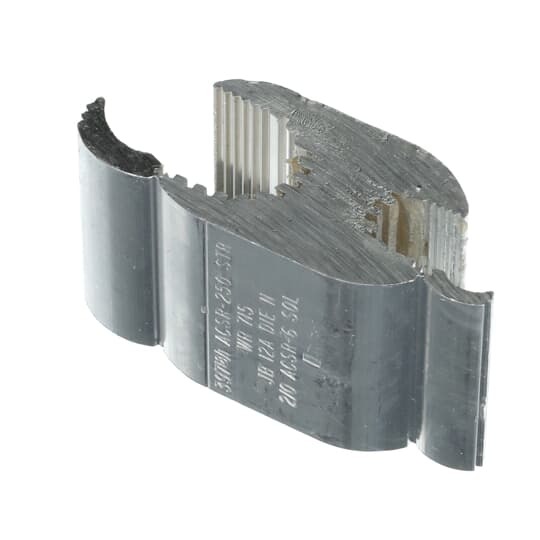

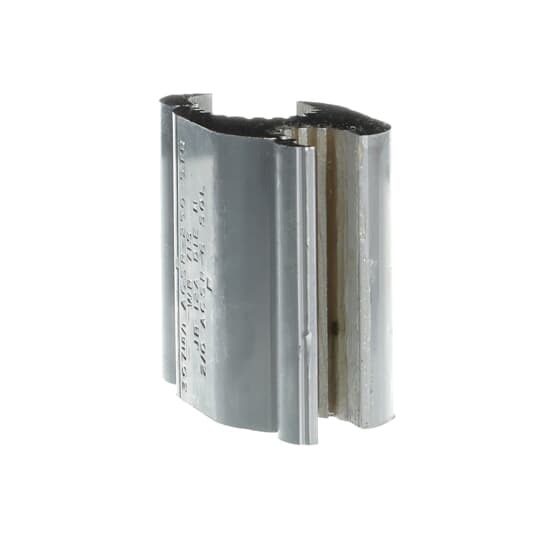

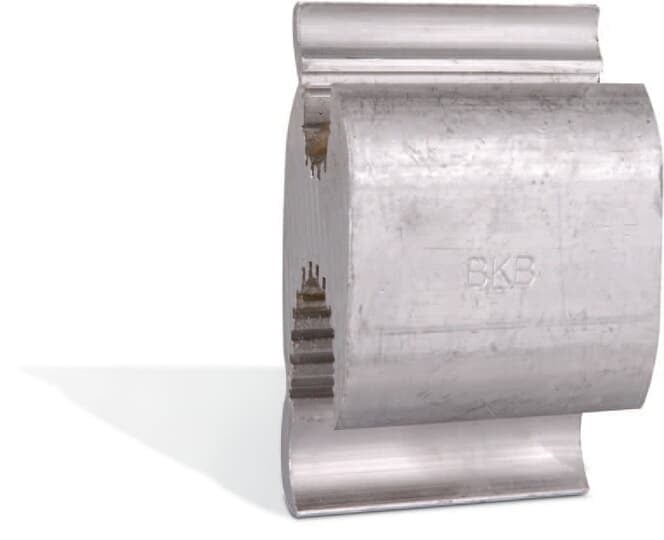

WR715 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 266 to 397 kcmil ACSR, 250 to 400 kcmil Stranded Main/Run, 6 to 2/0 AWG ACSR, 6 to 2/0 AWG Stranded, 6 to 3/0 AWG Solid Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR715
UPC:
783786100200
Item #:
1820

Availability

Location Available Qty
Available Available to Order
$17.75 each
Catalog Number WR715
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100200
GTIN 00783786100200
Item Type H-Type Compression Tap Connector
Size Length 2 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 397 (18/1) to 266 ACSR or 400 to 250 STR kcmil , Tap: 2/0 to #6 ACSR or 2/0 to #6 STR or 3/0 to #6 SOL AWG
