Intermatic

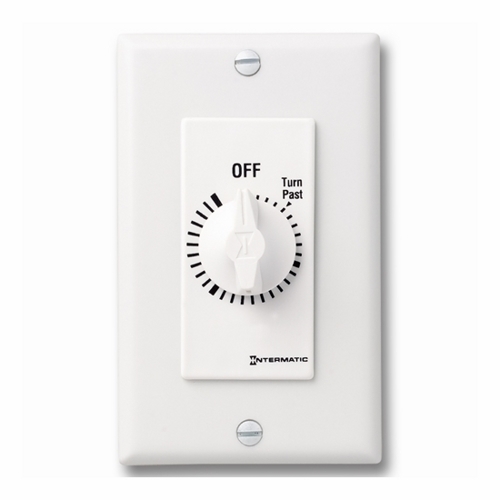

FD2H FD Series Auto Off Decorator Mechanical Spring Wound Timer, 2 hr Setting, 125/257 V AC, 1 hp, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
FD2H
UPC:
078275073999
Item #:
181043

Availability

Location Available Qty
Available 6 ea
$45.17 each

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Manuals and Documentation
Catalog Number FD2H
Manufacturer Intermatic
Brand Intermatic
Country of Origin Tunisia
Made in USA No
Action 1 x SPST
Amperage Rating 15
Application Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Teeter Type
Contact Configuration 1 NO
Contact Rating 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Mounting Wall
Number of Poles 1
Special Features Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in Single or Multi-Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Minimum of 0.085 IN Thread Engagement, Secure Teeter-Type Terminal, 1 Year Warranty
Standard cCSAus Certified, UL Listed, UL Recognized, HVACR
UPC 078275073999
GTIN 00078275073999
Item Type Decorator Spring Wound Auto-Off
Size 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Operating Temperature -40 to +104 DEG F, -40 to +40 DEG C
Timing Range 2 HR
Voltage Rating 125 - 277
Cross Reference Products A502H
