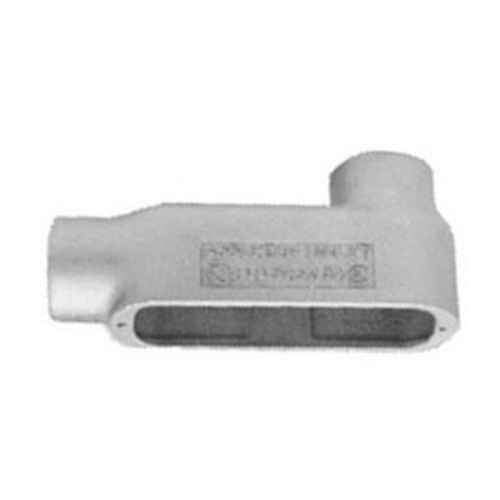

Type LB Conduit Body, 5 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
MFR: Appleton Electric
MFR #: LB500-M
UPC: 781381477659
Item #: 181017
Type LB Conduit Body, 5 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
MFR #: LB500-M
UPC: 781381477659
Item #: 181017
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2344.94
each
Form 35 UNILETS Type LB Conduit Outlet Body, Hub Size: 5 IN, Form: 35, Length: 20-1/4 IN, Height: 9 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Threaded
Manuals and Documentation
- Catalog Number
- LB500-M
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
- Connection
- Tapered Female Threaded
- Finish
- Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
- Form
- 35
- Hub Size
- 5 IN
- Material
- Malleable Iron
- Special Features
- Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Exclusive built-in easy-pulling rollers to facilitate cable pulling through hubs and help eliminate cable damage; Wiring capacity: 756 CU-IN as per NEC 314.16(A)
- Standard
- UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
- UPC
- 781381477659
- GTIN
- 00781381477659
- Item Type
- Type LB Conduit Outlet Body
- Length
- 20-1/4
- Length UOM
- Inch
- Height
- 9
- Height UOM
- Inch
