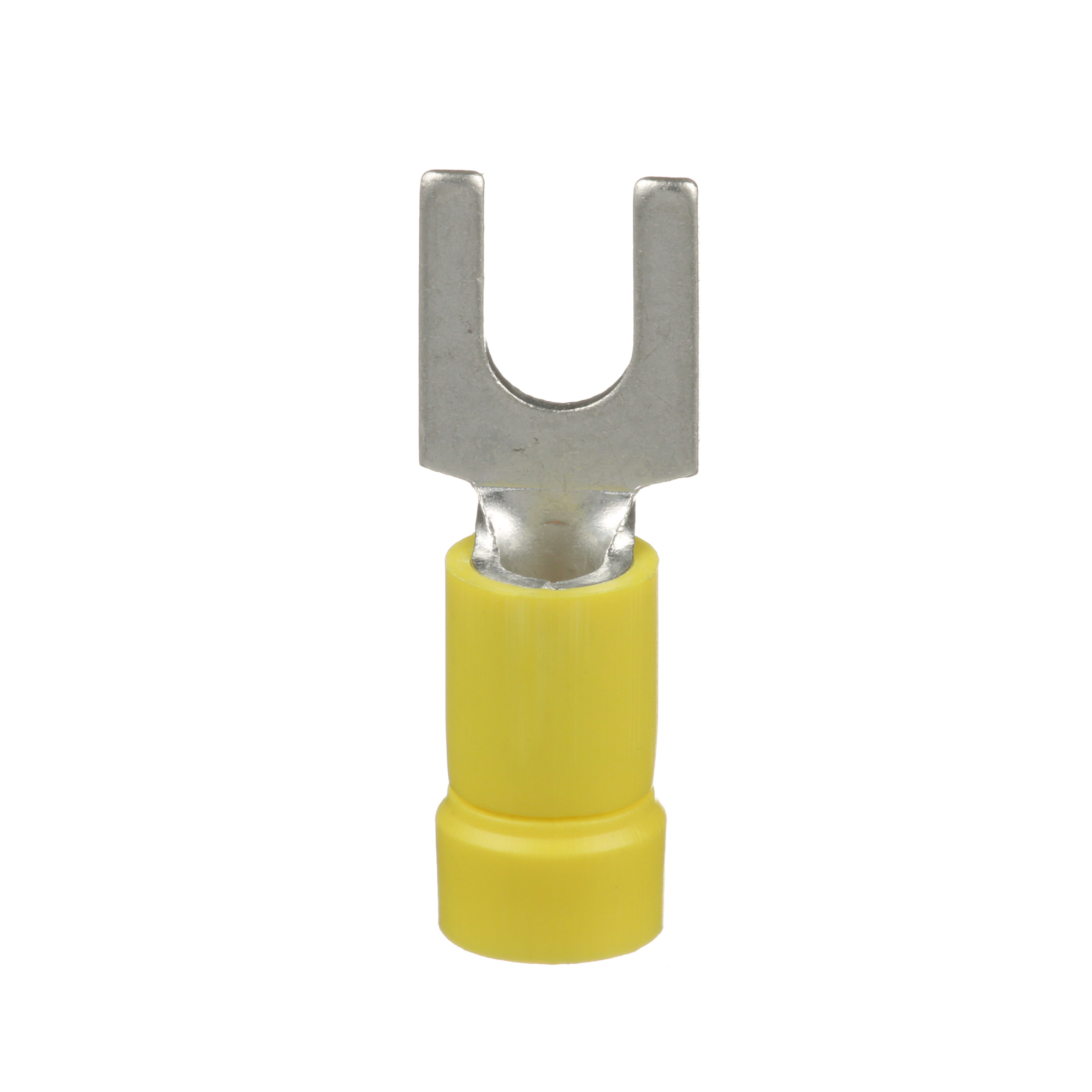

PV10-10F-L Pan-Term Type PV-F Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.04 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- PV10-10F-L
- UPC:
- 074983804146
- Item #:
- 180771
PV10-10F-L Pan-Term Type PV-F Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.04 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
- MFR #:
- PV10-10F-L
- UPC:
- 074983804146
- Item #:
- 180771
Availability
| Location | Available Qty |
|---|---|
| Available | 1,150 ea |
$0.9628
each
The PV10-10F-L Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
Manuals and Documentation
| Catalog Number | PV10-10F-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Funnel |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983804146 |
| GTIN | 00074983804146 |
| Item Type | Fork Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
