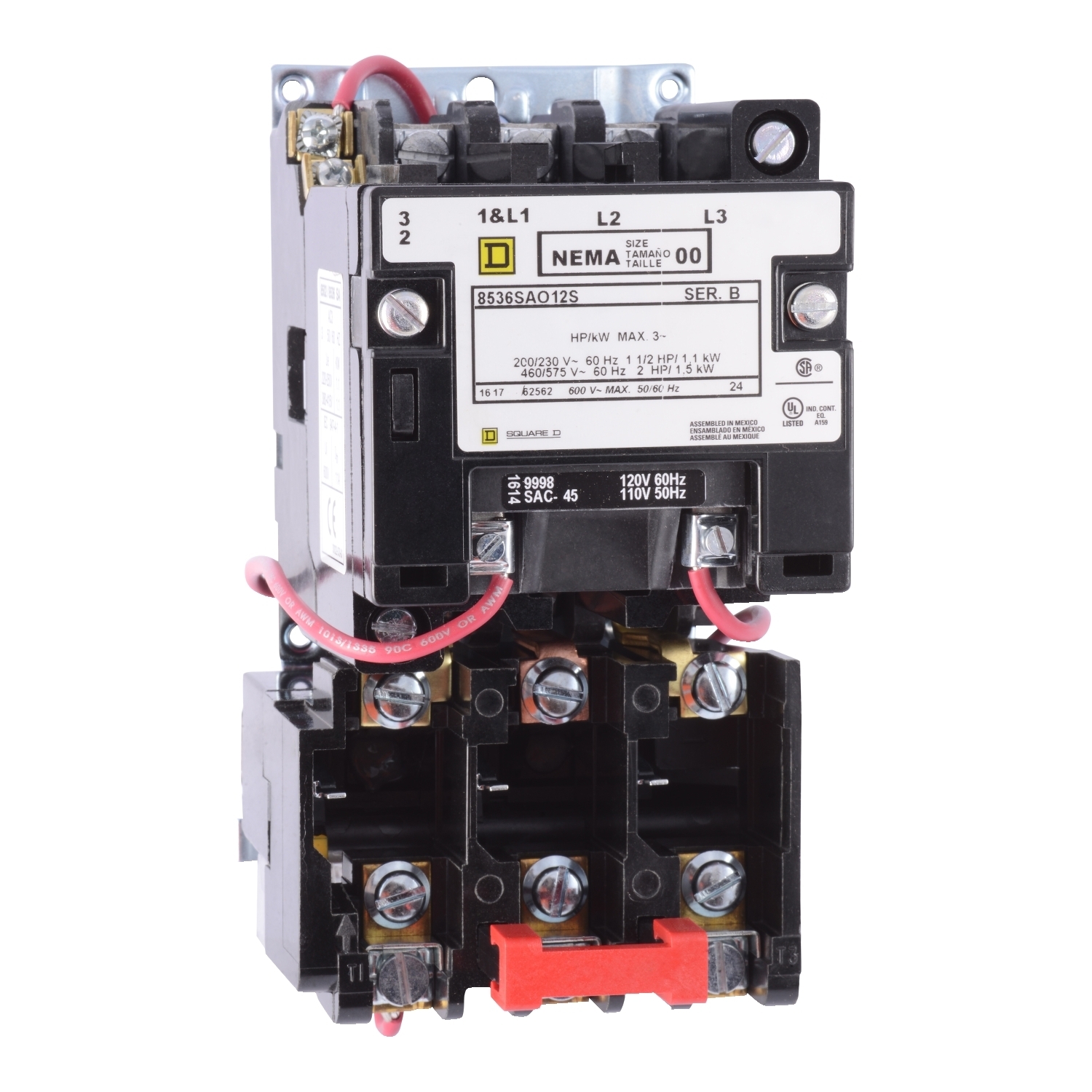

8536SAO12V08 Type S Magnetic Starter, 208 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SAO12V08
- UPC:
- 785901743460
- Item #:
- 180286
8536SAO12V08 Type S Magnetic Starter, 208 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR #:
- 8536SAO12V08
- UPC:
- 785901743460
- Item #:
- 180286
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SAO12V08 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901743460 |
| GTIN | 00785901743460 |
