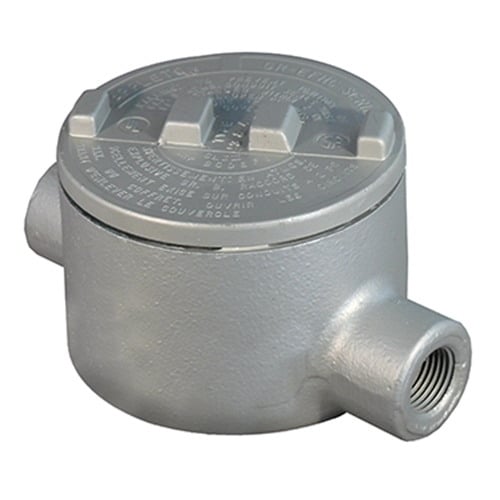

Explosion-Proof Conduit Unilet Type C Outlet Box
- MFR:
- Appleton Electric
- MFR #:
- GRC75
- UPC:
- 781381436755
- Item #:
- 180106
Explosion-Proof Conduit Unilet Type C Outlet Box
- MFR #:
- GRC75
- UPC:
- 781381436755
- Item #:
- 180106
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$158.92
each
UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRC Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1
Manuals and Documentation
| Catalog Number | GRC75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (2) 3/4 IN GRC Hub |
| Cubic Capacity | 18 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381436755 |
| GTIN | 00781381436755 |
| Item Type | Outlet Box |
| Length | 5.3000 |
| Length UOM | Inch |
| Width | 5.3000 |
| Width UOM | Inch |
| Height | 4.6000 |
| Height UOM | Inch |
| Weight | 2.440 |
| Weight UOM | Pounds |
| Size | 3/4 |
