Hubbell Wiring Device - Kellems

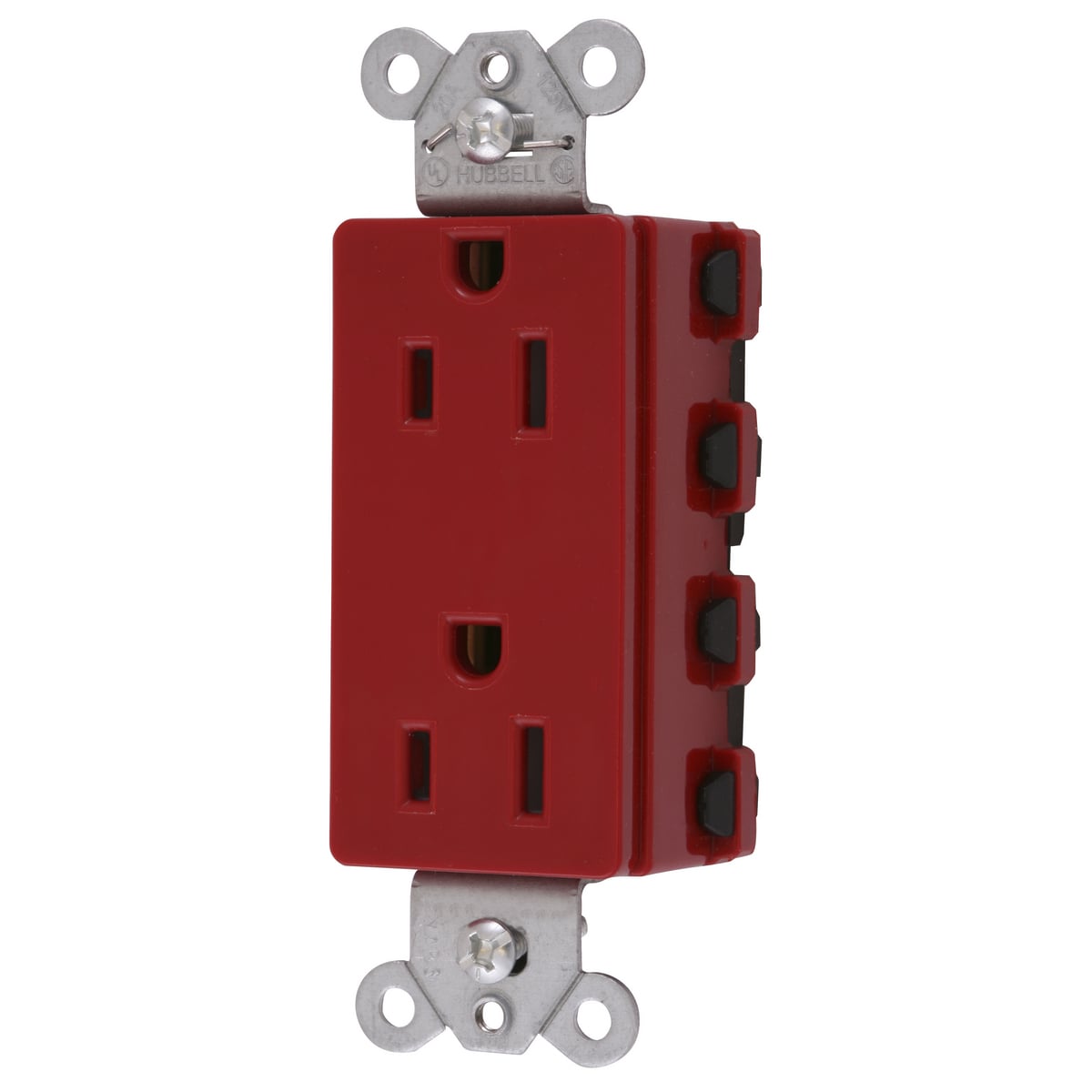

QUICKConnect SNAP2152RA 1-Phase Decorator Duplex Extra Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP2152RA
UPC:
783585248110
Item #:
179072

Availability

Location Available Qty
Available Available to Order

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP2152RA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Extra Heavy Duty Specification Grade
Color Red
Connection Connectorized
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Quick Connect- SNAPConnect
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585248110
GTIN 00783585248110
Item Type Standard Duplex
Size 3.28 in x 1.64 in x 1.1 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #12 AWG
