Appleton

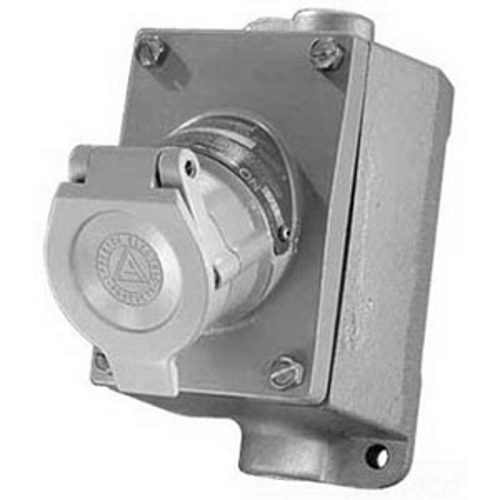

U-Line; Contender; 1-Gang Receptacle with Mounting Box; 20 Amp, 125 Volt AC, 3-Pole, 2-Wire, 3/4 Inch Feed-Thru Hub

MFR:
Appleton Electric
MFR #:
ENRC21201
UPC:
781381815390
Item #:
178547

Availability

Location Available Qty
Available Available to Order
$816.22 each

U-Line Contender 1-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box, Ne

Manuals and Documentation
Catalog Number ENRC21201
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For ECP Mating Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box
Mounting Surface
NEMA Rating 3R
Number of Outlets 1
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Covers are UL Listed when used with Contender series back boxes; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Fiberglass reinforced thermoset polyester insulating blocks; Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged; ECP plug fits U-Line explosionproof receptacles; U-Line Contender receptacles only available for use in combination with 1- and 2-gang EDS boxes incorporating such devices as pilot lights, switches and push buttons; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
Standard Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; UL Listed: E10784; UL 1203, UL 1010, UL 894
UPC 781381815390
GTIN 00781381815390
Item Type 1-Gang Receptacle With Mounting Box
Voltage Rating 125
