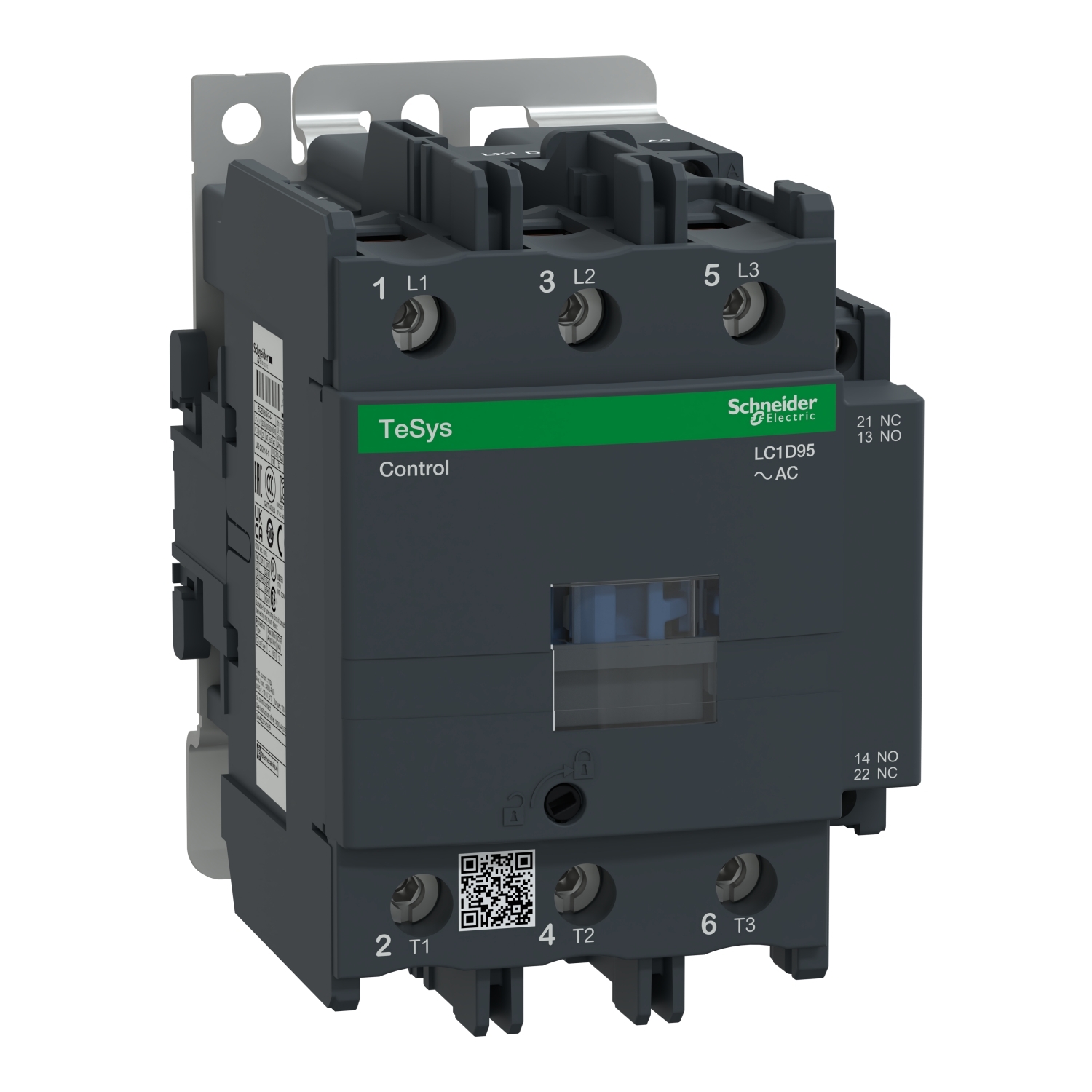

LC1D95E7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 48 V AC V Coil, 95/125 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D95E7
- Item #:
- 178005
LC1D95E7 TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 48 V AC V Coil, 95/125 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D95E7
- Item #:
- 178005
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$771.46
each
IEC contactor, TeSys D, nonreversing, 95A, 60HP at 480VAC, 3 phase, 3 pole, 3 NO, 48VAC 50/60Hz coil, open style
Manuals and Documentation
| Catalog Number | LC1D95E7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 48 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm² - cable stiffness: solid |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4049647&lang=en-us |
| GTIN | 03389110450910 |
| Item Type | Contactor |
