Hubbell Wiring Device - Kellems

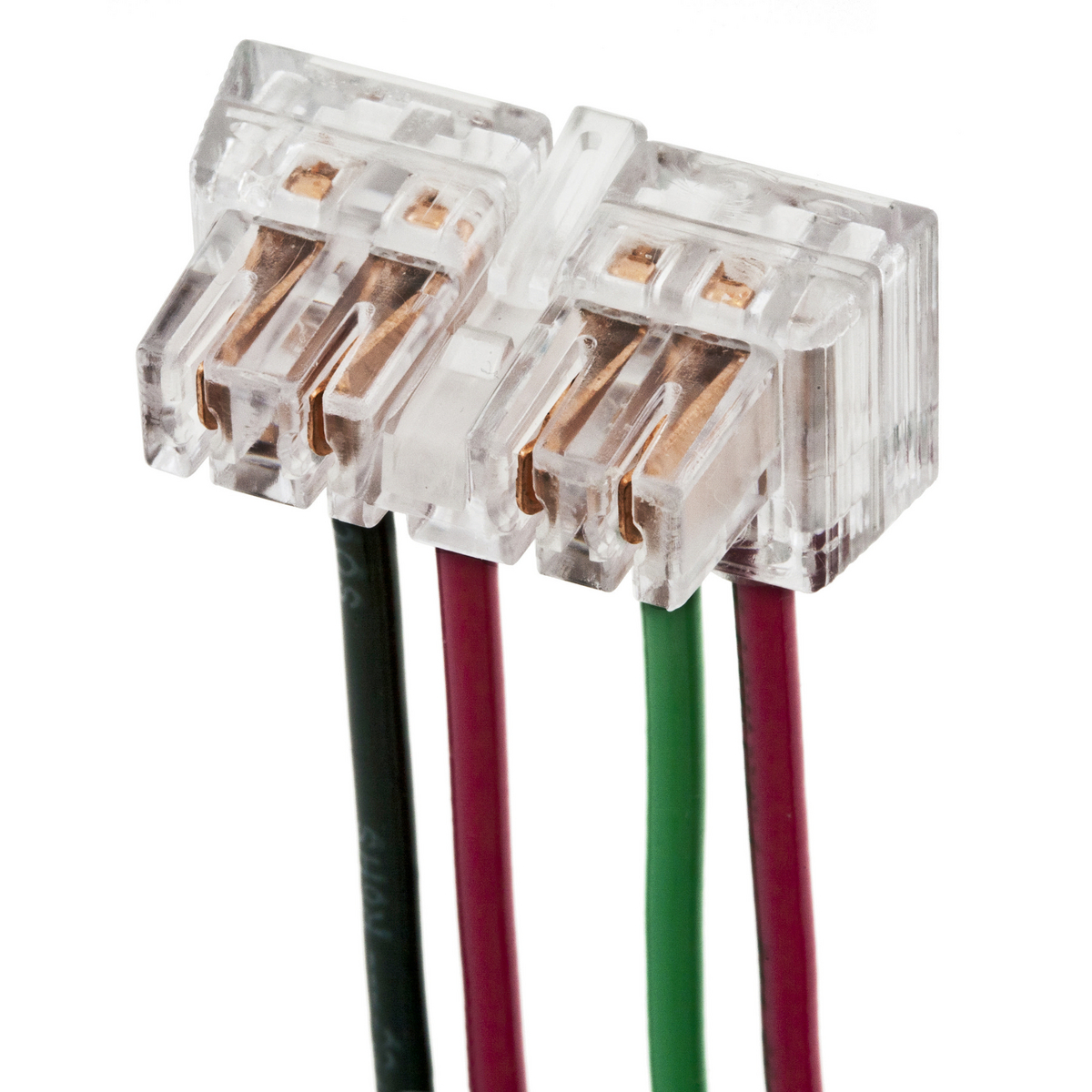

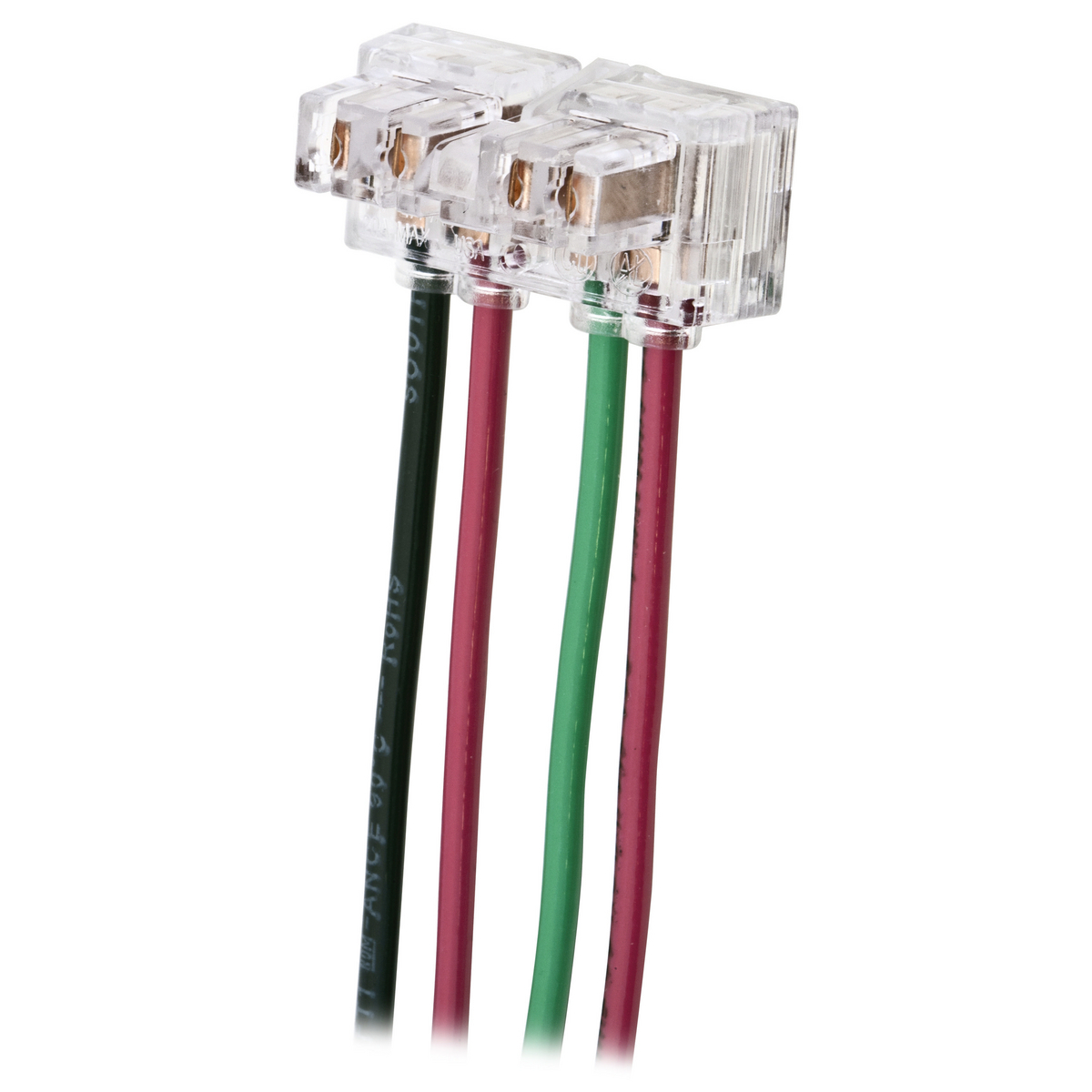

SNAP3W1NA 2-Position 4-Wire General Purpose Heavy Duty Right Angle Standard Screw Mount Switch Pigtailed Connector With 6 in Lead, 12 AWG Solid Wire, Fully Insulated Insulation, Polycarbonate

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP3W1NA
UPC:
783585189970
Item #:
177881

Availability

Location Available Qty
Available Available to Order
$6.22 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP3W1NA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Mexico
Made in USA No
Action Positive Snap
Application SNAPConnect Heavy Duty Switch Connector
Color Clear
Connection Connectorized
Contact Configuration Two Position
Contact Rating Per UL 20
Mounting Screw
Number of Poles 3
Operating Cycles 50,000 Cycles
Special Features Quick Connect Terminations
Standard UL Listed
UPC 783585189970
GTIN 00783585189970
Item Type Pigtailed Connector
Size 6.5 in x 1.39 in x 0.84 in
Environmental Conditions Indoor Dry unless protected by additional means
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating A or 20A 120/277
Wattage 5540 W
