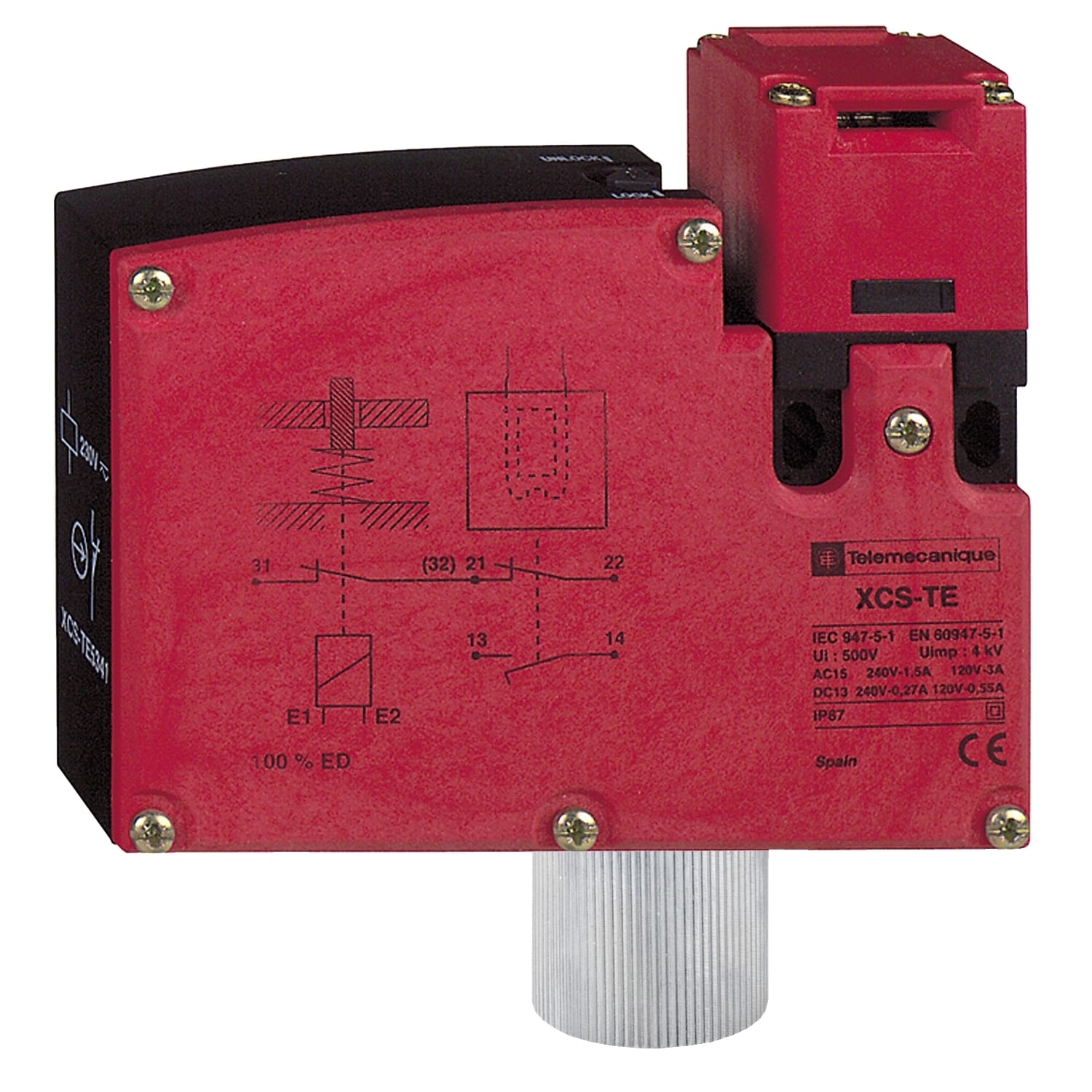

XCSTE7513 Preventa Turret Head Safety Interlock Switch, 240 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSTE7513
- UPC:
- 785901654995
- Item #:
- 177325
XCSTE7513 Preventa Turret Head Safety Interlock Switch, 240 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 2 Poles
- MFR #:
- XCSTE7513
- UPC:
- 785901654995
- Item #:
- 177325
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$464.08
each
plastic safety switch XCSTE - 2NC - slow break - 1 entry tapped 1/2" NPT -24V
Manuals and Documentation
| Catalog Number | XCSTE7513 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Slow-break, simultaneous |
| Amperage Rating | 6 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 2 NC |
| Insulation | Double insulated |
| Number of Poles | 2 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | Locking on energisation and unlocking on de-energisation of solenoid |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/ISO 12100-CSA C22.2 NO 14-UL 508-EN 1088/ISO 14119-EN/IEC 60204-1-EN/IEC 60947-5-1,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860148&lang=en-us |
| UPC | 785901654995 |
| GTIN | 03389110825466 |
| Item Type | Safety switch |
| Size | 1.30 |
| Operating Temperature | -25-60 A Degrees C |
| Voltage Rating | 24 V - 20...10 % |
