BURNDY

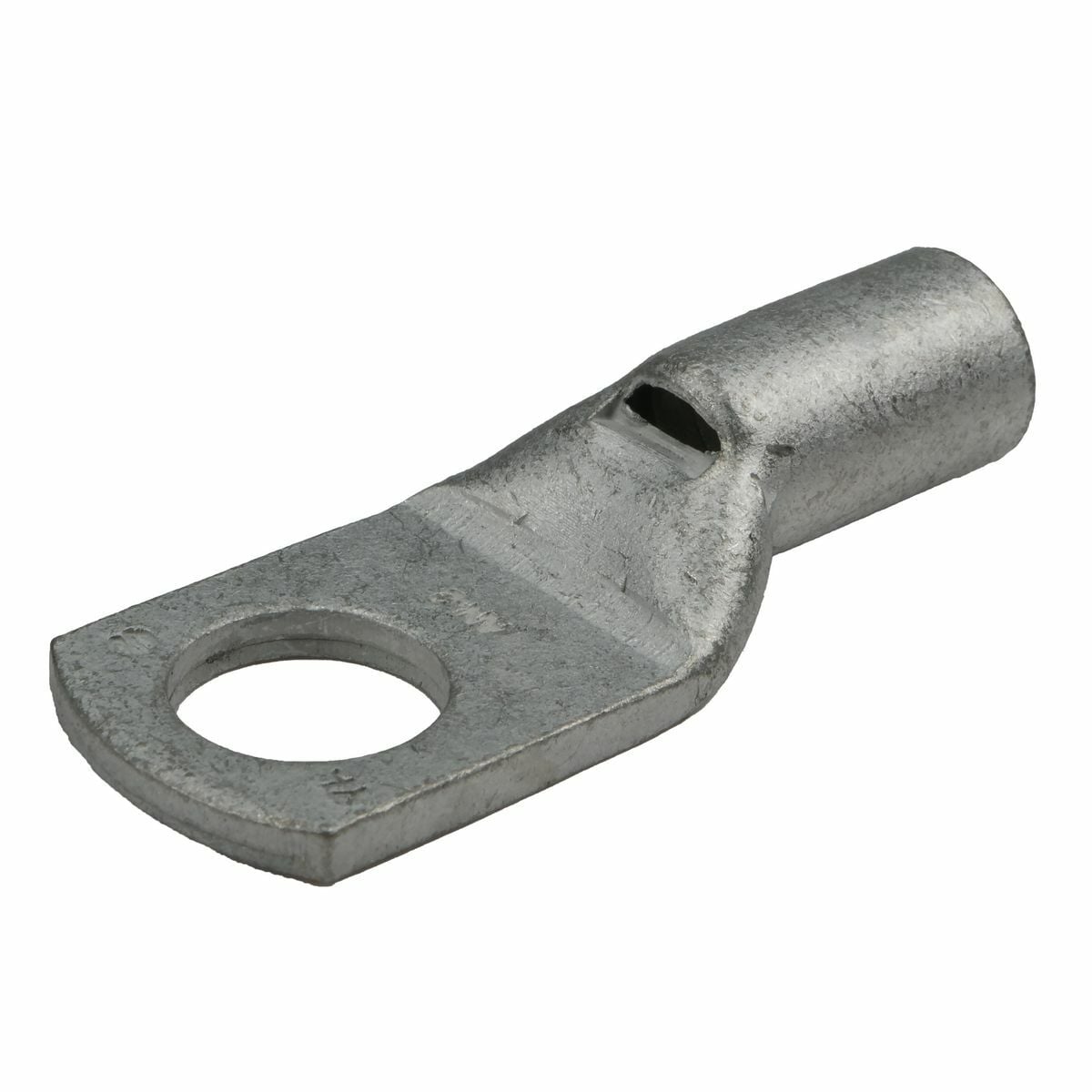

YAV28L YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 4/0 AWG Stranded Copper Conductor, Die Code: 46, 3/8 in Stud, Electrolytic Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YAV28L
UPC:
781810807217
Item #:
176691

Availability

Location Available Qty
Available 3,584 ea
$11.24 each
Manuals and Documentation
Catalog Number YAV28L
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Material Copper
Special Features Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y35, Y39 Tool, UV28L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV28L Die Nest, Y34PA Die Indentor, (1) Crimp, Ms20659 Dash Number: -123, Package: Bulk, Die Index: 46, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool
Standard UL467;Military Specified (Mil-Spec)
UPC 781810807217
GTIN 00781810807217
Item Type Ring Tongue
