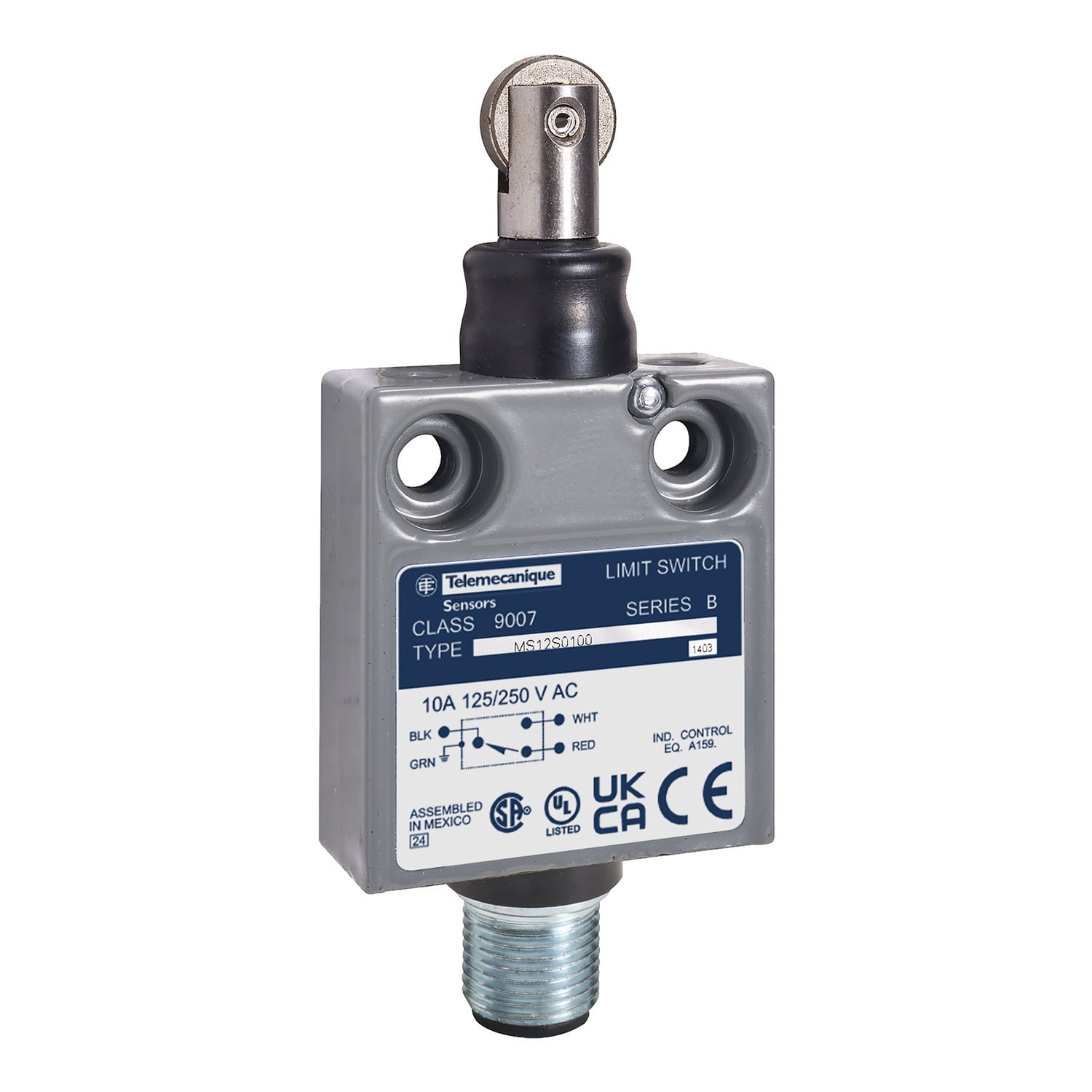

Limit switch, 9007, 240 VAC 10amp ms +options
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007MS12S0054
- UPC:
- 785901187714
- Item #:
- 176383
Limit switch, 9007, 240 VAC 10amp ms +options
- MFR #:
- 9007MS12S0054
- UPC:
- 785901187714
- Item #:
- 176383
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$234.20
each
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
Manuals and Documentation
| Catalog Number | 9007MS12S0054 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | By 30 Degrees cam;Lateral approach, 2 directions;Snap action |
| Actuator | Spring return parallel roller plunger steel booted |
| Amperage Rating | 3 |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Connection | Male connector M12 micro DC type 4 pins bottom |
| Contact Configuration | NC-NO;Form C |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CE-UL-CSA,IP67 IEC 60529,LR 25490 CLASS 32 11 03-E78403 |
| UPC | 785901187714 |
| GTIN | 00785901187714 |
| Item Type | Limit switch |
| Size | 0.62 |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 3 A 28 V DC-3 A 120 V AC-3 A 240 V AC |
