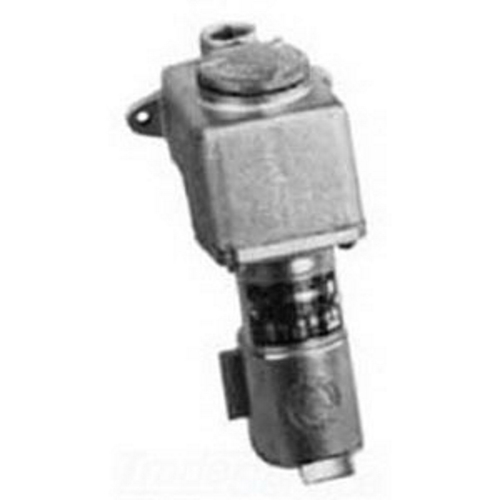

CESD Series Receptacle with Mounting Box; 60 Amp, 125 - 250 Volt AC, 4-Pole, 3-Wire, Pressure Wire Terminal, 1-1/4 Inch Vertical Feed-Thru Hub
- MFR:
- Appleton Electric
- MFR #:
- CESD-6034
- UPC:
- 781381188357
- Item #:
- 176328
CESD Series Receptacle with Mounting Box; 60 Amp, 125 - 250 Volt AC, 4-Pole, 3-Wire, Pressure Wire Terminal, 1-1/4 Inch Vertical Feed-Thru Hub
- MFR #:
- CESD-6034
- UPC:
- 781381188357
- Item #:
- 176328
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Appleton CESD Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 125 - 250 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle And Cover, Malleable Iron Mounting Box, Mounting: Surface Mount With 1-1/4 IN Feed-Thru Hub, Connection: Pressure Wire Terminal, Motor Horsepower: 5 HP At 125 - 250 VAC, Finish: Ceramic Burnished Receptacle And Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) Mounting Box, Dimensions: 7-1/4 IN Width X 12.75 IN Height X 9.31 IN Depth, Standard: Class I, Division 1 And 2, Groups D, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL Listed: E10784, CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1, For CPH Mating Plugs
Manuals and Documentation
| Catalog Number | CESD-6034 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For CPH Mating Plugs |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle And Cover, Malleable Iron Mounting Box |
| Mounting | Surface |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Furnished with vertical feed-through hubs; Explosionproof; Delayed-action safety construction with Slide-Lok design; Factory sealed: no external seals required, arcing is safely confined to receptacle interior; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use; Unique design brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Smooth, rounded integral bushing in each hub protects conductor insulation; Fiber glass reinforced polyester insulating blocks; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps |
| Standard | Class I, Division 1 And 2, Groups D; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784; CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1 |
| UPC | 781381188357 |
| GTIN | 00781381188357 |
| Item Type | CESD Series Receptacle With Mounting Box |
| Voltage Rating | 125 - 250 |
