Discontinued

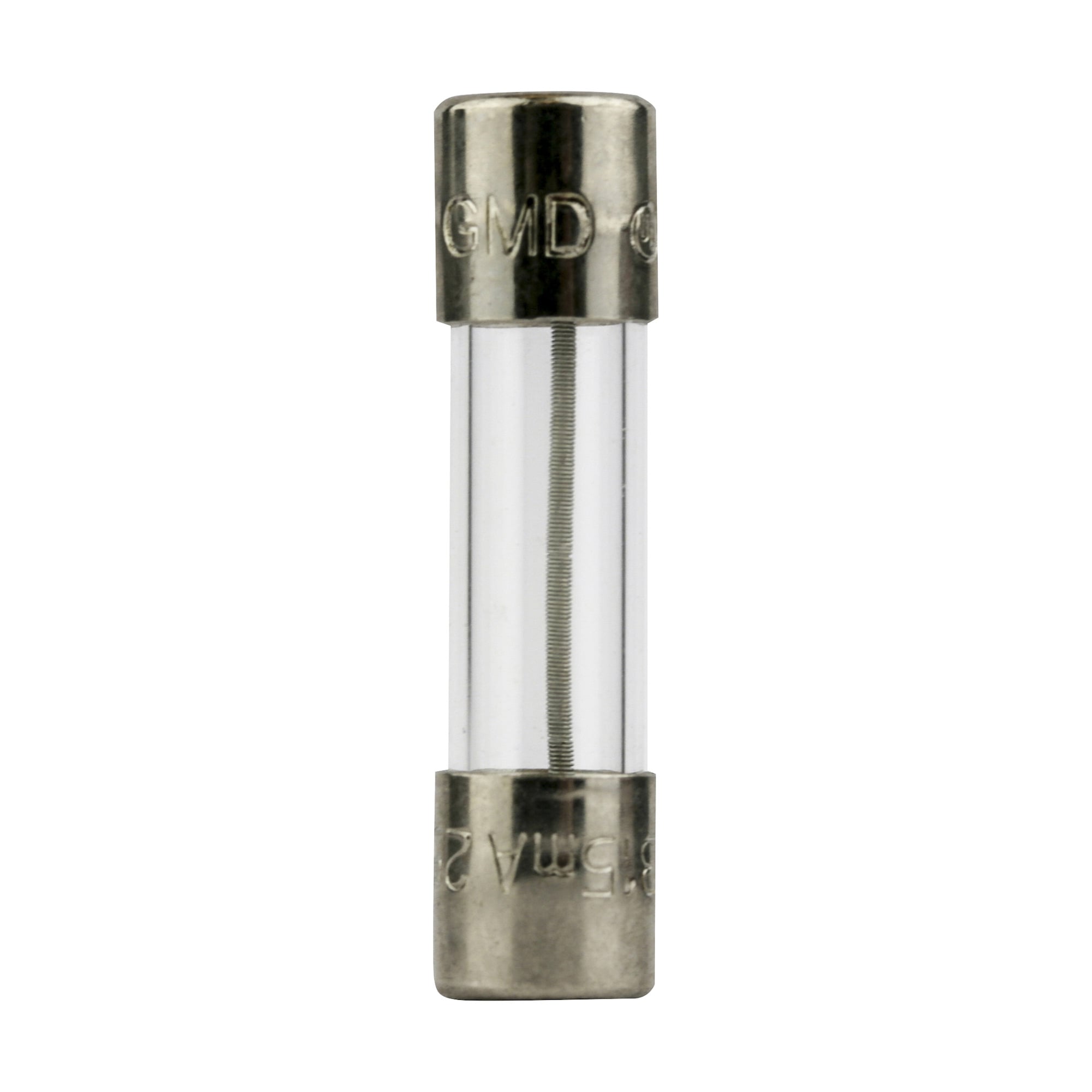

GMA-1A Electronic Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- GMA-1A
- UPC:
- 051712716642
- Item #:
- 176016
Discontinued
GMA-1A Electronic Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1 A, 250 VAC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR #:
- GMA-1A
- UPC:
- 051712716642
- Item #:
- 176016
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
| Catalog Number | GMA-1A |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 0.0416666666666667 |
| Application | Electronic Circuits |
| Connection | Ferrule End X Ferrule End |
| Indicator | Non Indicating |
| Interrupt Rating | 0.416666666666667 |
| Material | Brass |
| Response Time | 2 Min Maximum At 200% |
| Special Features | Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap |
| Standard | UL 248-14, CSA, CE |
| UPC | 051712716642 |
| GTIN | 00051712716642 |
| Item Type | Electronic, Fast Acting |
| Length | 0.75 |
| Length UOM | Inch |
| Width | 0.25 |
| Width UOM | Inch |
| Height | 0.25 |
| Height UOM | Inch |
| Weight | 0.002 |
| Weight UOM | Pounds |
| Size | 5 mm Diameter X 20 mm Length |
| Voltage Rating | 250 V |
