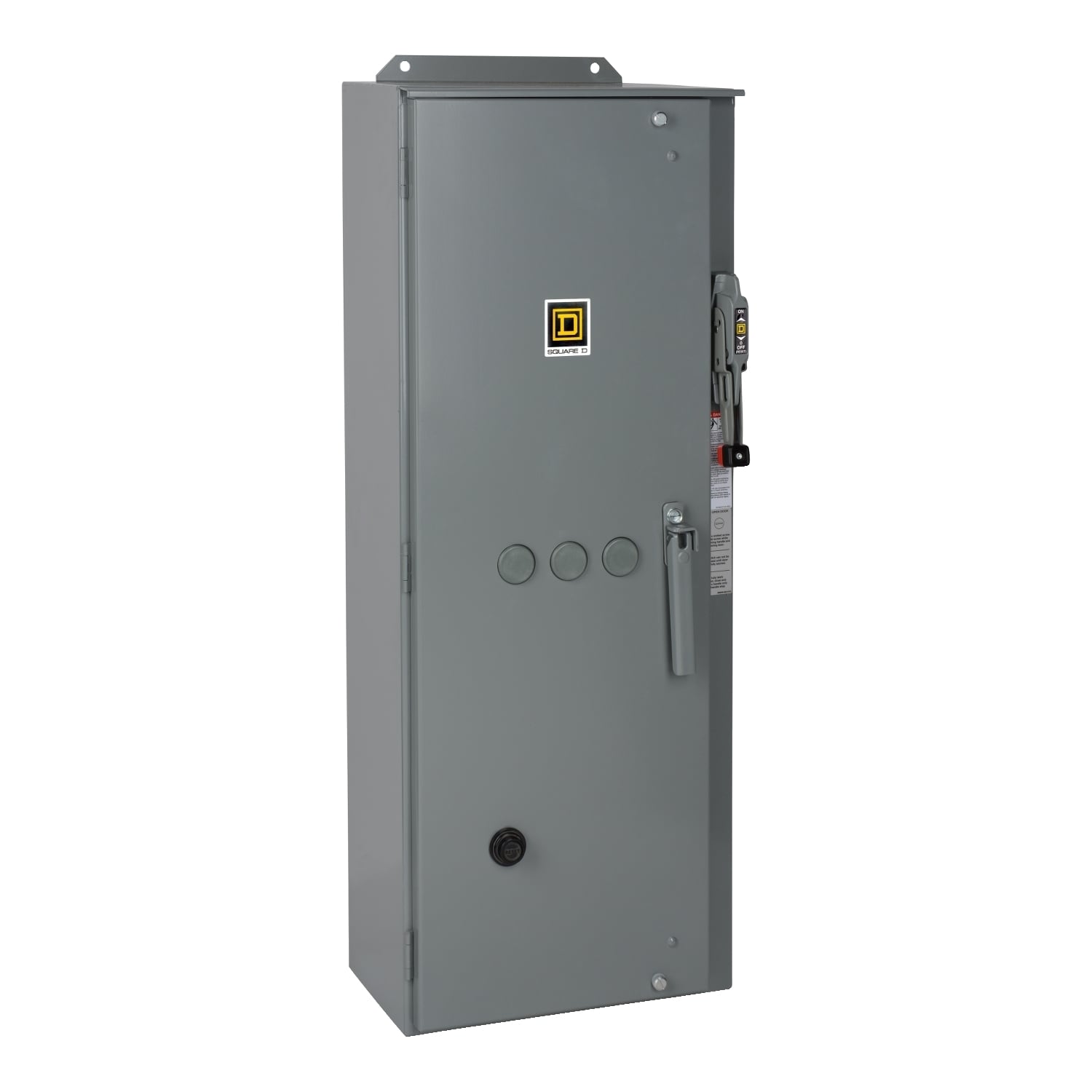

8538SEA23V02S Type S Combination Magnetic Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8538SEA23V02S
- UPC:
- 785901458944
- Item #:
- 175992
8538SEA23V02S Type S Combination Magnetic Starter, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR #:
- 8538SEA23V02S
- UPC:
- 785901458944
- Item #:
- 175992
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 3 starters have ratings of up to 50 HP at 480 and 600 VAC three phase. Combination starter has 100 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type CC thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 42.00 inches tall, 15.25 inches wide and 10.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8538SEA23V02S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901458944 |
| GTIN | 00785901458944 |
