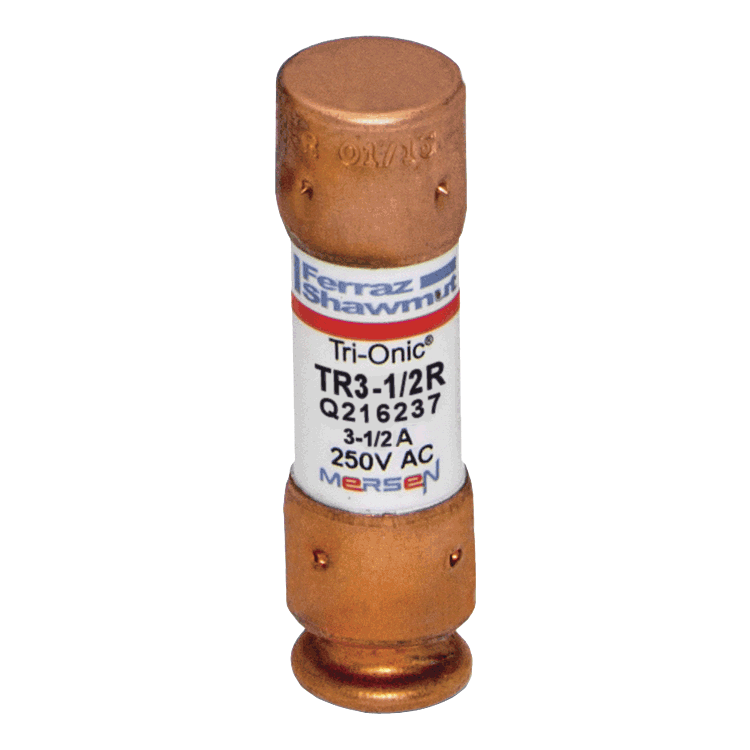

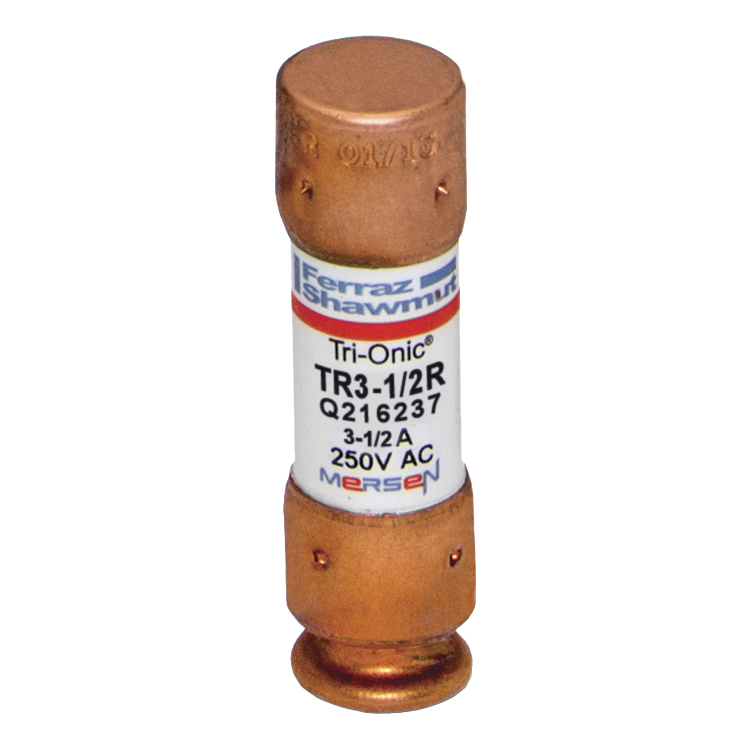

TR3-1/2R Current Limiting Low Voltage Time Delay Fuse
- MFR:
- Mersen
- MFR #:
- TR3-1/2R
- UPC:
- 782001747701
- Item #:
- 174081
TR3-1/2R Current Limiting Low Voltage Time Delay Fuse
- MFR #:
- TR3-1/2R
- UPC:
- 782001747701
- Item #:
- 174081
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$45.23
each
Fuse TR-R - Class RK5 - Time-Delay 250VAC 160VDC 3.5A Ferrule Tri-Onic
Manuals and Documentation
| Catalog Number | TR3-1/2R |
| Manufacturer | Mersen |
| Brand | Mersen |
| Application | Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) Easy-to-read label for quick brand recognition and replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current limitation |
| Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only |
| RoHS URL | https://pim.mersen.com/5649318D2E1842849A1E4E47B890FA8E-128.pdf |
| UPC | 782001747701 |
| GTIN | 00782001747701 |
| Item Type | Class RK5 |
| Size | 2 x 0.56 |
| Voltage Rating | 250 |
