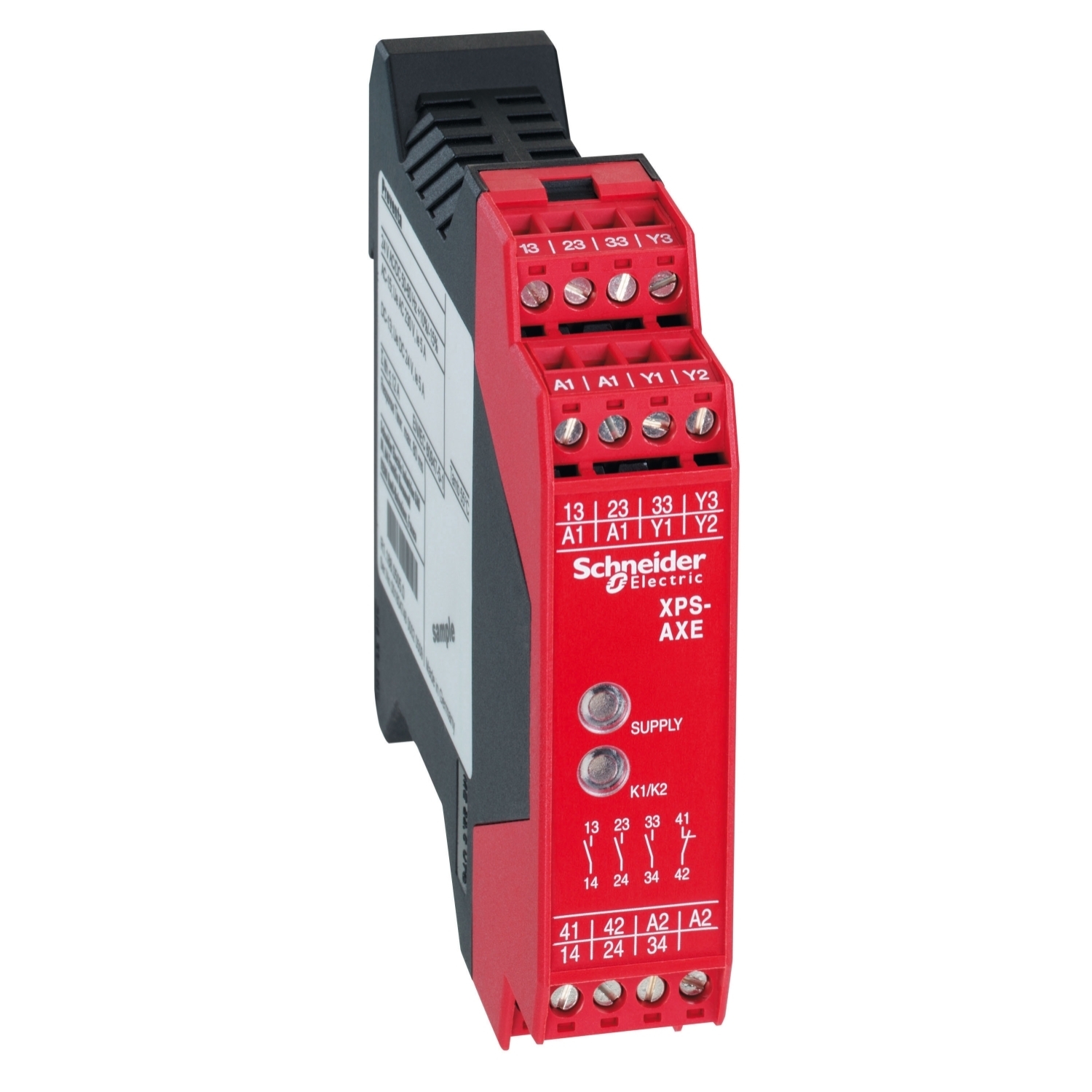

This XPSAXE safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

Manuals and Documentation
Catalog Number XPSAXE5120P
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Germany
Made in USA No
Application For emergency stop and switch monitoring
Connection Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel;captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end;captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end;captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel;captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel;captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end;captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end;captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel
Mounting Din Rail
Output Relay instantaneous opening, 3 NO, volt-free
Power Supply 24 V DC - 15...10 %;24 V AC
Standard DC > 99 % EN/ISO 13849-1;MTTFd = 457 years EN/ISO 13849-1;PFHd = 3E-8 1/h EN/IEC 62061;Can reach PL e/category 4 EN/ISO 13849-1;can reach SILCL 3 EN/IEC 62061
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=45114927&lang=en-us
GTIN 03389119042994
Item Type Preventa safety module
