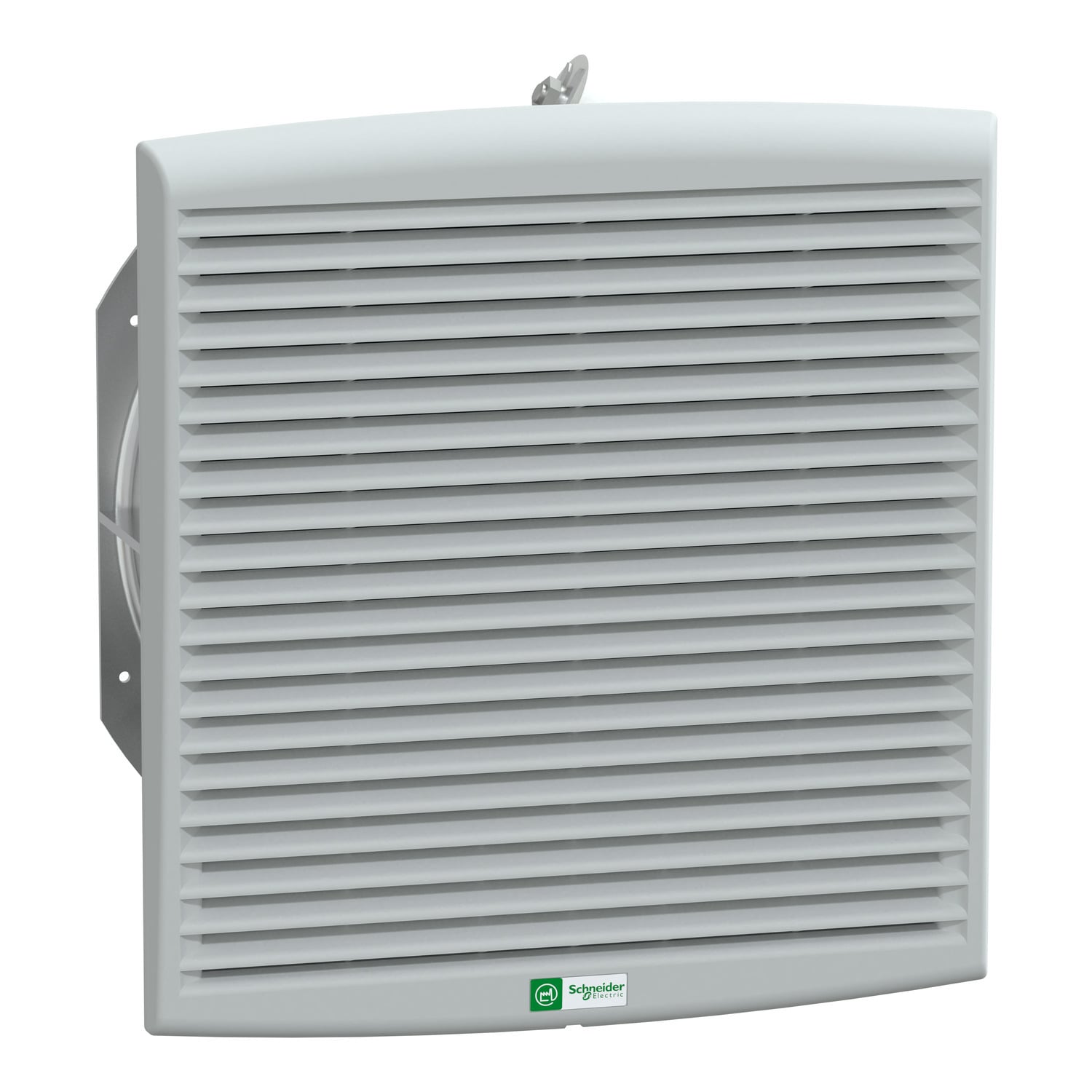

NSYCVF850M115PF ClimaSys Self-Extinguishing Forced Ventilation Fan, 115 V AC, 1.279/1.6 A, 145/182 W Power Rating, 850 cu-m/hr Air Flow, IP54 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- NSYCVF850M115PF
- Item #:
- 173612
NSYCVF850M115PF ClimaSys Self-Extinguishing Forced Ventilation Fan, 115 V AC, 1.279/1.6 A, 145/182 W Power Rating, 850 cu-m/hr Air Flow, IP54 Enclosure
- MFR #:
- NSYCVF850M115PF
- Item #:
- 173612
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$684.12
each

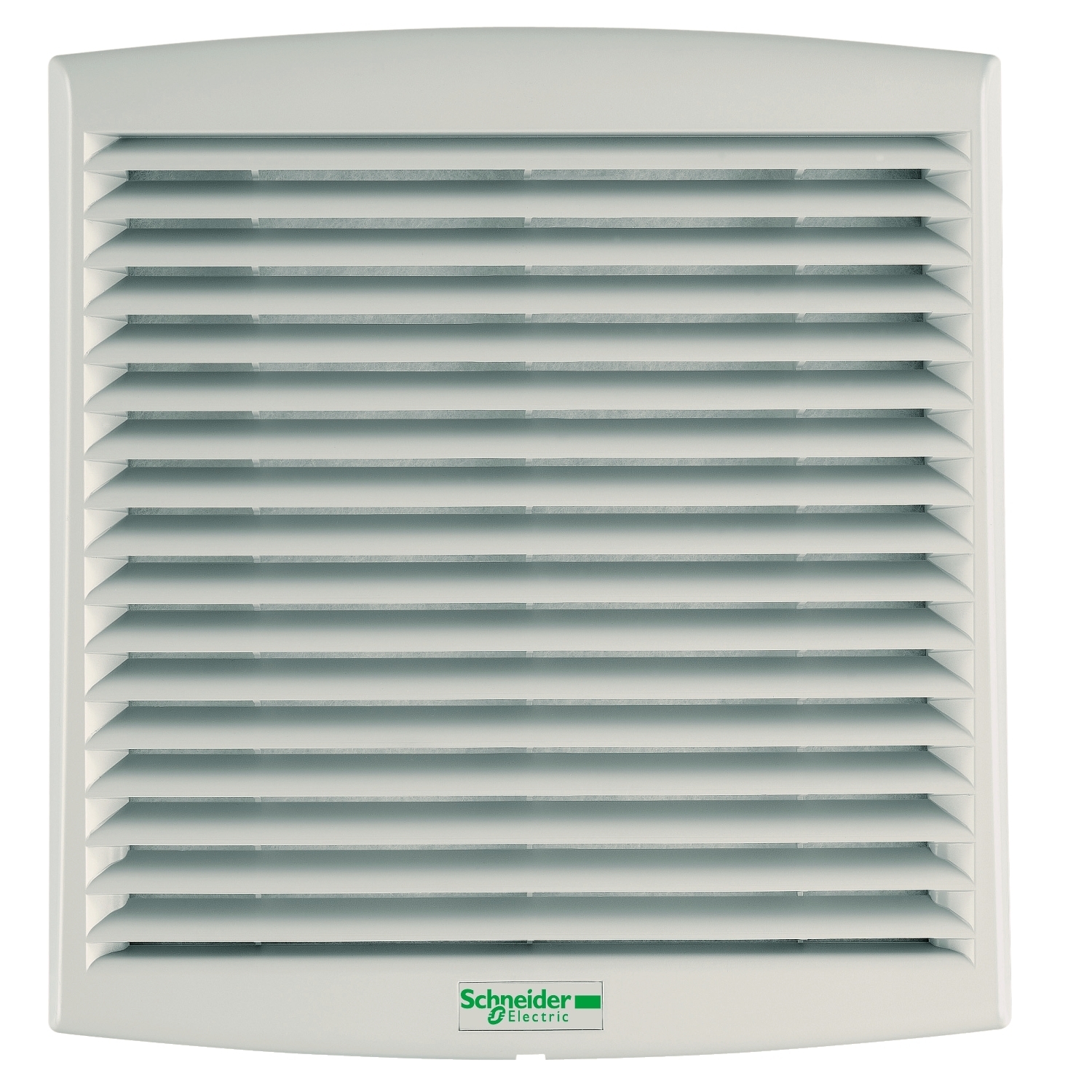

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 145W 50 Hz, 182W 60 Hz. Free flow rate with standard filter of 944 m3/h at 50 Hz and 983 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Manuals and Documentation
| Catalog Number | NSYCVF850M115PF |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Consist of | 1 axial motor;2 protective grille on the front and rear surfaces;1 filter front of axial motor;1 outlet grille front;1 cut-out template |
| Input Voltage | 115 V 50/60 Hz |
| Material | Outlet grille injected thermoplastic (ASA PC) |
| Special Features | Terminal block |
| Standard | IP54 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10178378&lang=en-us |
| GTIN | 03606480151354 |
| Item Type | Fan |
| Width | External: 316 mm |
| Height | External: 336 mm |
| Depth | External : 162 mm |
