Telemecanique

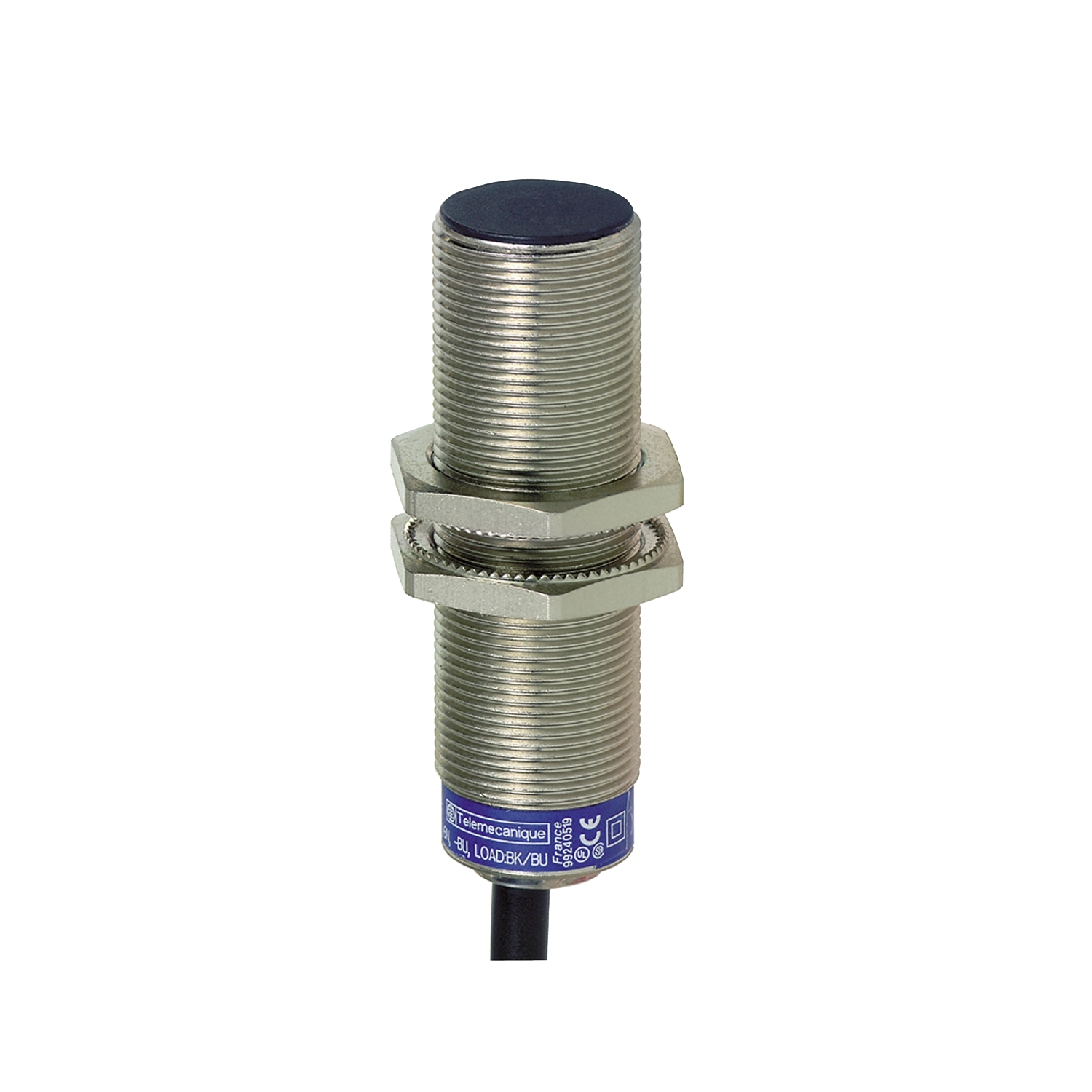

XS1M18AB120 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Analog Output, 1NC Contact, 10 to 36/12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M18AB120
UPC:
785901721628
Item #:
173217

Availability

Location Available Qty
Available Available to Order
$361.00 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. This solid-state sensor is designed for position, displacement and deformation control/monitoring. The operating principle of this sensor is that of a damped oscillator. The degree of damping will depend on the distance of an object from the sensing face. The sensor will sense the distance and produce an output current with a value directly proportional to this distance. It is a diameter 18mm sensor with an 4mA to 20mA analogue output signal. Two-wire, DC supply, 12V to 24V. It features a diameter 18mm metal case and a 2m long cable. It has a sensing distance of 5mm.

Manuals and Documentation
Catalog Number XS1M18AB120
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Cable
Control Output 1 NC
Enclosure Nickel Plated Brass
Material Metal
Mounting Flush
Sensing Range 5 MM,> 0.16...0.31 IN (> 4...8 MM)
Sensor 18 MM,53 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 12...24 V DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866526&lang=en-us
UPC 785901721628
GTIN 03389110332780
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
