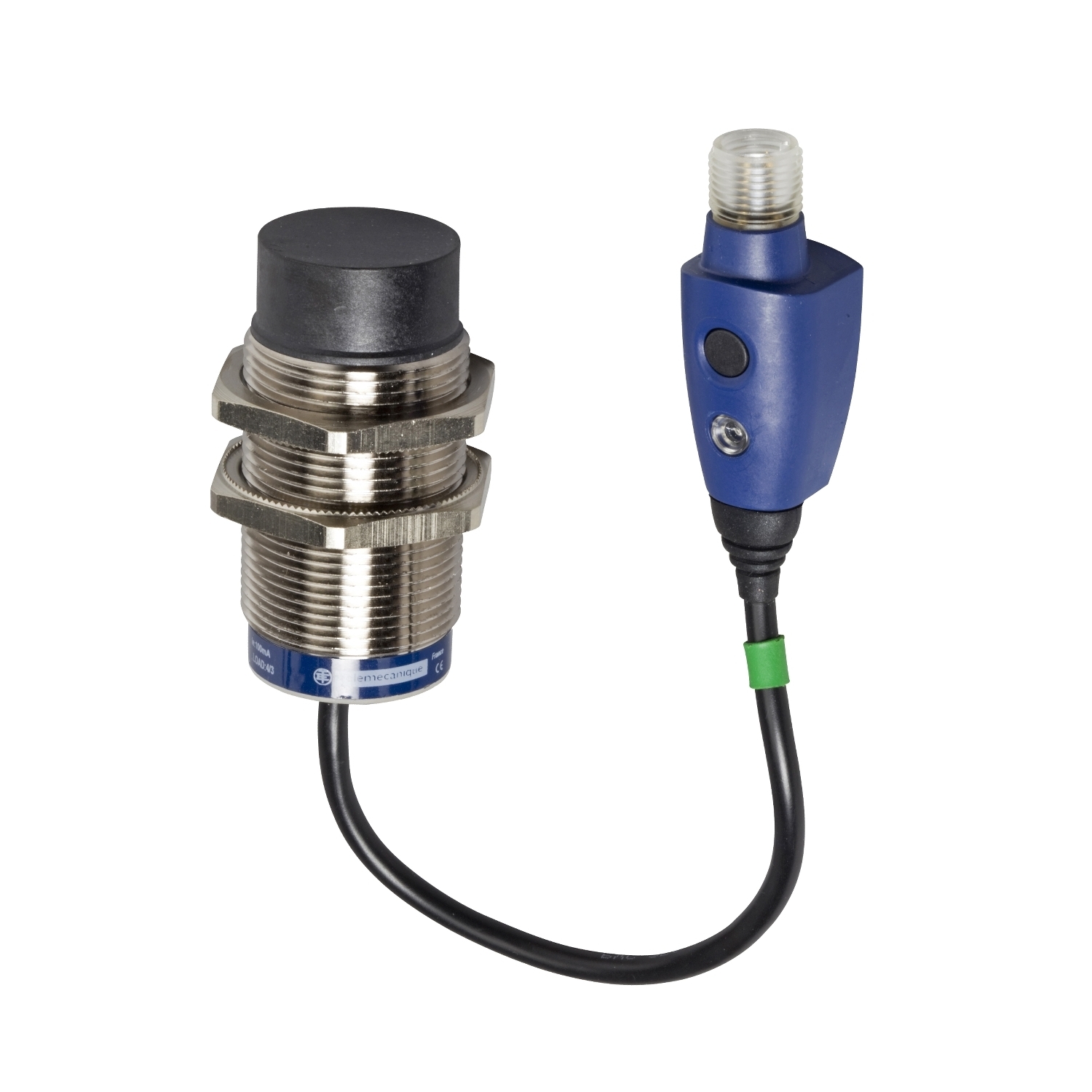

XS630B2PAL01M12 Osiprox Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS630B2PAL01M12
- UPC:
- 785901455684
- Item #:
- 17288
XS630B2PAL01M12 Osiprox Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR #:
- XS630B2PAL01M12
- UPC:
- 785901455684
- Item #:
- 17288
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). It feature a nickel plated brass case and a remote M12 connector on 0.15m flying lead. It is an adjustable sensor.it has a nominal sensing distance of 0mm to 18mm non flush mounted and 0mm to 11mm flush mounted. Three-wire, DC supply, 12V to 24V with protection against reverse polarity, NO function, PNP discrete output.
Manuals and Documentation
| Catalog Number | XS630B2PAL01M12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | - |
| Connector | Remote male connector M12, 4 pins |
| Control Output | DC 3-WIRE (PNP) - 1 N.O. |
| Enclosure | Nickel Plated Brass |
| Indicator | Supply on and teach mode 1 LED green);output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | > 0.59...1.57 in (> 15...40 mm) |
| Sensor | 63 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP67 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869976&lang=en-us |
| UPC | 785901455684 |
| GTIN | 03389110148060 |
| Item Type | Inductive proximity sensor;Cylindrical M30 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT, CORROSION RESISTANT AND SUBMERSIBLE (INDOOR/OUTDOOR) |
| Operating Temperature | -25-70 A Degrees C |
