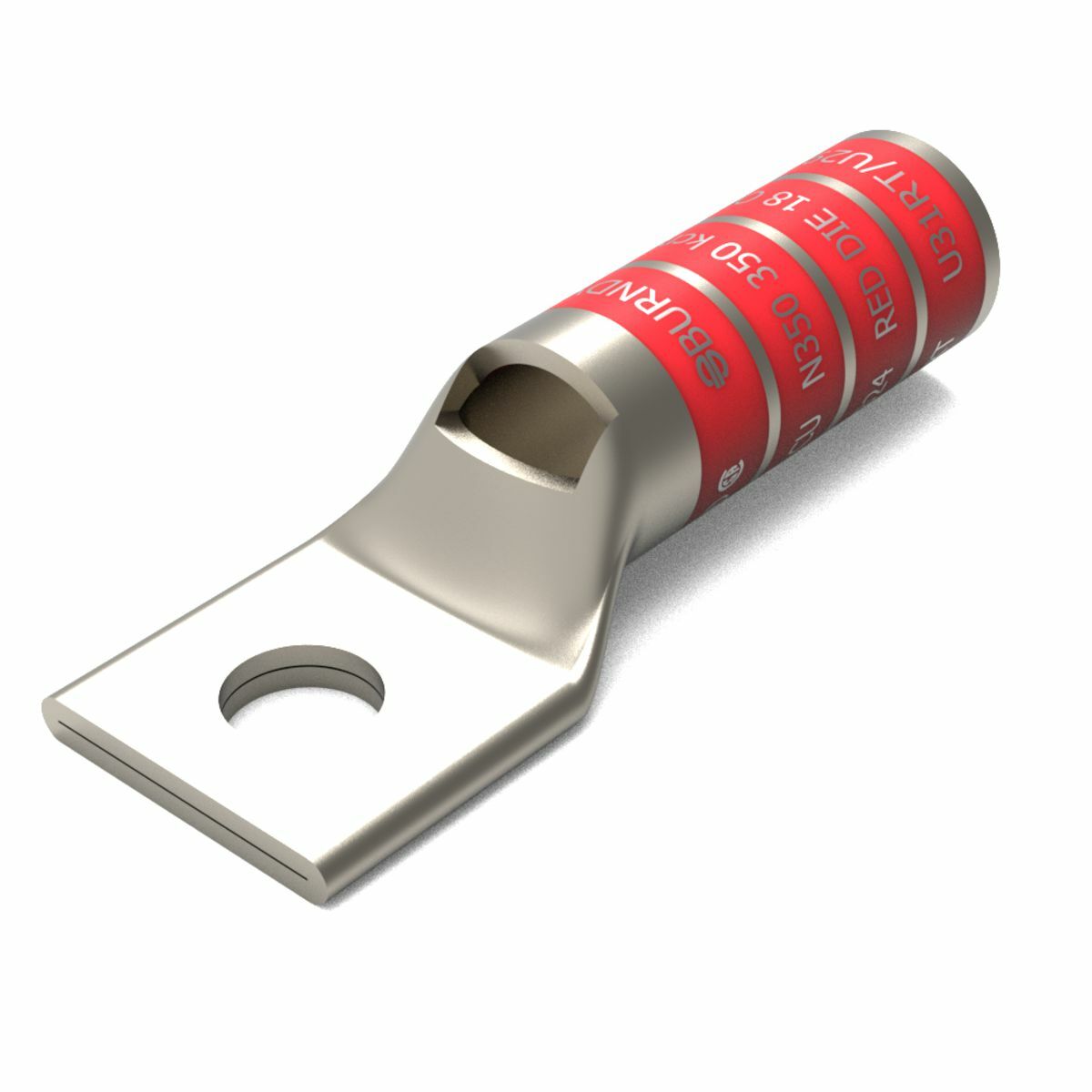

YAZ31TC38 1-Hole Uninsulated Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18/324, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ31TC38
- UPC:
- 781810240274
- Item #:
- 172371
YAZ31TC38 1-Hole Uninsulated Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18/324, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YAZ31TC38
- UPC:
- 781810240274
- Item #:
- 172371
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$49.90
each
Manuals and Documentation
| Catalog Number | YAZ31TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 2-1/16 IN, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W31VT, W31RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U31RT, U29ART Die, (4), Y46 Tool, U31RT, U29ART Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Die Index: 18 Or 324 |
| Standard | UL 486A-486B |
| UPC | 781810240274 |
| GTIN | 00781810240274 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
