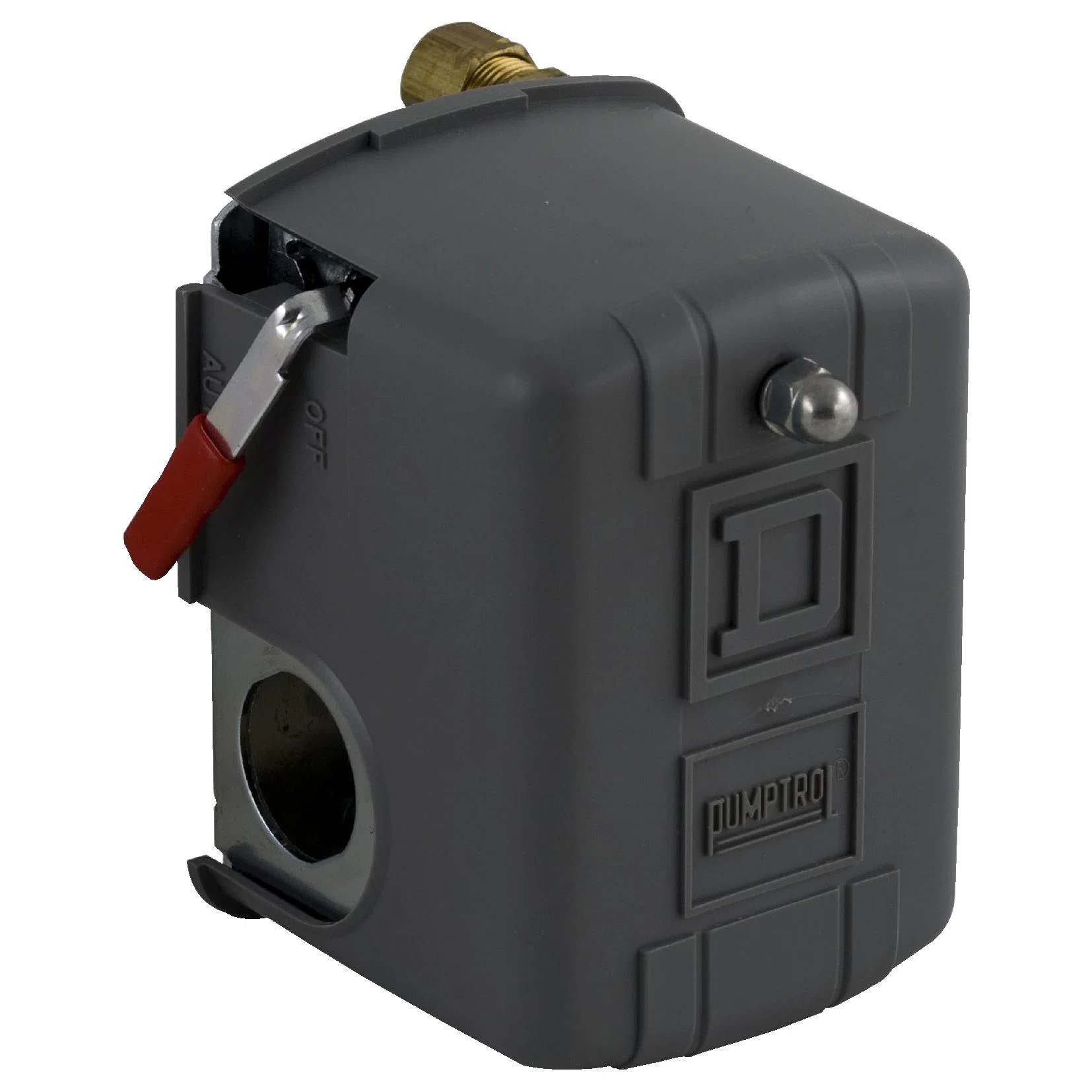

Pumptrol, air compressor switch 9013FH, fixed differential, Off at 135 PSI, low hp
- MFR:
- Schneider Electric
- MFR #:
- 9013FHG19J39M1X
- UPC:
- 785901543923
- Item #:
- 172264
Pumptrol, air compressor switch 9013FH, fixed differential, Off at 135 PSI, low hp
- MFR #:
- 9013FHG19J39M1X
- UPC:
- 785901543923
- Item #:
- 172264
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$75.84
each
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.
Manuals and Documentation
Features
- 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPT External pressure
- Off at 135 psi pressure
- Maintained manual cut-out lever (auto-off)
- 2-way pressure release value
| Manufacturer Part Number | 9013FHG19J39M1X |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901543923 |
| EAN | 0785901543923 |
| Country Of Origin | MX |
| Dimensions | 3.1 in W x 3.76 in D x 3.92 in H |
| Enclosure Type | IP20/NEMA 1 |
| Housing Material | Polypropylene |
| Series | 9013 |
| Temperature Rating | -33 to 257 deg F |
| Type | Type F |
| Alternative Part Number | 9583275 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ECCN: EAR99 | CE Certified | CSA File LR25490 | IEC 60529 | REACH Compliant | UL 50/508/File E12158 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Controlling small electrically driven air compressors |
| Connection Material | Zinc Plated Steel |
| Connection Type | Screw Clamp |
| Contact Configuration | 2NC DPST-DB |
| Diaphragm Material | Nitrile |
| Operating Cycles | 10 cpm |
