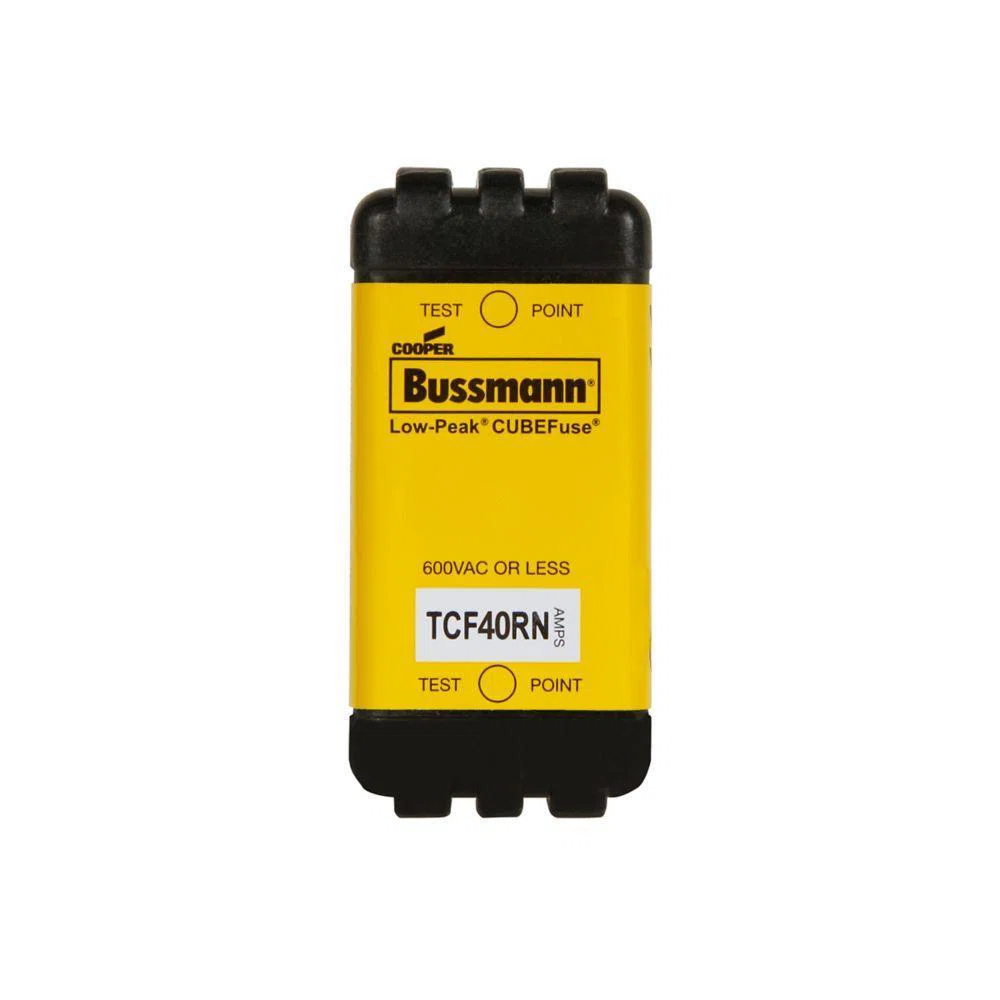

TCF40RN CUBEFuse Low-Peak Finger Safe Inrush Current Withstand Non-Indicating Time Delay Fuse, 40 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade Body
- MFR:
- Eaton
- MFR #:
- TCF40RN
- UPC:
- 051712220989
- Item #:
- 171758
TCF40RN CUBEFuse Low-Peak Finger Safe Inrush Current Withstand Non-Indicating Time Delay Fuse, 40 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Blade Body
- MFR #:
- TCF40RN
- UPC:
- 051712220989
- Item #:
- 171758
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$226.58
each
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Manuals and Documentation
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak™ class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 100 kAIC at 300 Vdc/300 kAIC at 600 Vac interrupt rating
- 10 s at 500% response time
| Manufacturer Part Number | TCF40RN |
| Stripped Manufacturer Part Number | TCF40RN |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712220989 |
| Amperage Rating | 40 A |
| Color | Black |
| Material | Glass Filled Polyethersulfone |
| Mounting Type | Chassis/DIN Rail |
| Series | TCF |
| Type | Finger Safe Inrush Current Withstand Non-Indicating |
| Voltage Rating | 600 V AC/300 V DC |
| Alternative Part Number | 10771138 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | CSA Certified ,UL Listed,CE Marked,RoHS Compliant |
| Application | Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory |
| Body Size | 2 in L x 1 in W x 2 in H |
| Body Type | Square Blade |
| Class | CF |
| Element | Dual |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 100/300 kA |
| Response Time | 10 s at 500% |
| Terminal Type | Blade |
