Discontinued

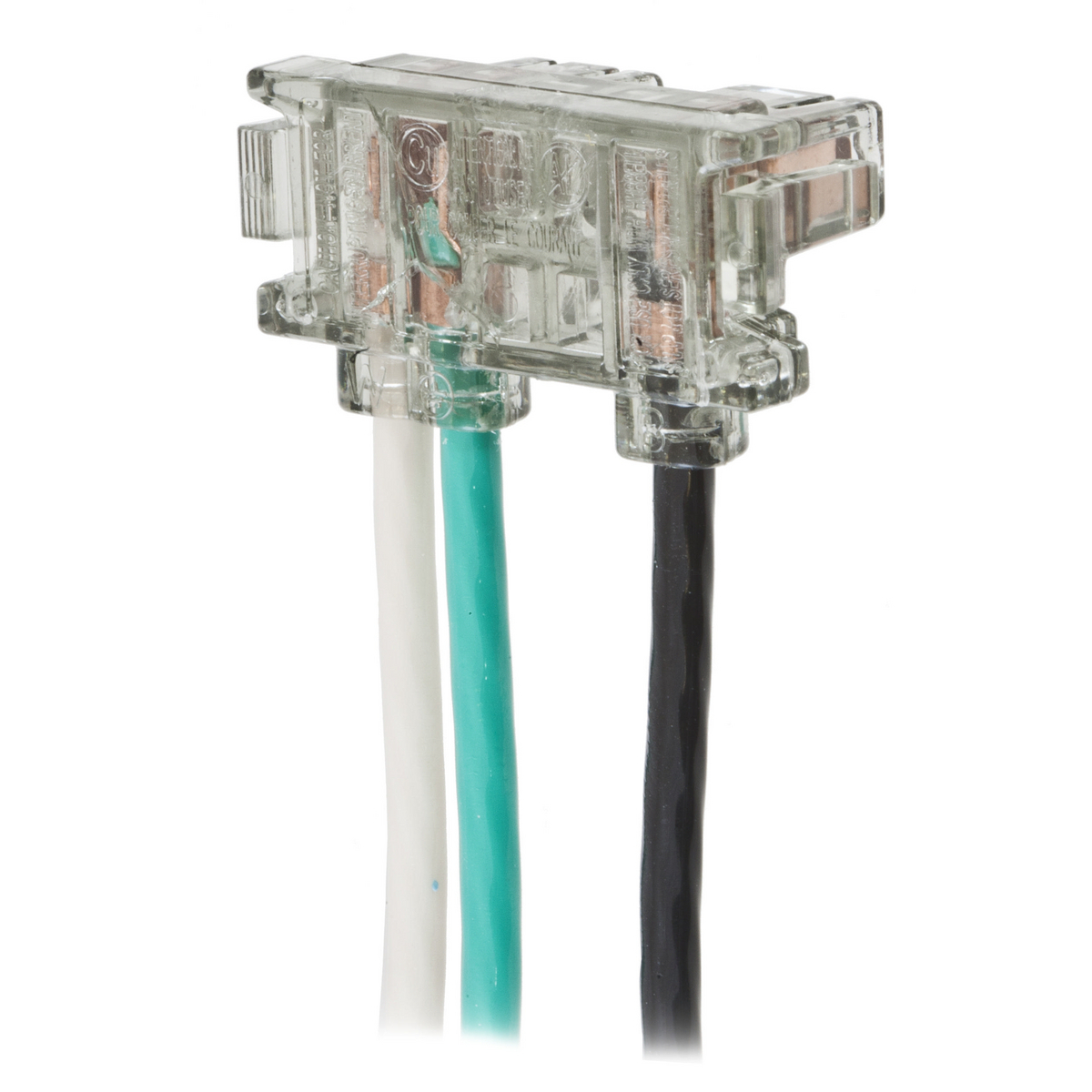

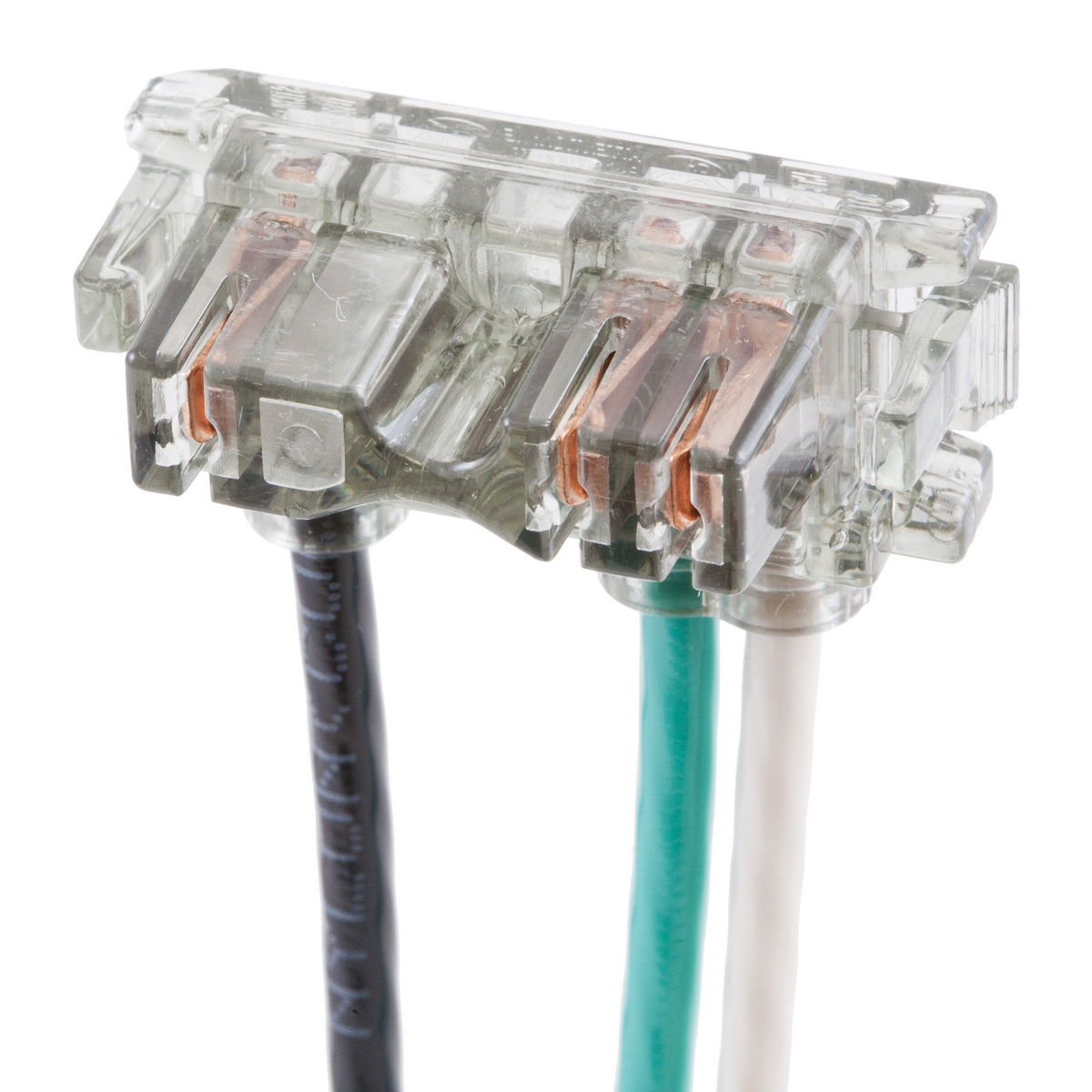

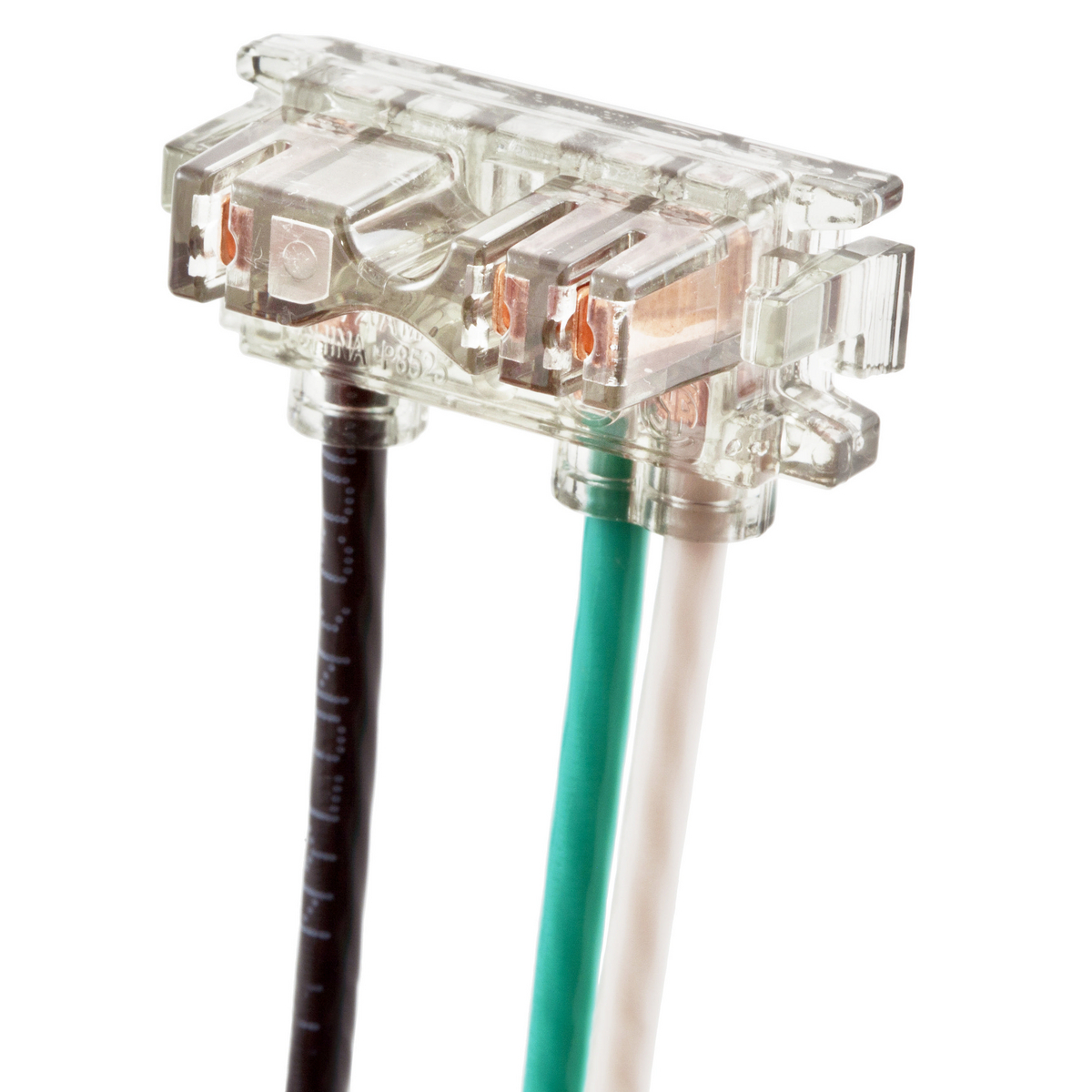

SNAP2RA 2-Pole Grounding Right Angled Standard Cord Mount Pigtailed Connector, 3 12 AWG Stranded Wire, For Use With Receptacle, Polycarbonate
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- SNAP2RA
- UPC:
- 783585251998
- Item #:
- 171031
Discontinued
SNAP2RA 2-Pole Grounding Right Angled Standard Cord Mount Pigtailed Connector, 3 12 AWG Stranded Wire, For Use With Receptacle, Polycarbonate
- MFR #:
- SNAP2RA
- UPC:
- 783585251998
- Item #:
- 171031
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3.53
each
Manuals and Documentation
Features
- Discontinued
| Catalog Number | SNAP2RA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Quick Connection |
| Conductor Range | Pre-Wired #12 THHN |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Polycarbonate |
| Mounting | Cord |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Stranded Leads |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA� WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585251998 |
| GTIN | 00783585251998 |
| Item Type | Pigtailed Connector |
| Size | 1.48 in x 0.78 in x 0.63 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75� C; Minimum Continuous: -40� C w/o impact, -25� with impact. |
| Voltage Rating | 125 |
| Cross Reference Products | PTRA6STR |
