Square D

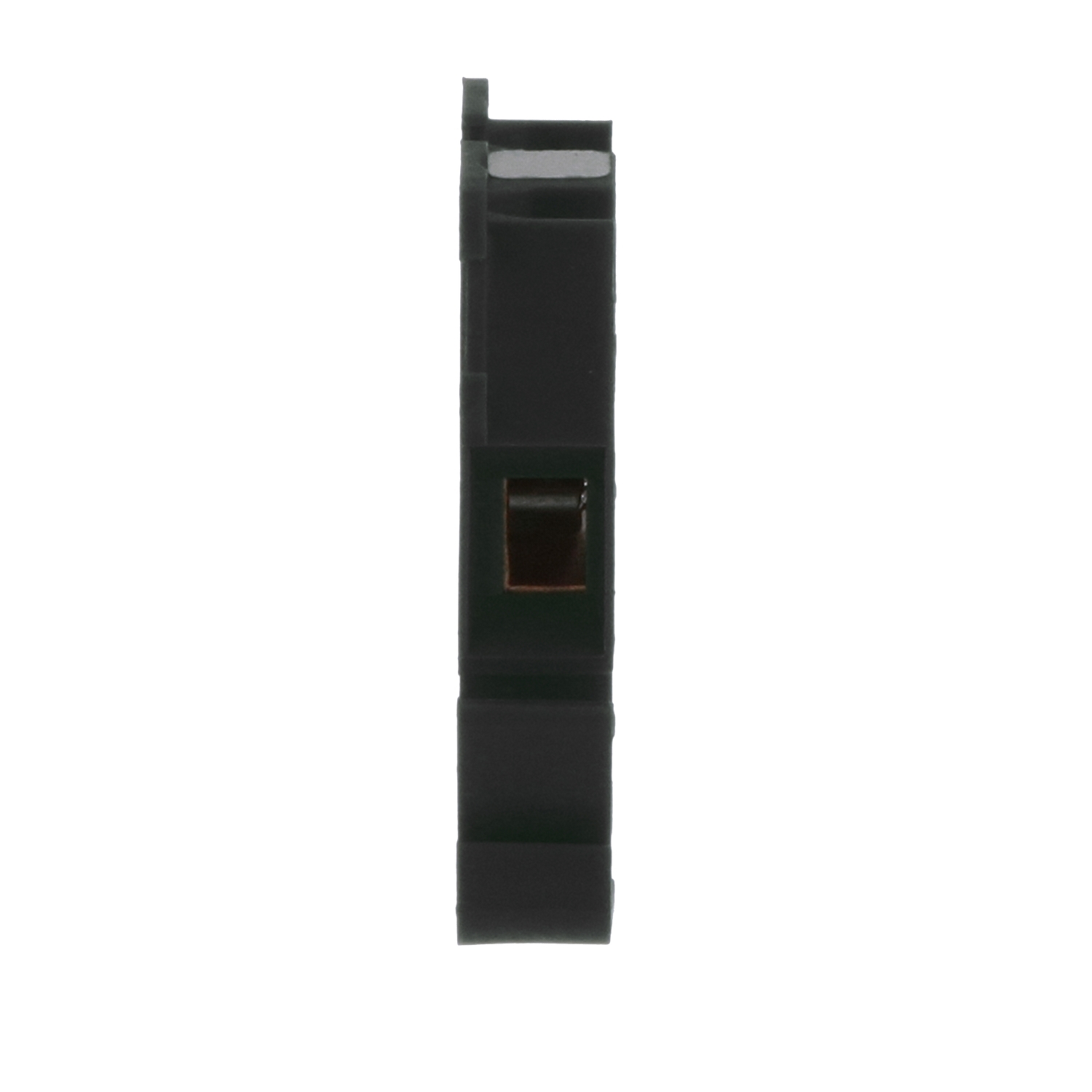

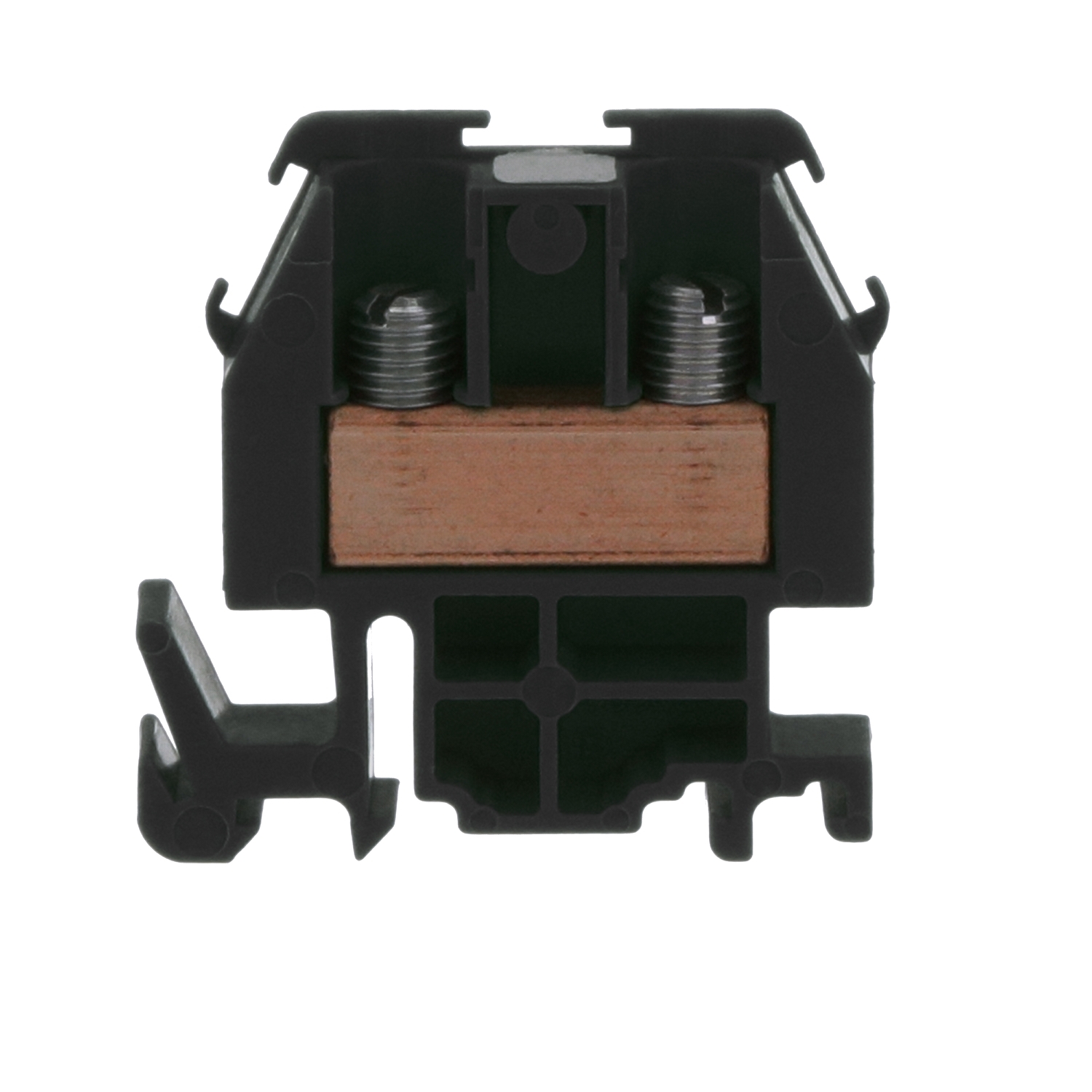

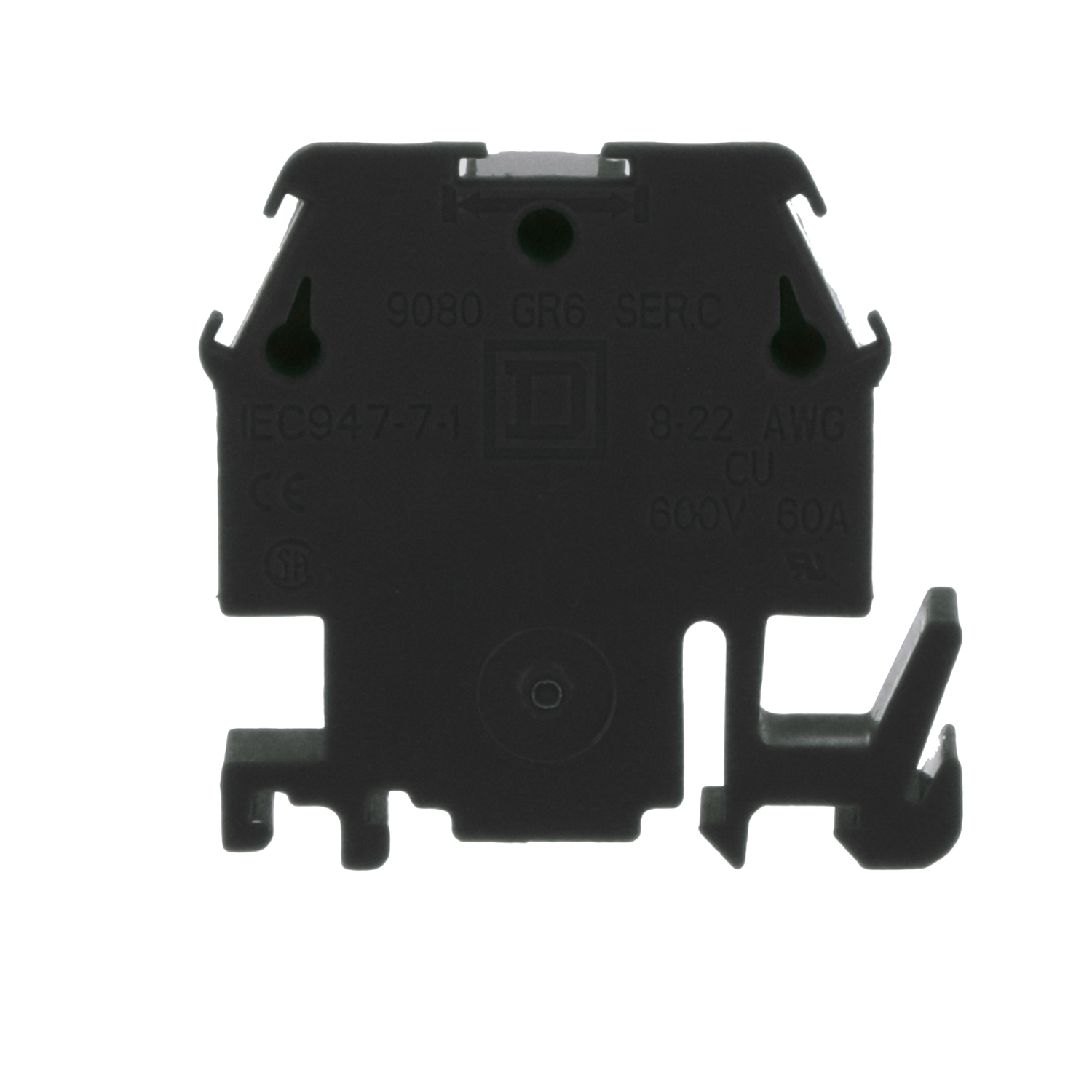

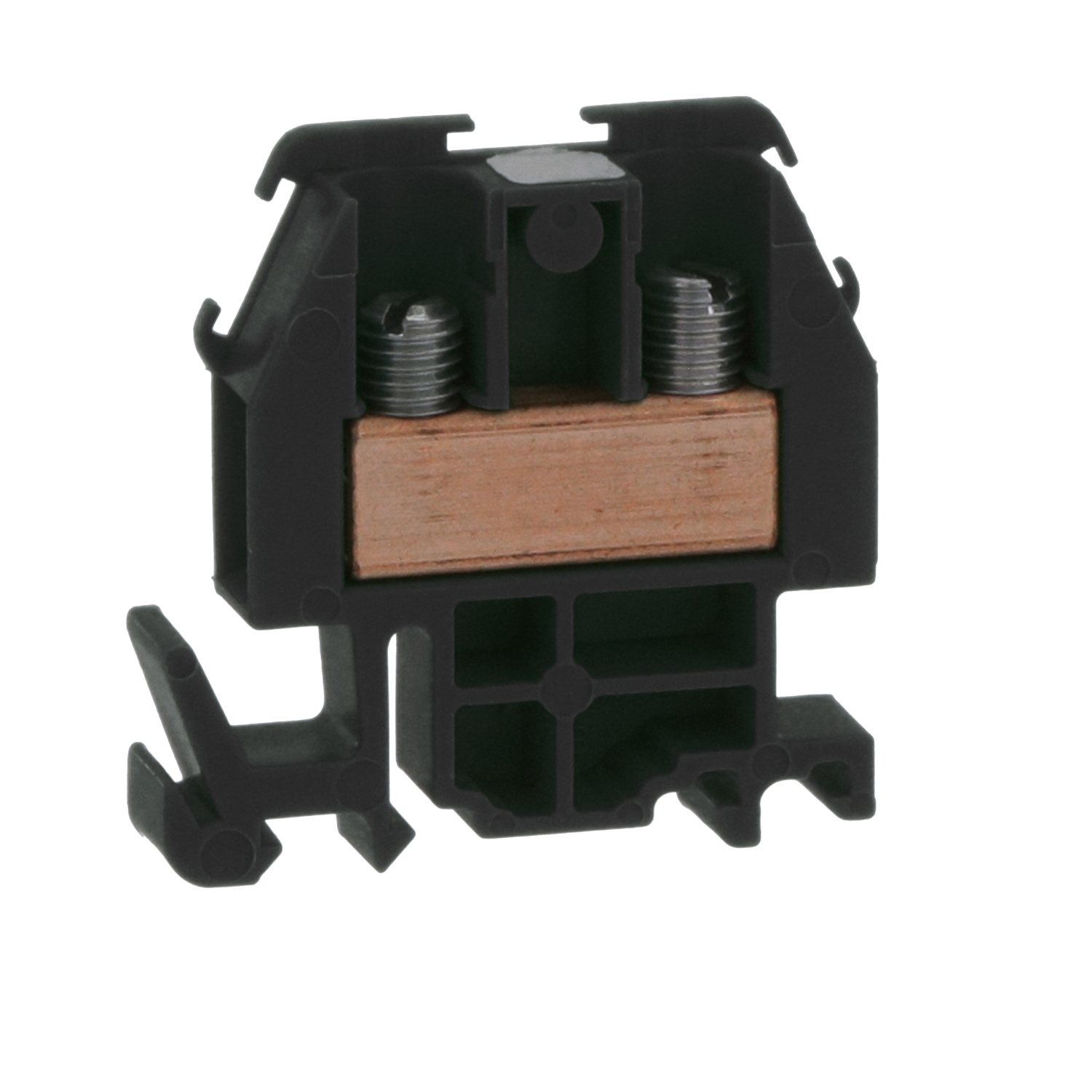

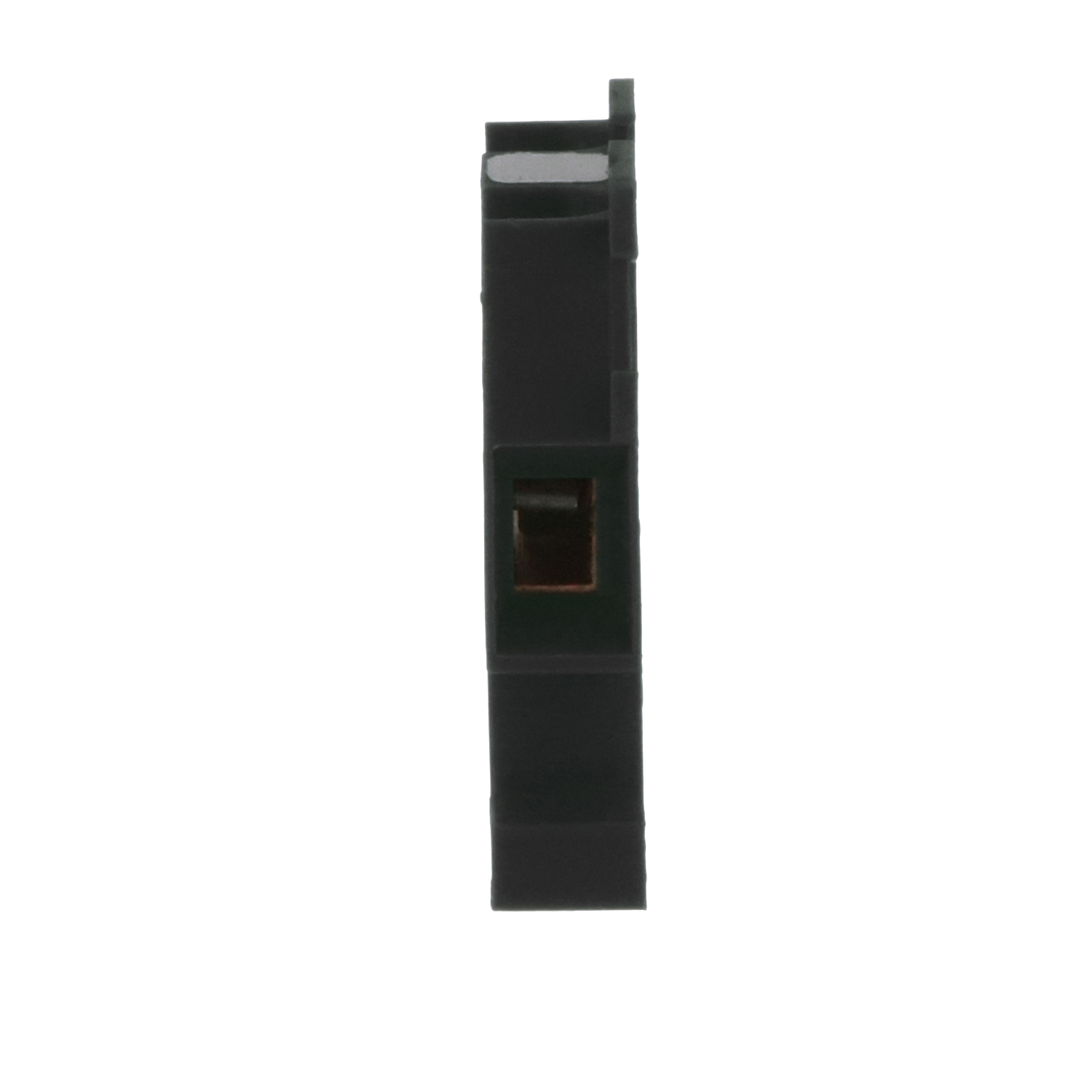

9080GRB6 9080G Standard Terminal Block, 600 V AC/DC, 60 A, 22 to 8 AWG Cu Wire, DIN Rail Mounting

MFR:
Schneider Electric
MFR #:
9080GRB6
UPC:
785901917465
Item #:
17075

Availability

Location Available Qty
Available Available to Order
$4.50 each

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

Manuals and Documentation
Catalog Number 9080GRB6
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372767&lang=en-us
UPC 785901917465
GTIN 00785901917465
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.35 IN
