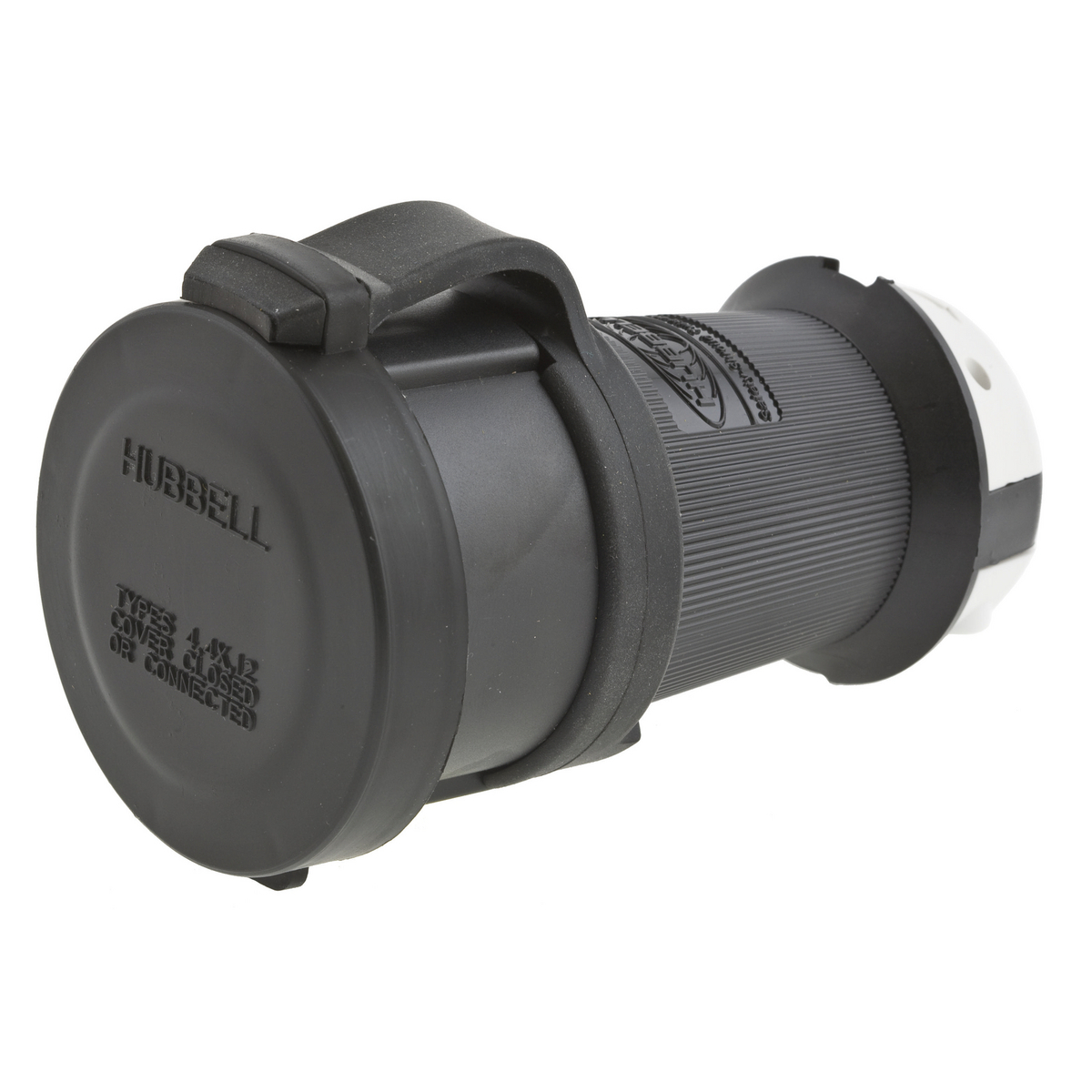

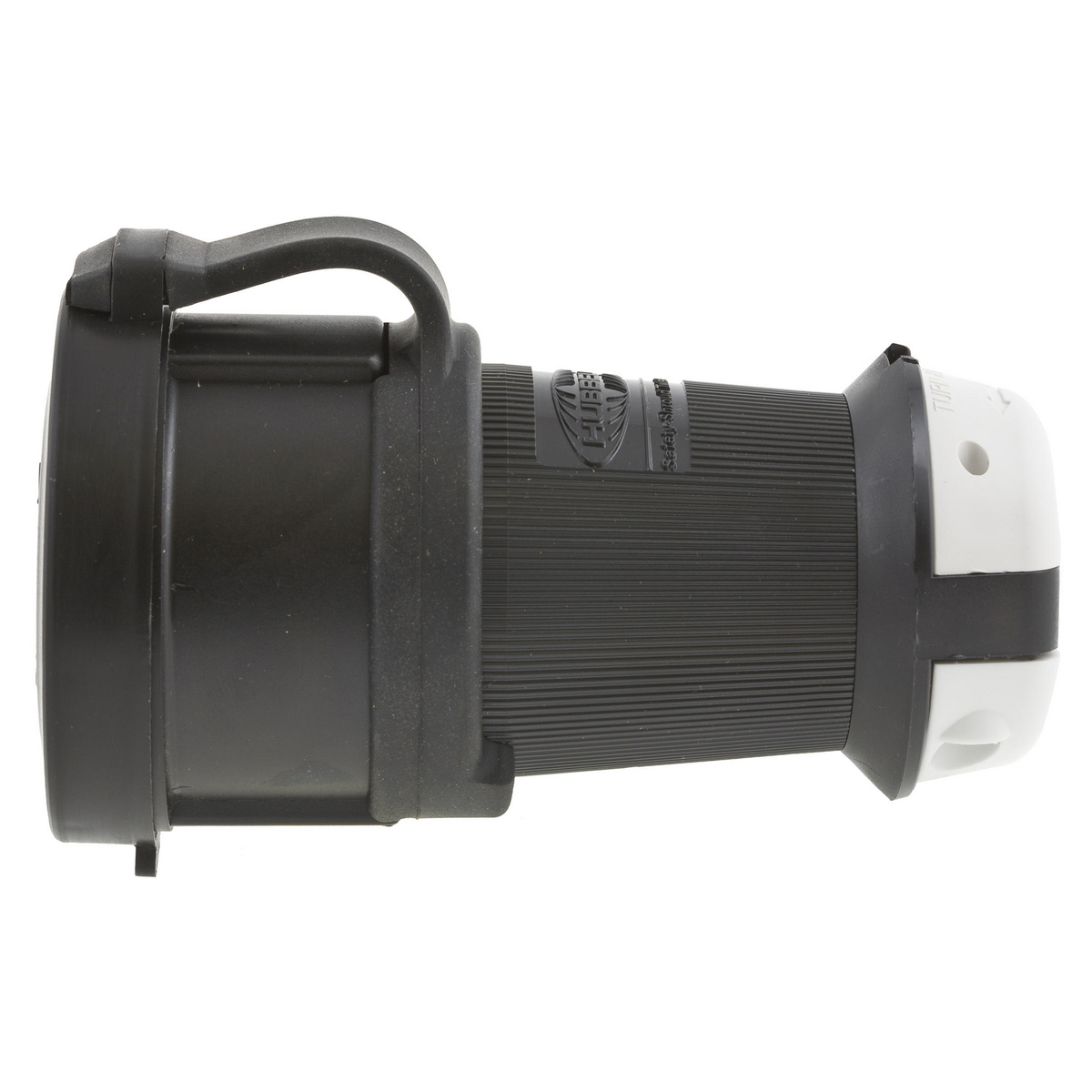

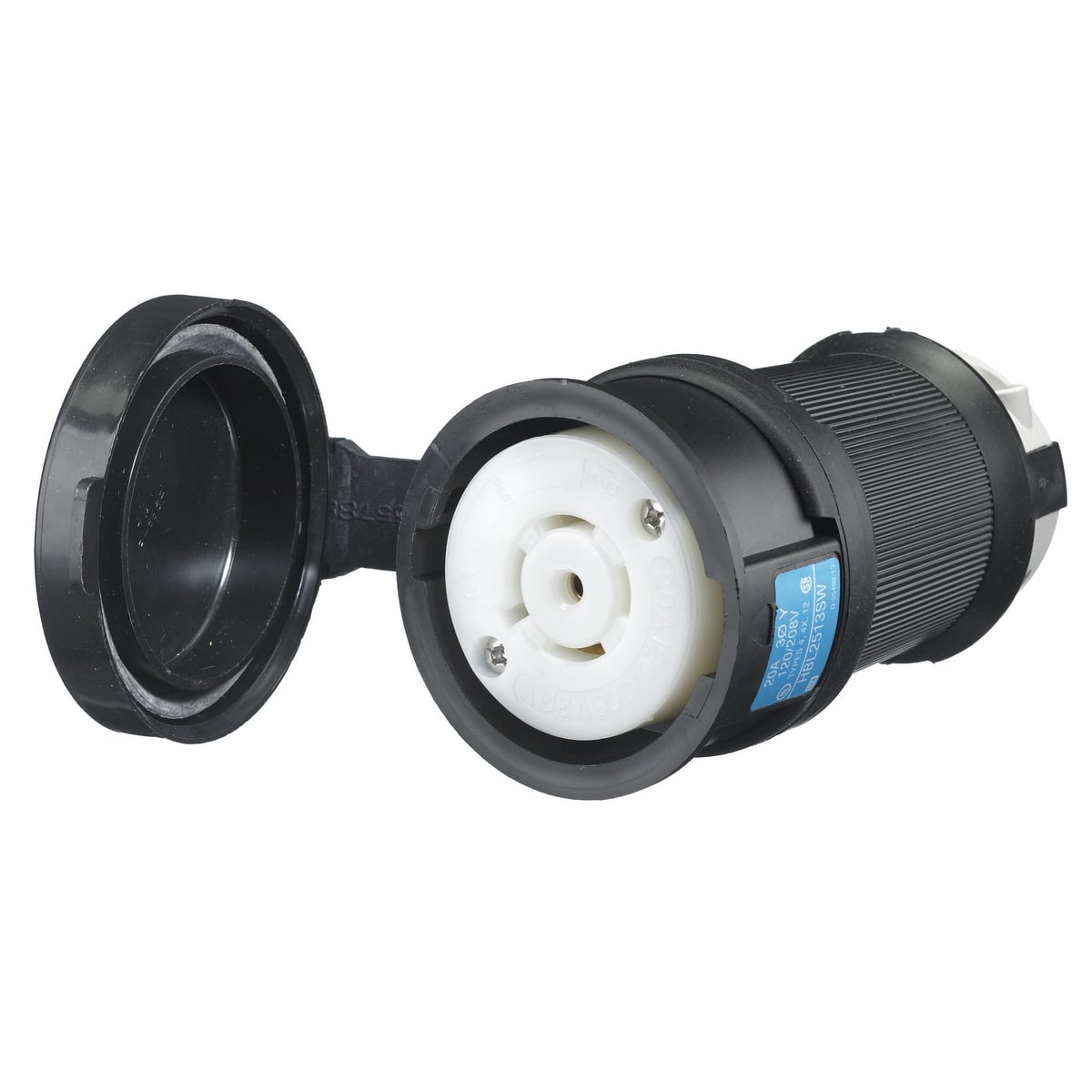

HBL2513SW 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount Female Connector, 120Y/208 V AC, 20 A, 4 Poles, 5 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2513SW
- UPC:
- 783585231549
- Item #:
- 170286
HBL2513SW 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount Female Connector, 120Y/208 V AC, 20 A, 4 Poles, 5 Wires, Black/White
- MFR #:
- HBL2513SW
- UPC:
- 783585231549
- Item #:
- 170286
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$211.47
each
Manuals and Documentation
| Catalog Number | HBL2513SW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | Black; White |
| Conductor Range | #12AWG to #10AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | 1 |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Shrouded Watertight Construction |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| UPC | 783585231549 |
| GTIN | 00783585231549 |
| Item Type | Connector Body |
| Size | 2.75 in x 2.94 in x 4.40 in |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3 Phase WYE 120/208 |
