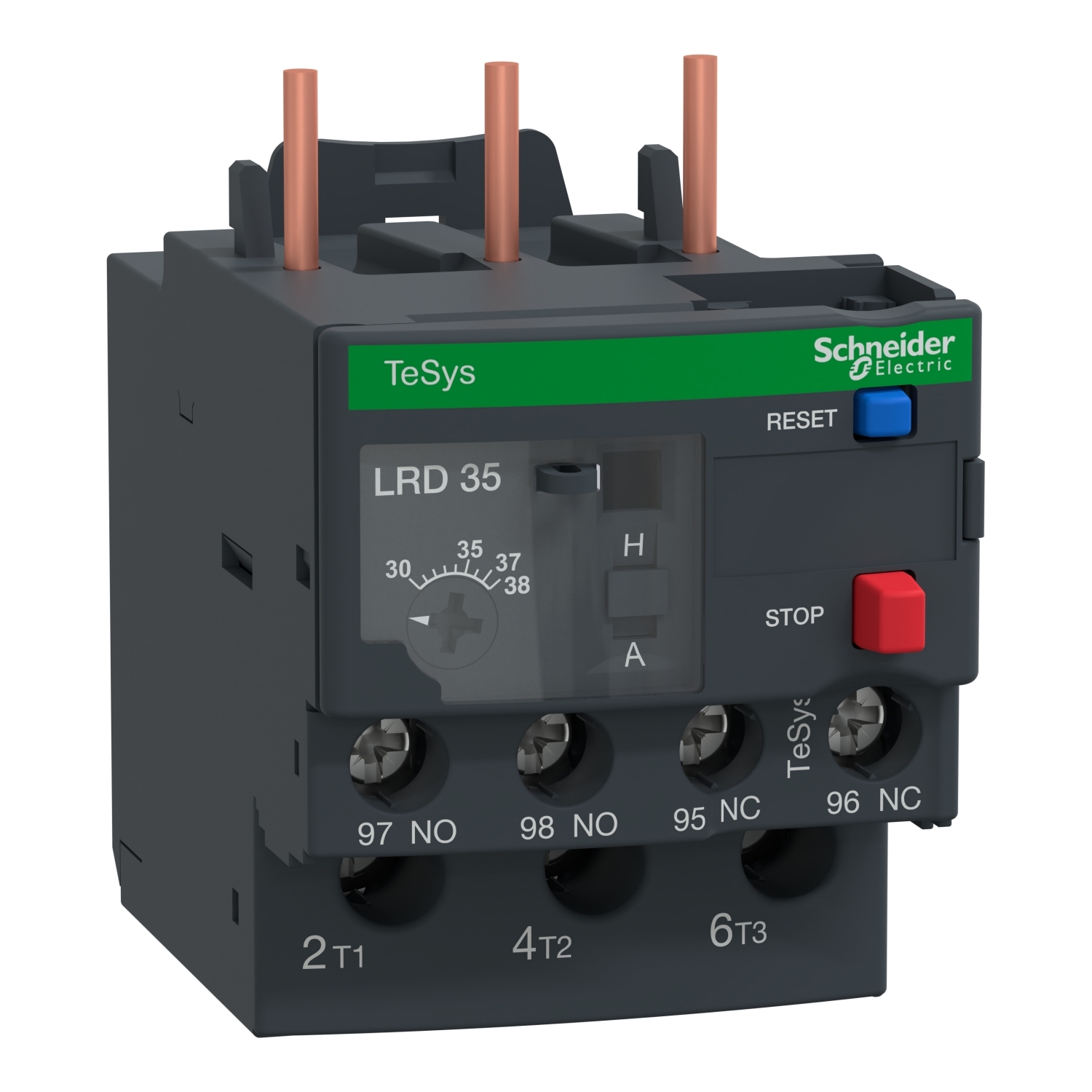

LR3D35 TeSys LRD Bi-Metallic Non-Differential Thermal Overload Relay, 30 to 38 A, 690 V AC V Coil
- MFR:
- Schneider Electric
- MFR #:
- LR3D35
- Item #:
- 169563
LR3D35 TeSys LRD Bi-Metallic Non-Differential Thermal Overload Relay, 30 to 38 A, 690 V AC V Coil
- MFR #:
- LR3D35
- Item #:
- 169563
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
LR3D35 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 15-18.5kW@400V thanks to a thermal range 30-38A , a tripping class 10A, for use with unbalanced loads. LR3D35 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 30-38A and tripping class 10A, it protects unbalanced loads and motors 15-18.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D32 and D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
| Catalog Number | LR3D35 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=639964&lang=en-us |
| GTIN | 03389110347067 |
