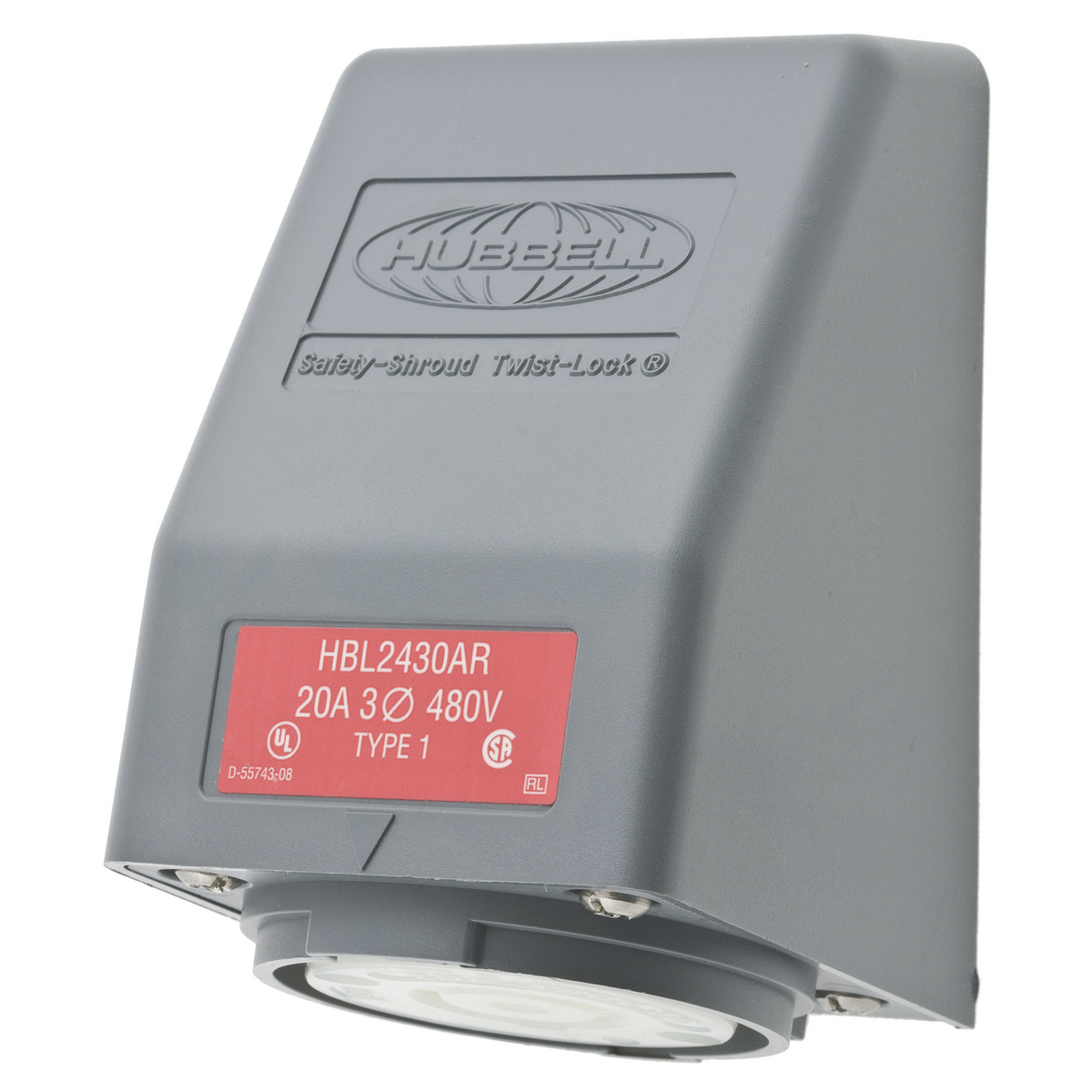

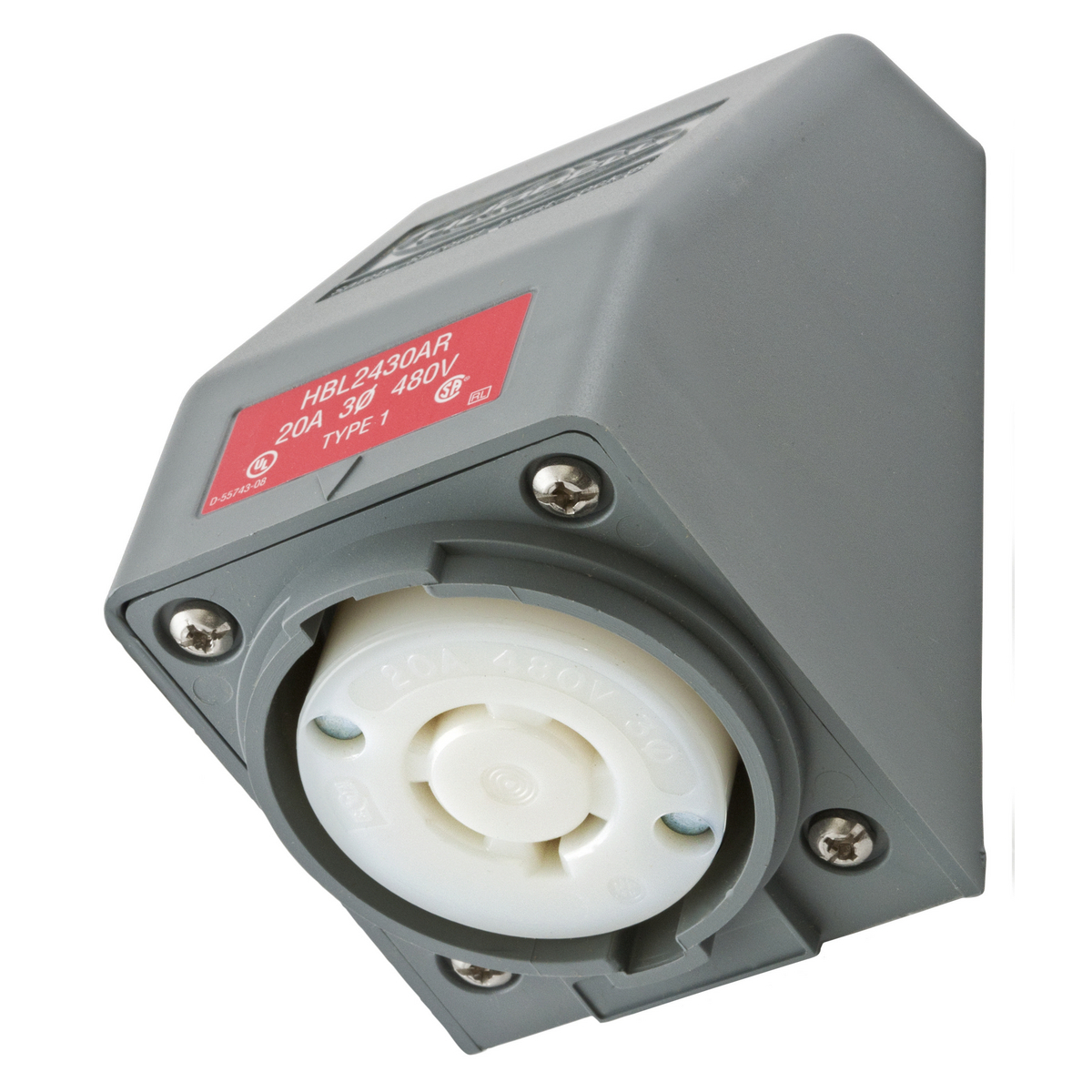

HBL2430AR HBL 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, Gray/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2430AR
- UPC:
- 783585234564
- Item #:
- 169478
HBL2430AR HBL 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, Gray/White
- MFR #:
- HBL2430AR
- UPC:
- 783585234564
- Item #:
- 169478
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$66.38
each
Manuals and Documentation
| Catalog Number | HBL2430AR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial Shrouded |
| Color | Gray;White |
| Connection | Screw Terminal |
| Material | Thermoplastic |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Angled Housing |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585234564 |
| GTIN | 00783585234564 |
| Item Type | Angled Receptacle |
| Size | 4.77 in x 2.85 in x 3.14 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3-Phase Delta 480 |
| Wattage | 9,600 W |
| Wire Size | #16 AWG to #8 AWG |
