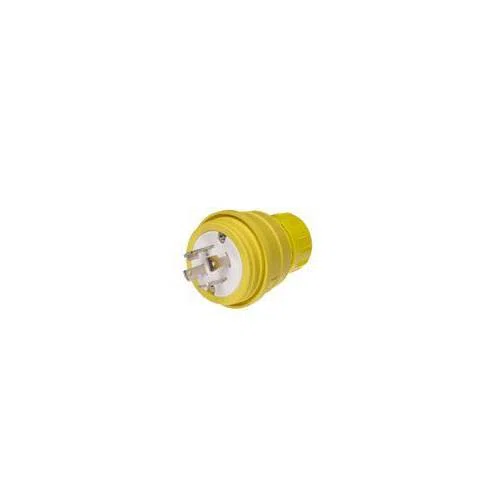

28W75 130147 3-Phase Plug, 250 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Molex
- MFR #:
- 28W75
- UPC:
- 786788712334
- Item #:
- 169450
28W75 130147 3-Phase Plug, 250 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- 28W75
- UPC:
- 786788712334
- Item #:
- 169450
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$117.60
each
Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.
Manuals and Documentation
Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cord without damaging the cord
- Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- NEoTEX® Paracril OZO rubber outer housing and grommet
- Nickel-plated brass plug blades and connector contacts
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Lexan receptacle cover plate and closure caps
- F4 1 in cord grip body size
- Male plug
| Manufacturer Part Number | 28W75 |
| Brand | Woodhead® |
| Manufacturer | Molex |
| UPC | 786788712334 |
| Country Of Origin | MX |
| Amperage Rating | 30 A |
| Color | Yellow |
| Enclosure | NEMA 1/3/4/4X/5/6/6P/12/IP67 |
| Material | Rubber |
| Series | 130147 |
| Temperature Rating | -40 to 75 deg C |
| Type | 3-Phase |
| Voltage Rating | 250 V AC |
| Alternative Part Number | 8843490 | 1301470079 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | CSA LR6837 | NSF/ANSI/3-A 14159-1 | UL E10176 |
| Application | For wet location |
| Cord Diameter | 0.687 to 0.812 in |
| Grade | Industrial |
| Nema Rating | L15-30 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Screw |
