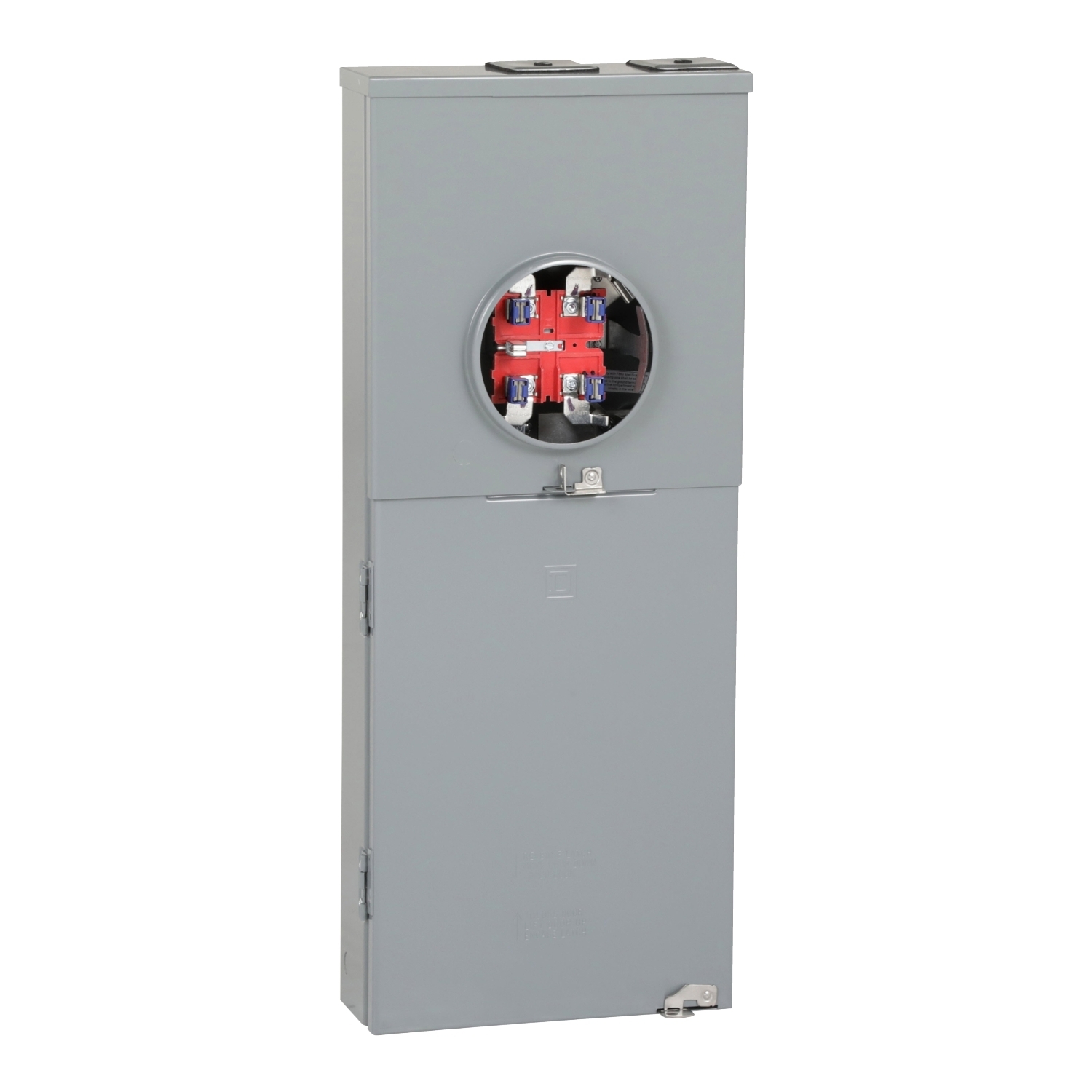

RC816F150CH Homeline Meter Main, CSED, 150 Amp, Ringless, Horn, OH, UG, Surface, max 8 Spaces, 16 Circuits
- MFR:
- Schneider Electric
- MFR #:
- RC816F150CH
- UPC:
- 785901863946
- Item #:
- 168746
RC816F150CH Homeline Meter Main, CSED, 150 Amp, Ringless, Horn, OH, UG, Surface, max 8 Spaces, 16 Circuits
- MFR #:
- RC816F150CH
- UPC:
- 785901863946
- Item #:
- 168746
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Square D Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a Homeline ringless type with horn bypass, and combination overhead/underground feed. With a current rating of 150A, this product has a short circuit current rating of 22kA. Single main service disconnects option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
Manuals and Documentation
| Catalog Number | RC816F150CH |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Bypass Type | Horn |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361731&lang=en-us |
| UPC | 785901863946 |
| GTIN | 00785901863946 |
| Width | 14.37 |
| Width UOM | Inch |
| Height | 35.13 |
| Height UOM | Inch |
| Depth | 5.07 IN |
