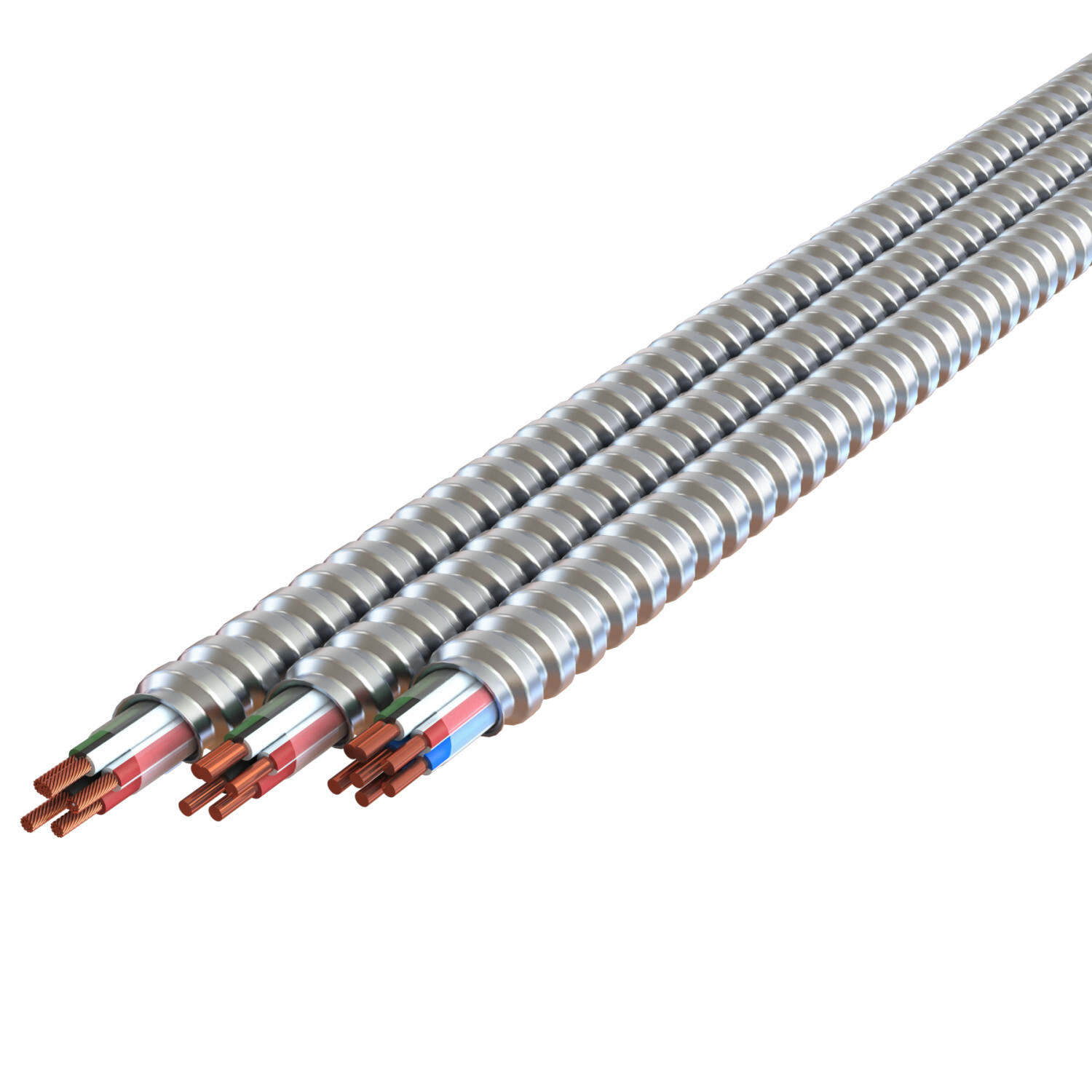

10-3/10-3/10-1 BK RD BE 3WE GN MC Plus Lite, Plain Interlocked Aluminum Armor , 250' Coil, Type MC - Neutral Per Phase
MFR: ATKORE - AFC CABLE
MFR #: 3608-42-700
UPC: 077680347114
Item #: 1686404
10-3/10-3/10-1 BK RD BE 3WE GN MC Plus Lite, Plain Interlocked Aluminum Armor , 250' Coil, Type MC - Neutral Per Phase
MFR #: 3608-42-700
UPC: 077680347114
Item #: 1686404
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.
Manuals and Documentation
- Catalog Number
- 3608-42-700
- Manufacturer
- ATKORE - AFC CABLE
- Brand
- AFC Cable Systems
- Sub Brand
- MC Plus
- Country of Origin
- United States
- Made in USA
- Yes
- Armour
- Interlocked Aluminum Strip
- Bend Radius
- 10.695
- Color
- Plain
- Conductor Material
- Copper
- Material
- Aluminum
- Number of Conductors
- 7
- UPC
- 077680347114
- GTIN
- 00077680347114
- Length
- 250
- Length UOM
- Foot
- Weight
- 0.323 LB/FT
- Inside Diameter
- 0.513 IN
- Outside Diameter
- 0.713 IN
- Temperature Rating
- 194
- Trade Size
- 10-6
- Voltage Rating
- 600V
