XS8C2A4PCM12 OsiSense XS XS8 Series Fixed Proximity Sensor, Inductive, PNP Output, 1NO-1NC Contact, 12 to 48 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS8C2A4PCM12
- UPC:
- 785901931737
- Item #:
- 168615
XS8C2A4PCM12 OsiSense XS XS8 Series Fixed Proximity Sensor, Inductive, PNP Output, 1NO-1NC Contact, 12 to 48 V DC
- MFR #:
- XS8C2A4PCM12
- UPC:
- 785901931737
- Item #:
- 168615
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

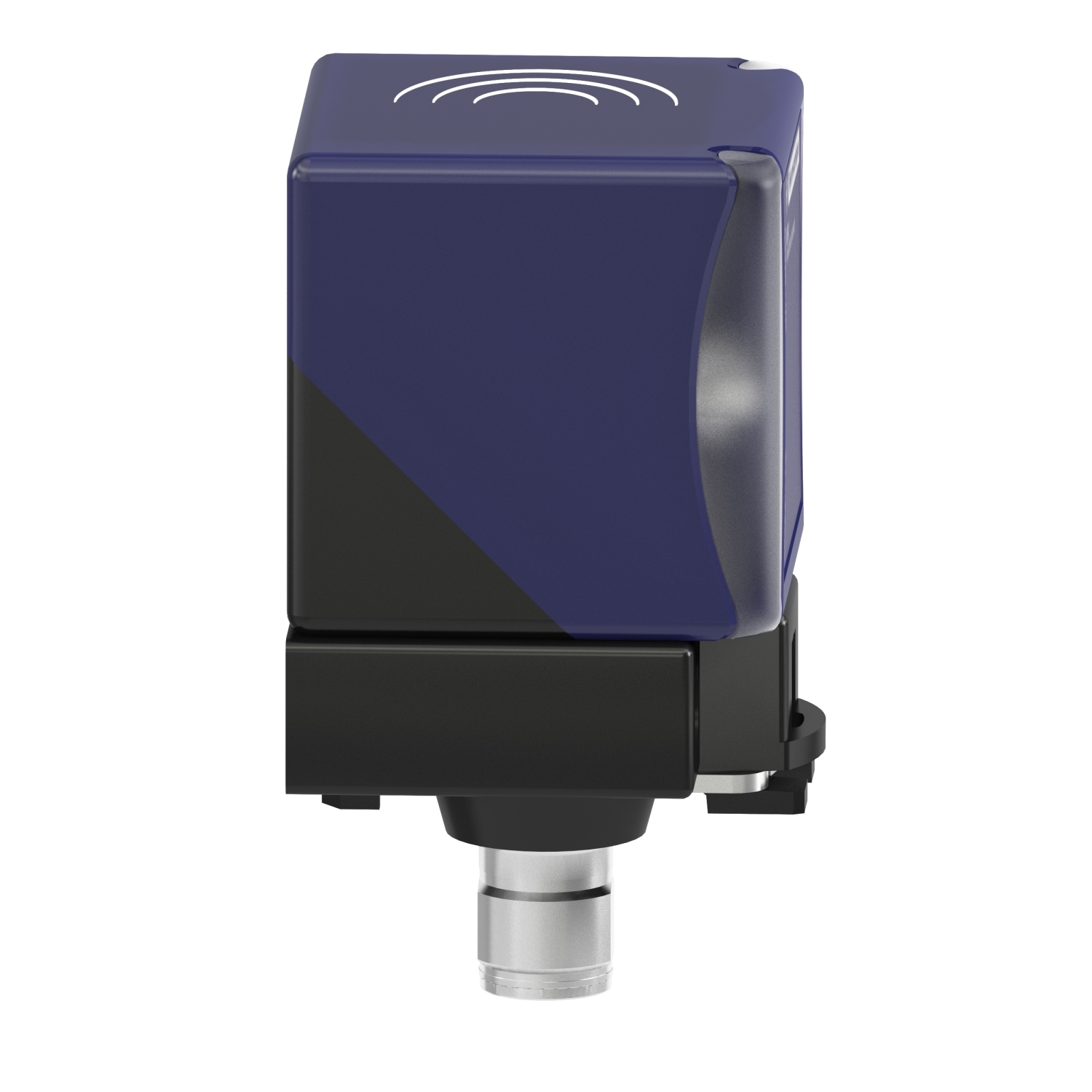

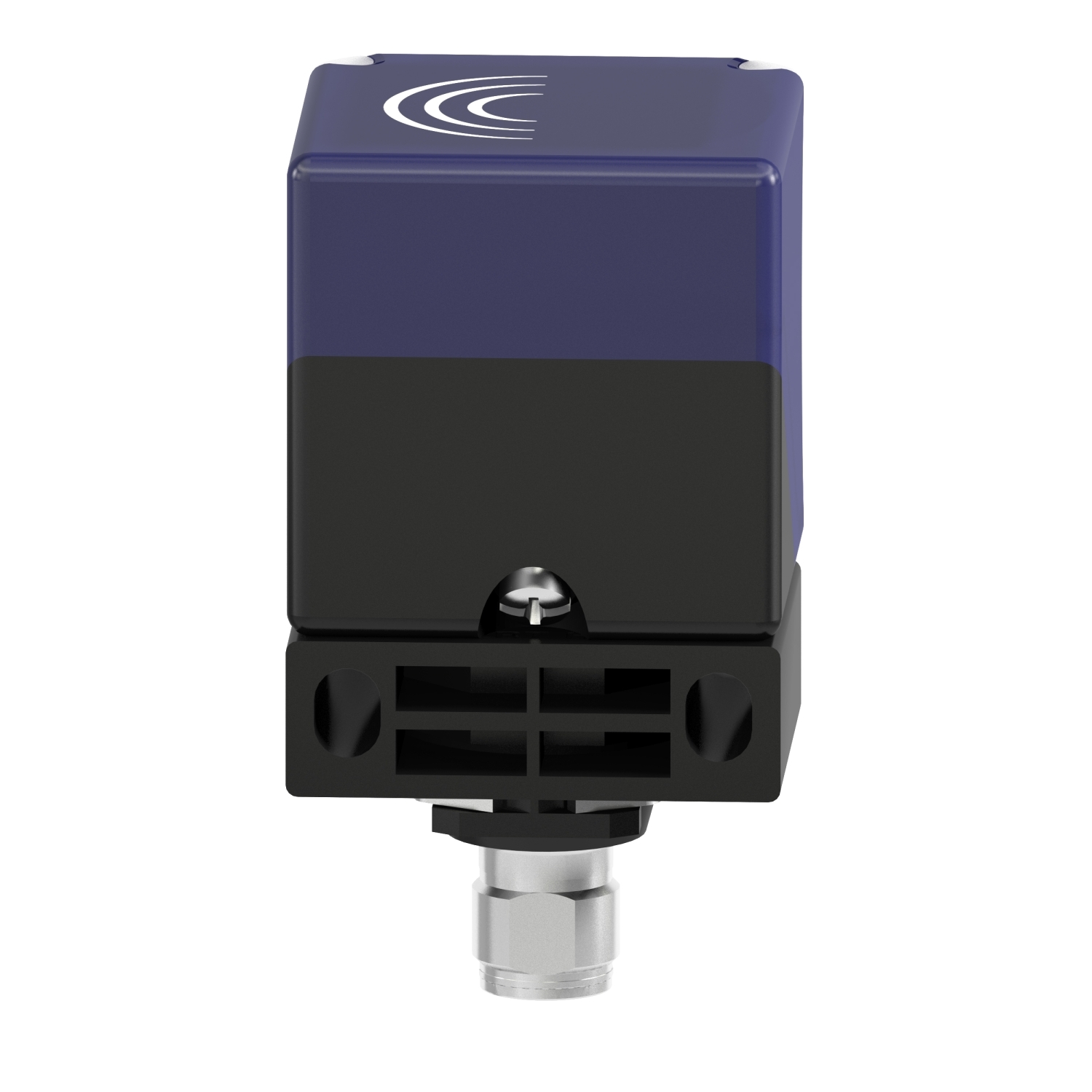

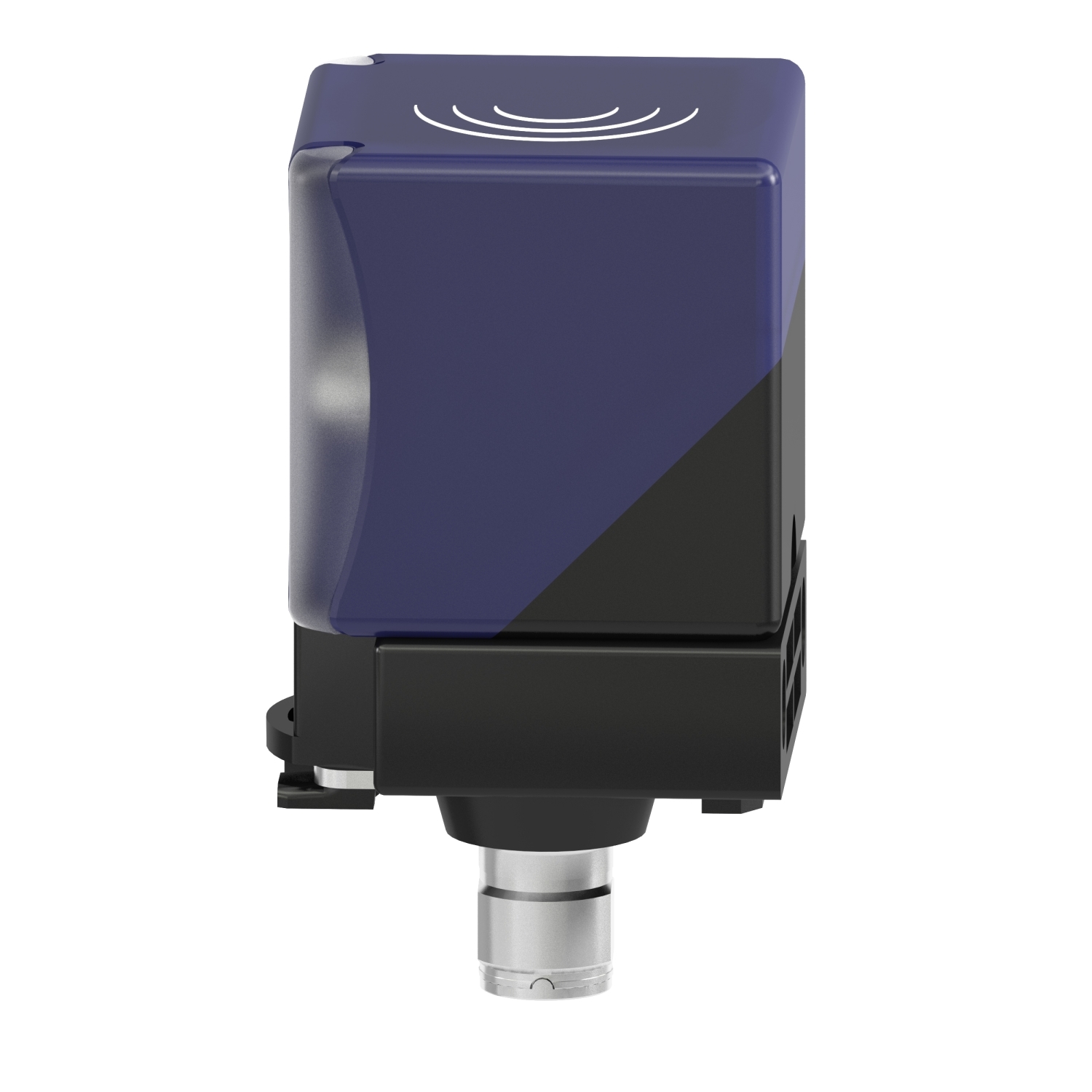

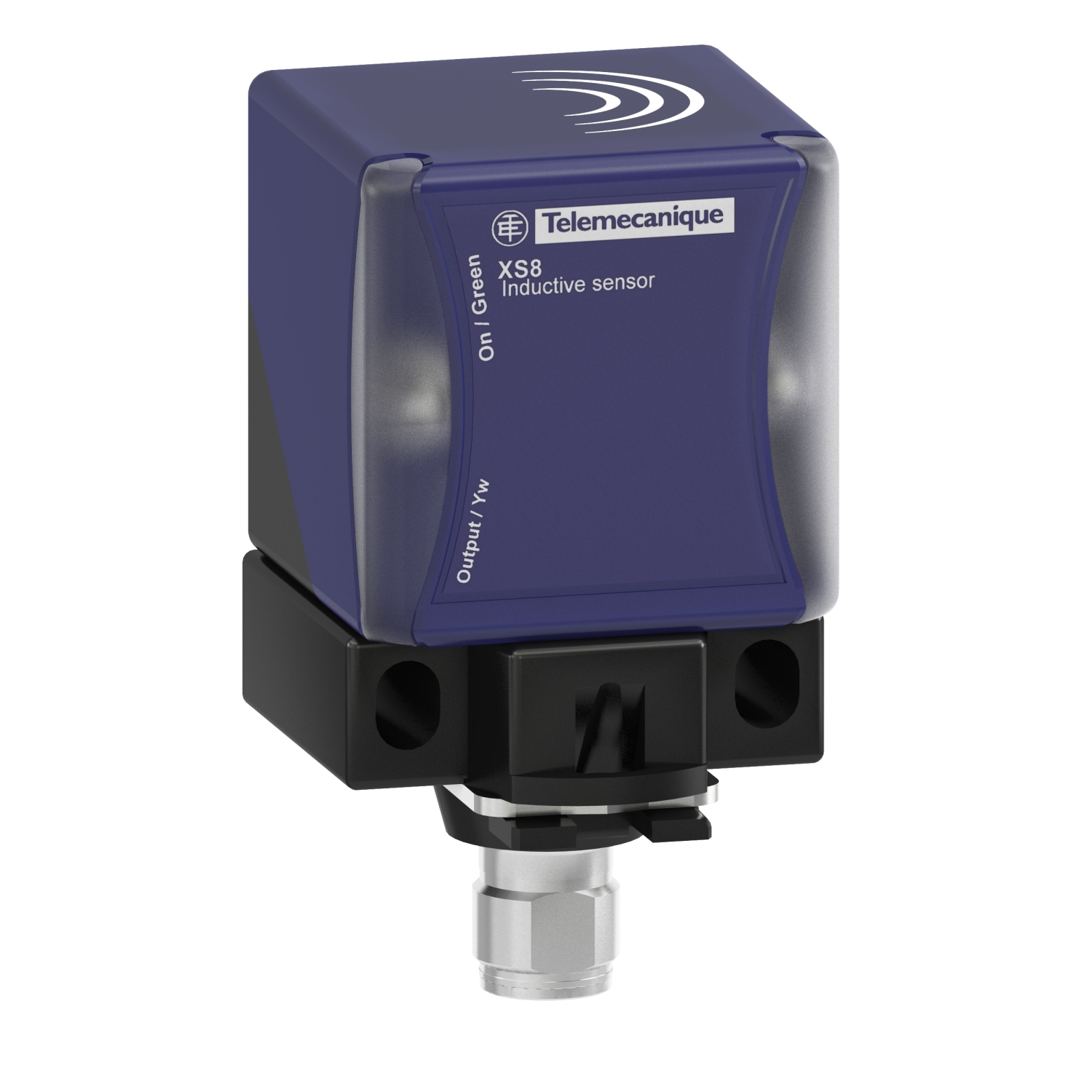

This XS turret head (40 x 40 x 70 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It has a standard M12 connector, compatible with all existing market sensor cabling. It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Manuals and Documentation
| Catalog Number | XS8C2A4PCM12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Mobile equipment |
| Connector | Male connector M12, 4 pins |
| Enclosure | PBT |
| Indicator | Supply on 1 LED green);output state 1 LED yellow) |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 40 MM,> 0.59...1.57 IN (> 15...40 MM) |
| Sensor | 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | PLASTIC |
| Standard | IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 12...48 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150037035&lang=en-us |
| UPC | 785901931737 |
| GTIN | 03389119057974 |
| Item Type | Inductive proximity sensor;Form 40 x 40 x 70 |
| Operating Temperature | -25-70 A Degrees C |
